AUX air conditioner service manual
swing, the swing angle will never change；
⑥After turning off the air-conditioner and stopping the running of the indoor fan, the air door shut off
automatically;
⑦Enter into the automatic mode by pressing the Emergency button, the air door opens after the
setting mode of the system starts. Before the starting of the setting mode, the air door parks at the
datum mark of cooling mode.

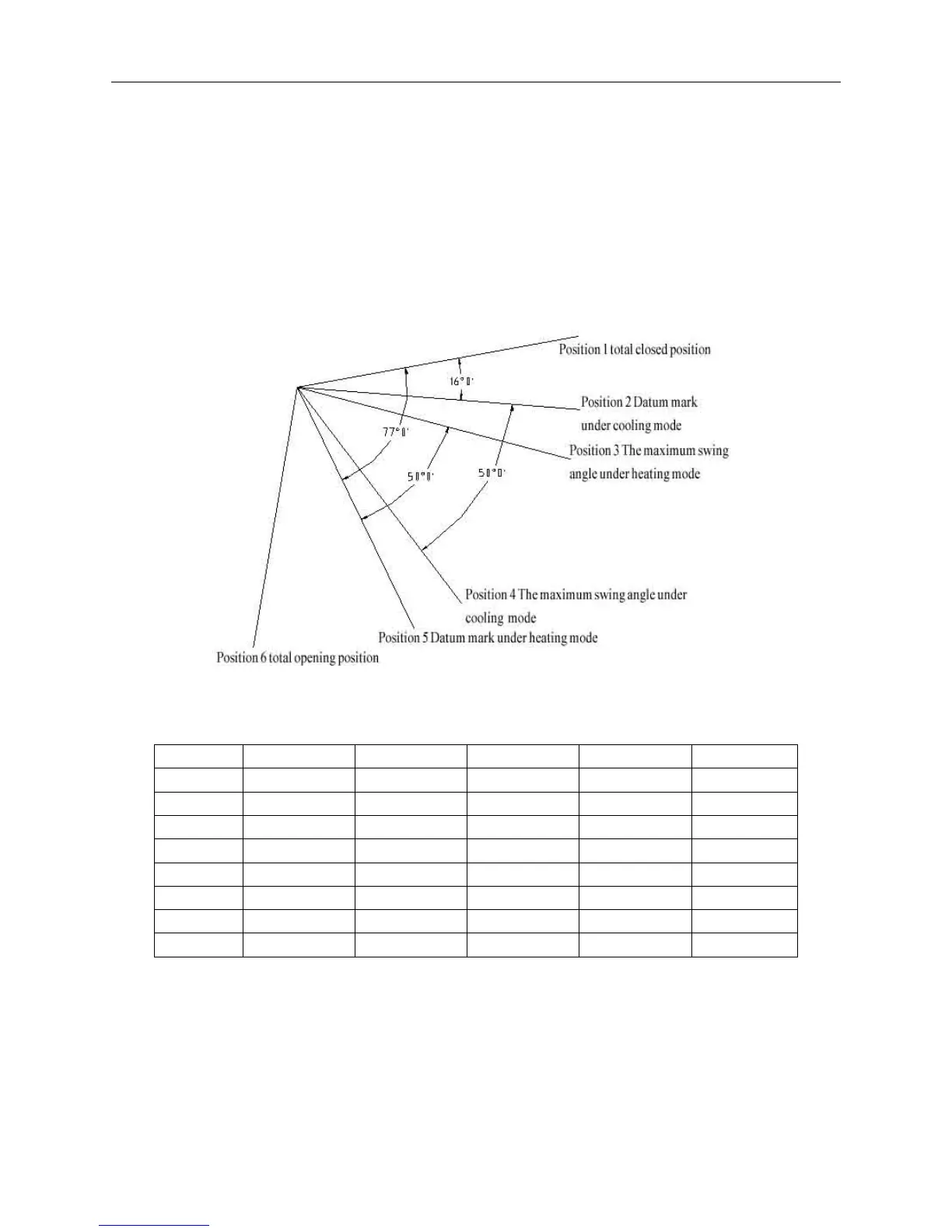

The below picture shows the swing angle of E type:
Picture 3
⒂The wind speed selection function
The resistance value of the wind speed option is as below:
High Fan R24 Middle Fan R28 Low Fan R26
1330 1.2K 1250 1.2K 1100 1.2K
1280 3K 1200 3K 1050 3K
1230 5.1K 1150 5.1K 1000 5.1K
1180 8.2K 1100 8.2K 950 8.2K
1130 12K 1050 12K 900 12K
1080 20K 1000 20K 850 20K
1030 36K 950 36K 800 36K
980 82K 900 82K 750 82K
Note: The mute wind speed under heating mode is 850r/min. and 800r/min for non-heating
mode. The breeze speed is 650r/min.
The controller added the function of high efficient wind speed, which bases on the previous strong fan
plus 100r/min.
⒃Optional functions
The below functions’ program are already write into the Main chip of the PCB and to be performed if
being equipped with the corresponding hardware. For example, the “Auto-restart” function shall be
41
