AUX air conditioner service manual
compression impact to the compressor.
Heat exchanger
he condenser are called heat exchanger. The evaporator gasify and evaporates the
he indoor and outdoor heat exchangers are in the configuration of wing coil type mostly. For
The evaporator and t
liquid refrigerant so as to absorb the heat from outside; on the contrary, the condenser releases the heat
to outside so as to low down the temperature of the gas refrigerant and liquefy it. To Cooling only
model air-conditioner, the indoor heat exchanger is evaporator and the outdoor heat exchanger is
condenser. There are two sets of heat exchanger configured in the Heat pump air-conditioner, one is
indoor type, and the other one is outdoor type, both of them are with different function because of the
different direction of their flowing circulations. During cooling mode, the indoor heat exchanger acts
as the evaporator and the outdoor heat exchanger acts as the condenser; during heating mode, indoor
heat exchanger acts as the condenser and the outdoor heat exchanger acts as the evaporator.
T

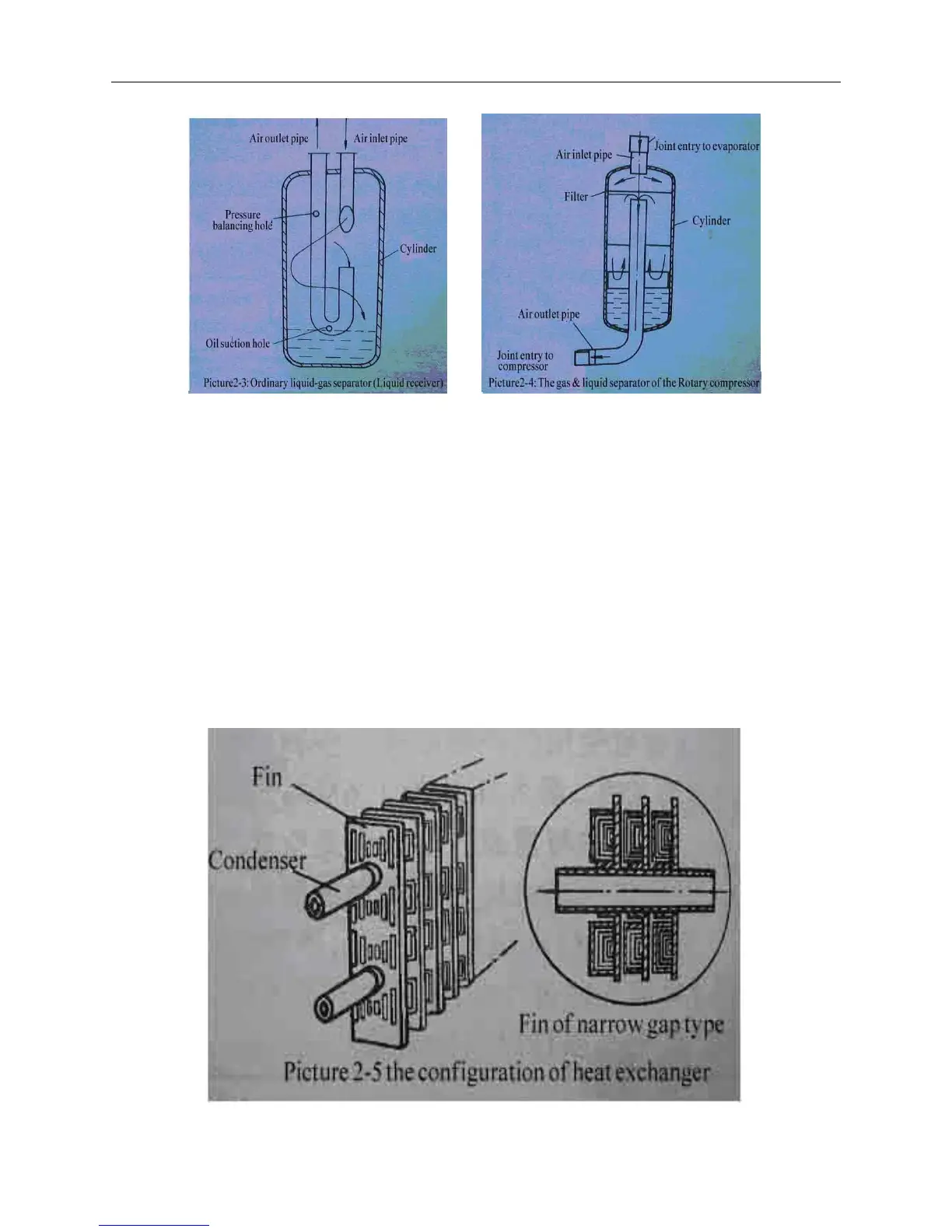

promoting the efficiency of heat exchange, the patches of aluminum alloy wings are usually punched
in kinds of shapes so as to enlarge the heat exchange area, for example of Picture 2-5.
20
