refrigerant’s flow route, and the one-way valve is in close status.
It’s not reliable to rely on the electromagnetic reversing valve only for controlling the flow direction
of the refrigerant due to great disparity existing in the working conditions between the cooling and
heating modes of the heat pump air conditioner. Hence, the one-way valve is always applied in the
heat pump air-conditioner in order to switch the refrigerant’s flow directions safely and effectively as

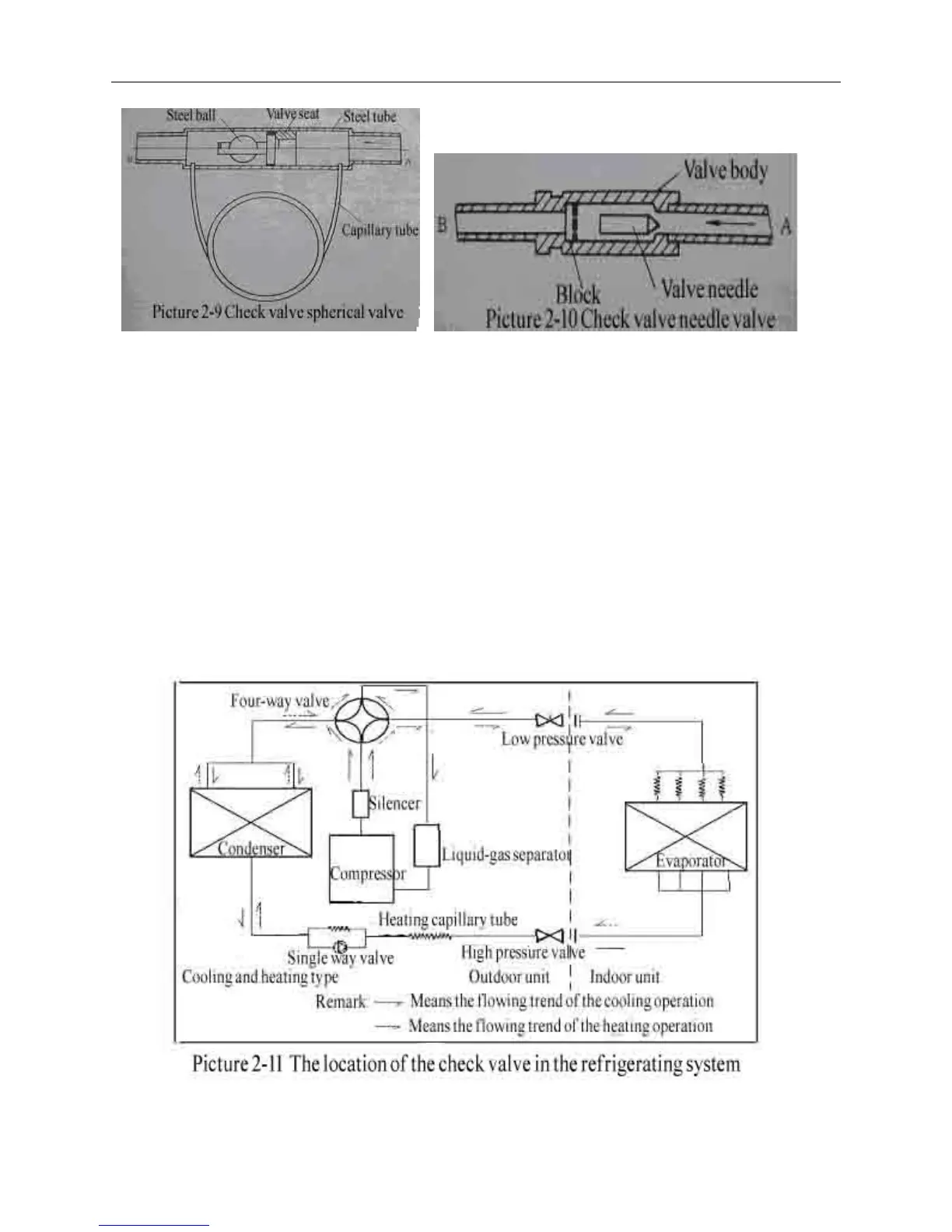

shown in picture 2-11：
In the process of cooling cycle, the difference between the high pressure and the low pressure is small,
the main capillary tube is throttling component, and the auxiliary capillary is short circuited by the
check valve; In heating cycle, the check valve in parallel connection with the auxiliary capillary tubes
is cut off, the refrigerant will flow through the auxiliary capillary, then the throttling components are
the combination of the main capillary tubes and the auxiliary capillary tubes so as to strengthen the
resistance of the throttling component, enlarge the difference between the high pressure and low
pressure of the cycle, reduce the refrigerant temperature of the outdoor heat-exchanger for obtaining
more quantity of heat from outside and achieving the heating purpose.
