IFD500 Series Pilot Guide
Map Subsystem 4-35

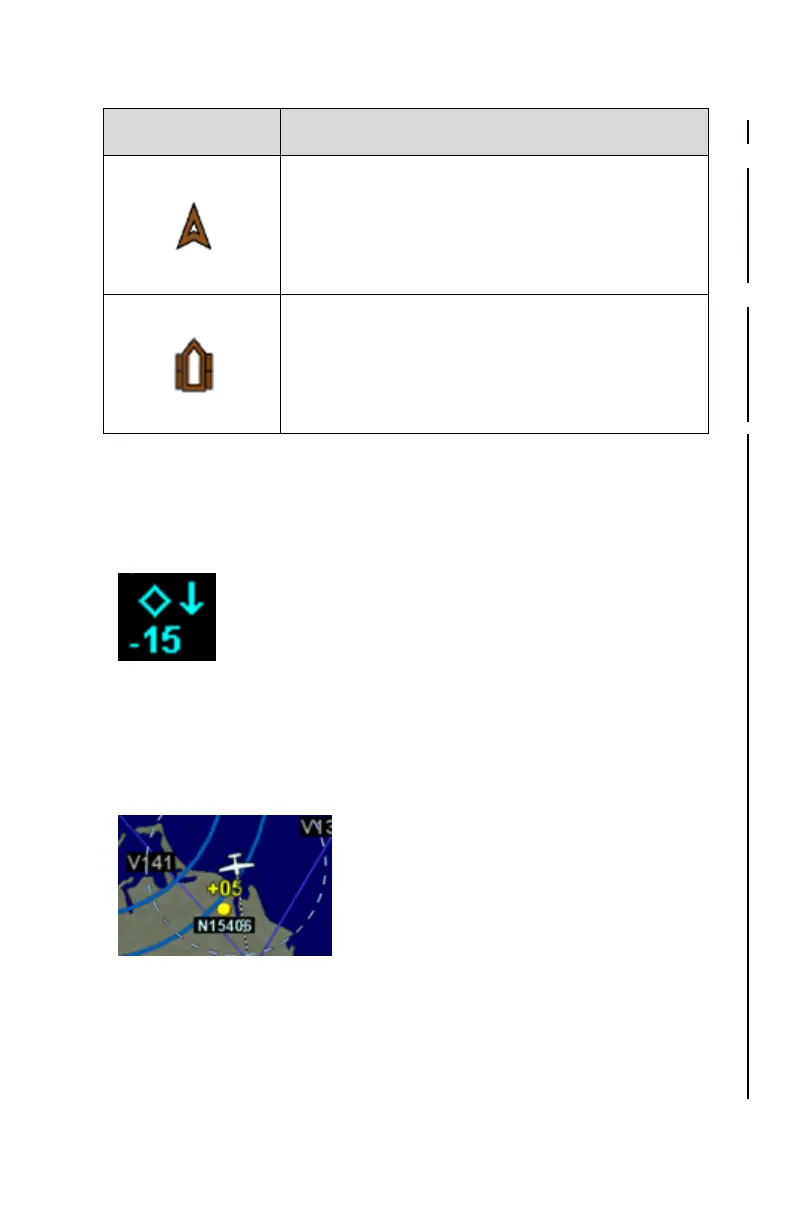

On-ground traffic (directional)
Traffic reporting an on-ground state (hollow
brown arrowhead).
Ground vehicle (directional)
Traffic identifying as a ground vehicle (hollow
pointed brown rectangle with four wheels)
Additional information is displayed adjacent to the traffic symbol to
indicate relative altitude, in hundreds of feet, and vertical trend.
Additional Traffic Information
The Aircraft ID (tail number, call sign, or squawk code) may also be
displayed adjacent to the traffic symbol on the Map display when it is
available from the traffic sensor.
Aircraft ID Depiction
TIS-A Directional Traffic Symbols
TIS-A Directional Traffic symbols are identical to the Basic Symbols
for TA, PA, and Other traffic except that a 45° cardinal track pointer
is added to the symbol pointing in the direction of travel. TIS-A track
