6.1.38 Removing the Ultrasonic Receiver from the Bottom Base
1. Remove the CCD Assembly as described in the preceding section 6.1.15.

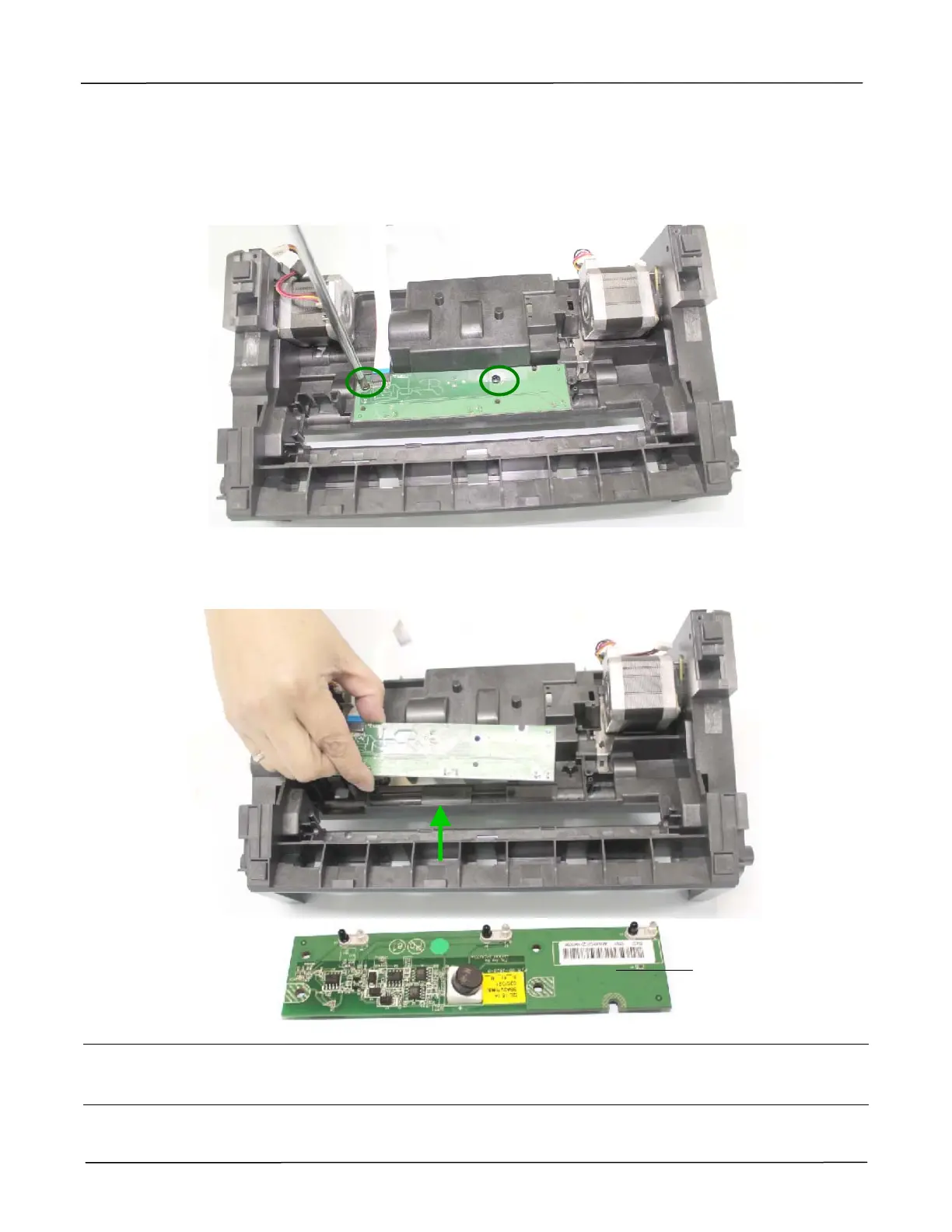

2. Remove 2 fixing screws on the ultrasonic receiver, as indicated below:
(Torque：6±0.5Kgf.cm / Screw Type: +B-H, TAP-2, M3x8 / PN: 077-0802-0)
3. Remove the ultrasonic receiver from the bottom base.
Reassembling:
While connecting the cable of the ultrasonic receiver, please refer to the cable connection drawing
described in the preceding section 3.2.2.
Ultrasonic Receiver
