Avision AD280 - Removing the Bottom Cover

6-73
6.1.36 Removing the Bottom Cover
1. Remove the Left/Right Covers as described in the preceding section 6.1.9.

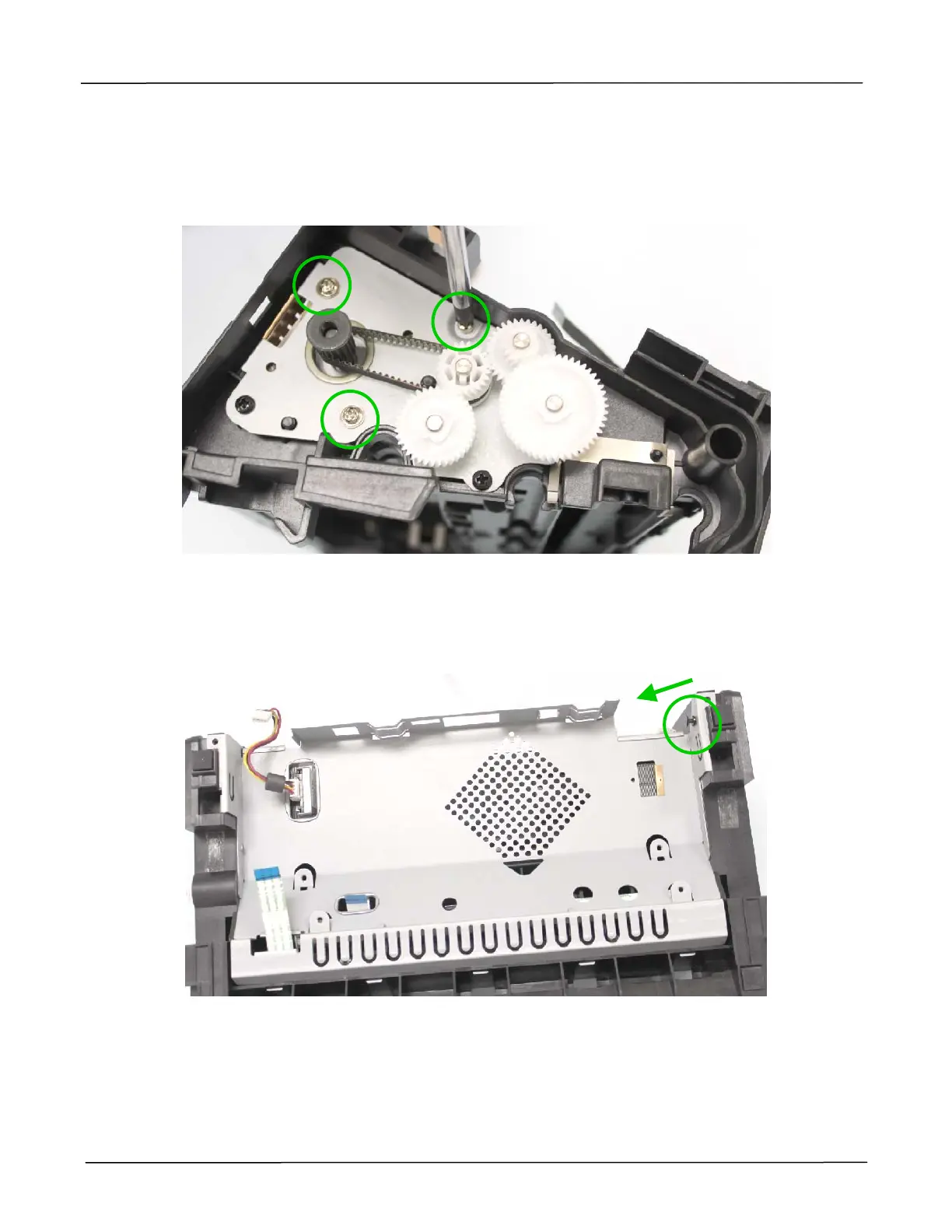

2. Remove 3 fixing screws on the right side of the bottom base, as indicated below:
a：(Torque：6±0.5Kgf.cm / Screw Type: +R-H, M3x6 / PN: 077-0603-0)
b：(Torque：6±0.5Kgf.cm / Screw Type: +P-H, M3x10 / PN: 077-1001-0)
3. Remove the bush on the right side of the bottom base, as indicated below:
a
b
a
