6-34
6.1.19 Removing the Idle Roller/Metal Cover/Spring from the Upper Base
1. Remove the Upper base and Bottom Base as described in the preceding section 6.1.10.

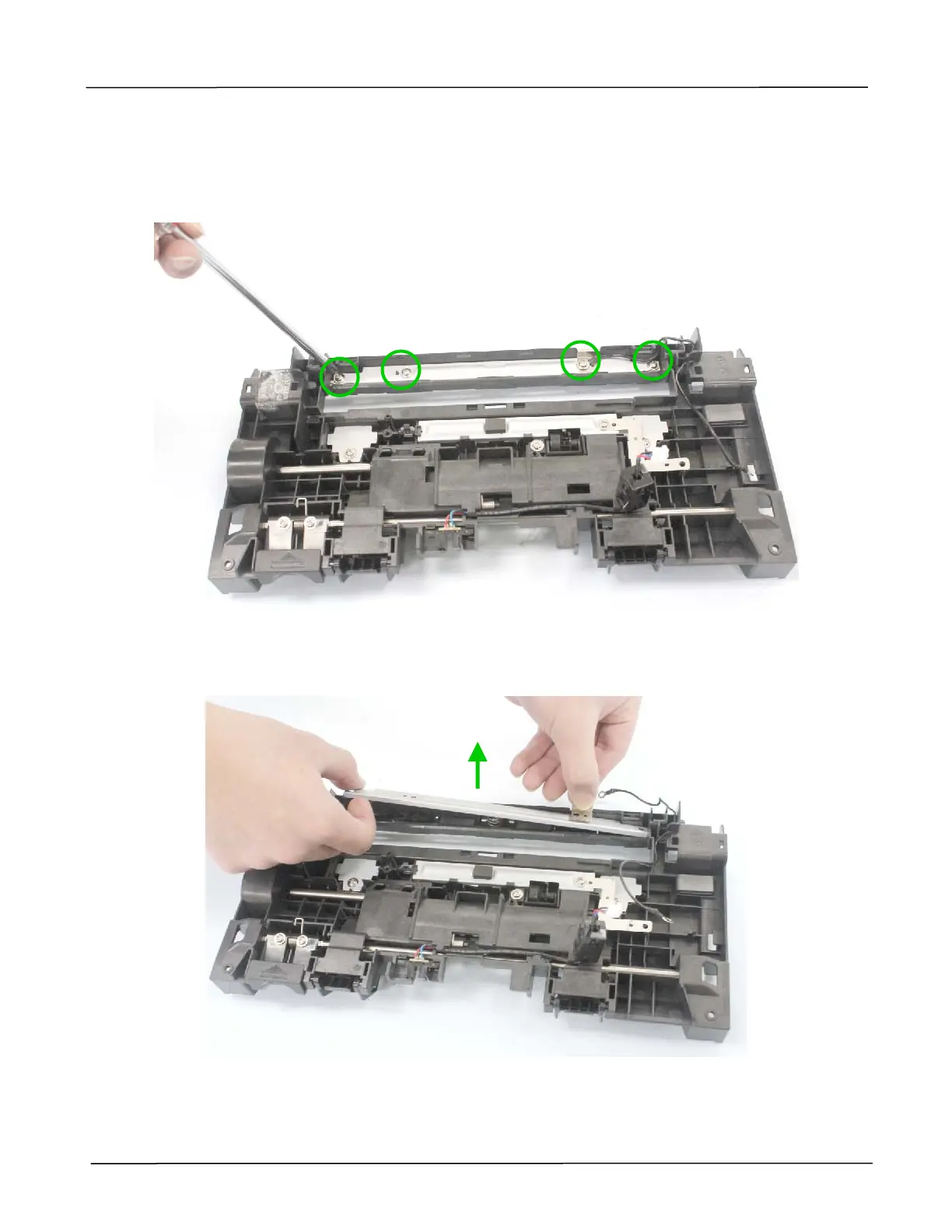

2. Remove the 4 fixing screws on the metal cover from the upper base, as indicated below:
(Torque：6±0.5Kgf.cm / Screw Type: M3x8 / PN: 077-8023-0)
3. Remove the metal cover from the upper base, as indicated below:
To Next Page
