6.1.40 Removing the Motor from the Bottom Base
1. Remove the Left/Right Covers as described in the preceding section 6.1.9.

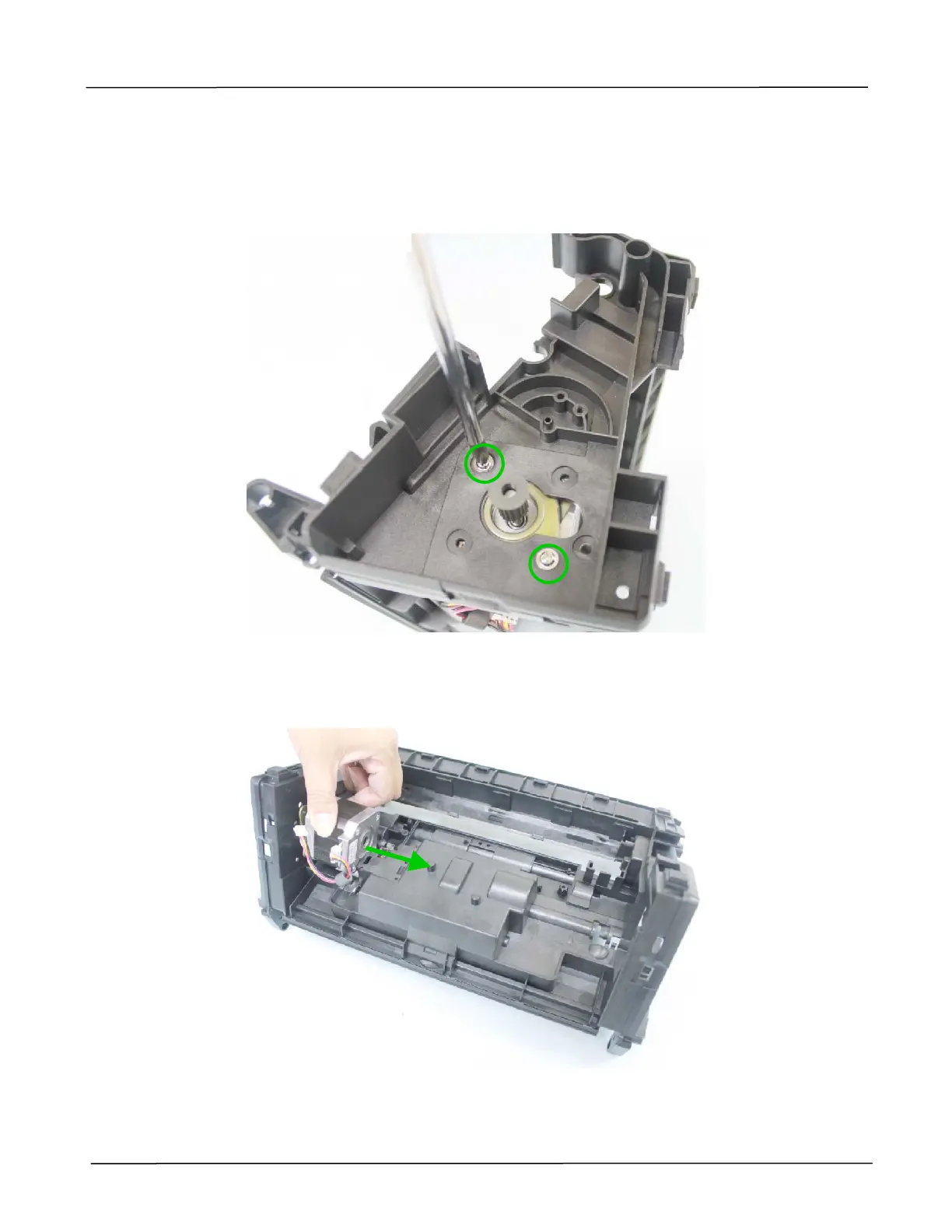

2. Remove 2 fixing screws on the motor bottom cover, as indicated below:
(Torque：6±0.5Kgf.cm / Screw Type: +R-H, M3x6 / PN: 077-0603-0)
3. Remove the motor
from the bottom base, as shown below:
