6.1.30 Removing the Shaft Mount from the Bottom Base
1. Remove the Pick-up Roller and ADF Roller as described in the preceding section 6.1.29.

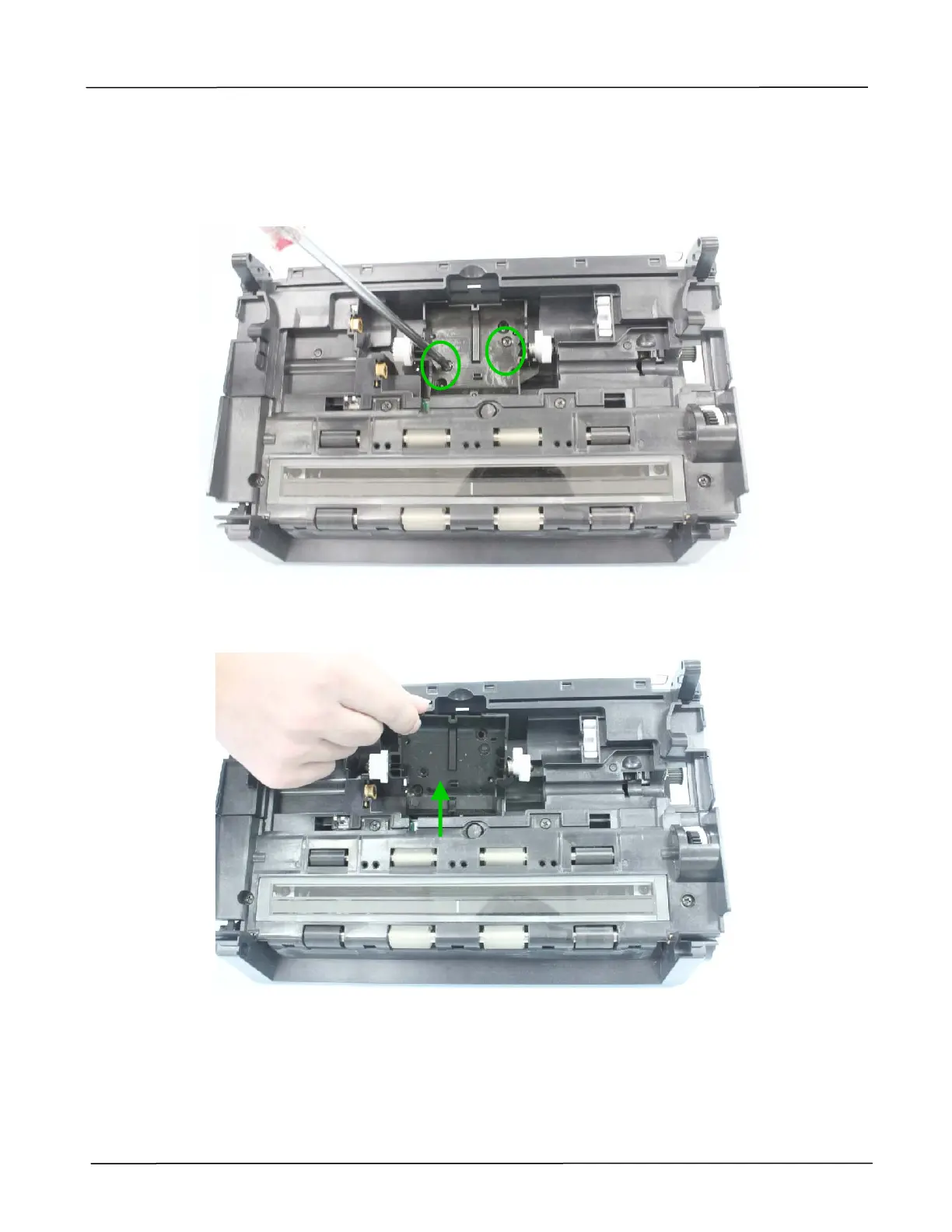

2. Remove the 2 fixing screws on the shaft mount from the bottom base, as indicated below:
(Torque：8±0.5Kgf.cm / Screw Type: +B-H, TAP-2, 3x10 / PN: 077-1010-0)
3. Lift and remove the shaft mount from the bottom base, as shown below:
To Next Page
