6-57

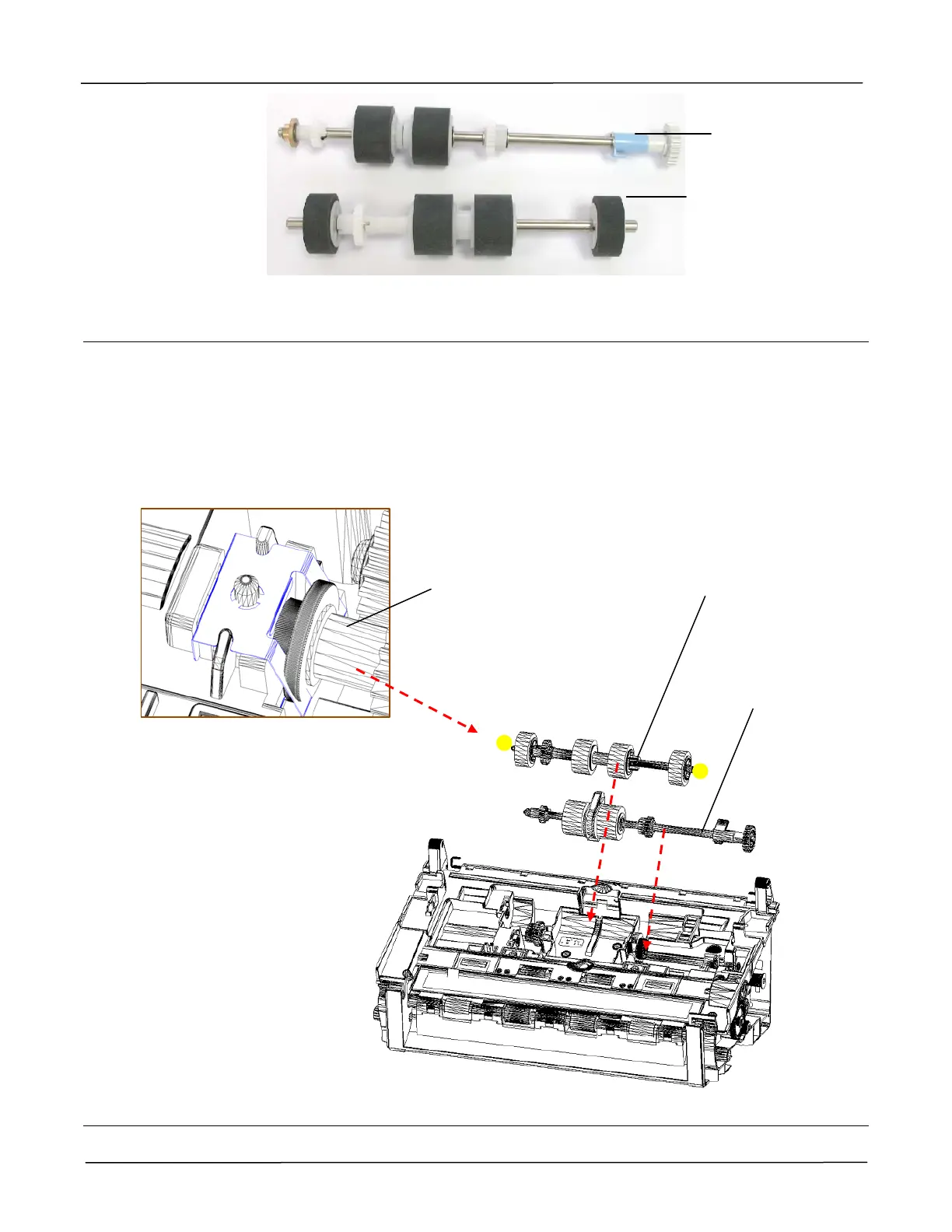

Reassembling:
1. Before installing the pick-up roller back to the bottom base, be sure to lubricate the areas
(indicated in yellow) with MS-54 oil as illustrated.
2. While installing the ADF roller back to the bottom base, mount the copper sleeve at one end
of the ADF roller to the clamp first.
ADF Roller
Pick-up Roller
Copper Sleeve
ADF Roller
Pick-up Roller
