6-71
6.1.35 Removing the Main Board
1. Remove the Upper base and Bottom Base as described in the preceding section 6.1.10.

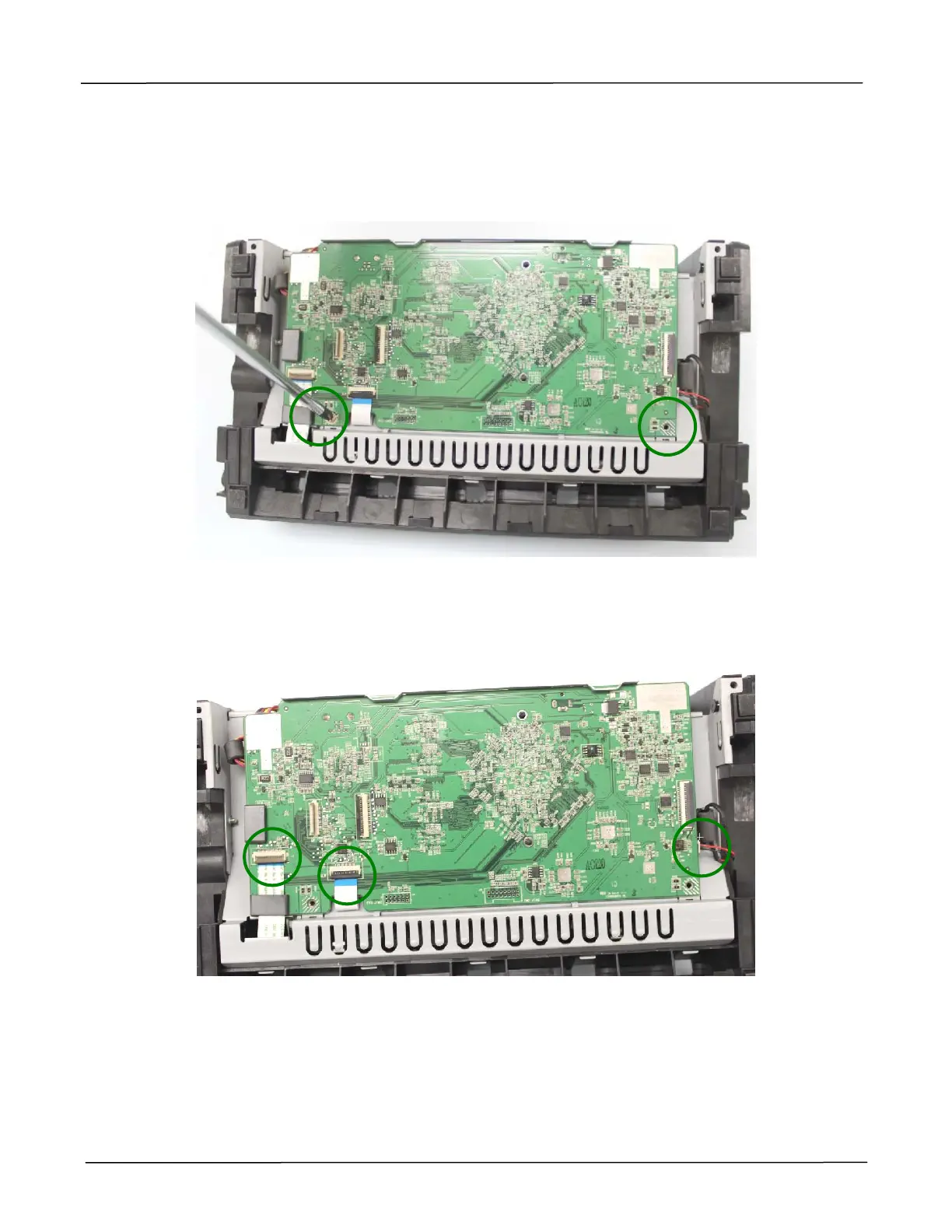

2. Remove 2 fixing screws on the main board, as indicated below:
(Torque：6±0.5Kgf.cm / Screw Type: +R-H, M3x6 / PN: 077-0603-0)
3. Disconnect 7 cables from the main board to remove the main board.
(Tip for Connector Switch: Unlock the black cable connector switch, and remove the cable.)
To Next Page
