Avision AD280 - Removing the Glass Assembly from the Bottom Base

6-60
6.1.31 Removing the Glass Assembly from the Bottom Base
1. Remove the Input Tray as described in the preceding section 6.1.3.

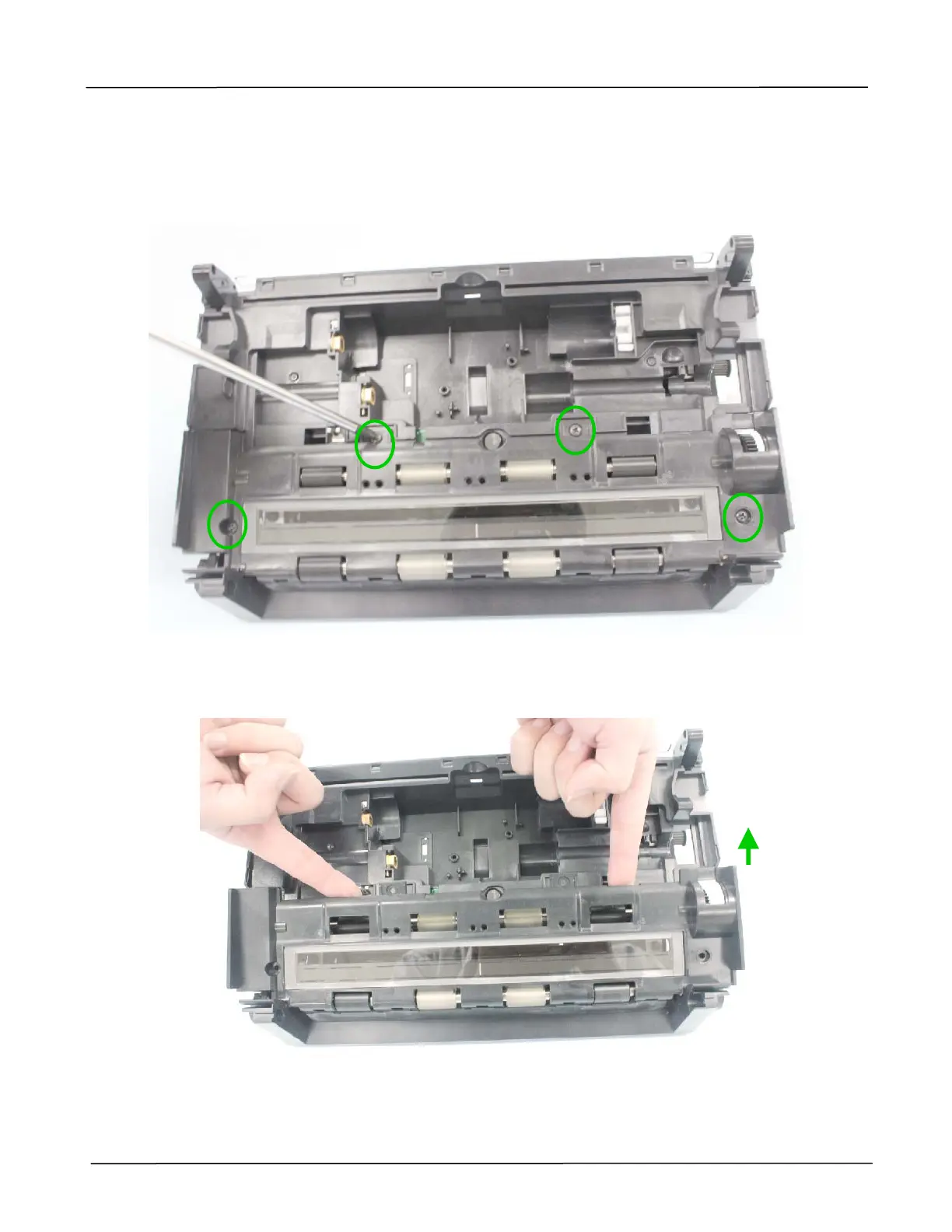

2. Remove the 4 fixing screws on the glass assembly from the bottom base, as indicated below:
(Torque：6±0.5Kgf.cm / Screw Type: +B-H, TAP-2, M3x8 / PN: 077-0802-0)
3. Remove the glass assembly from the bottom base, as indicated below:
