6-67
6.1.33 Removing the Feeding Rollers from the Bottom Base
1. Remove the Glass Assembly as described in the preceding section 6.1.11.

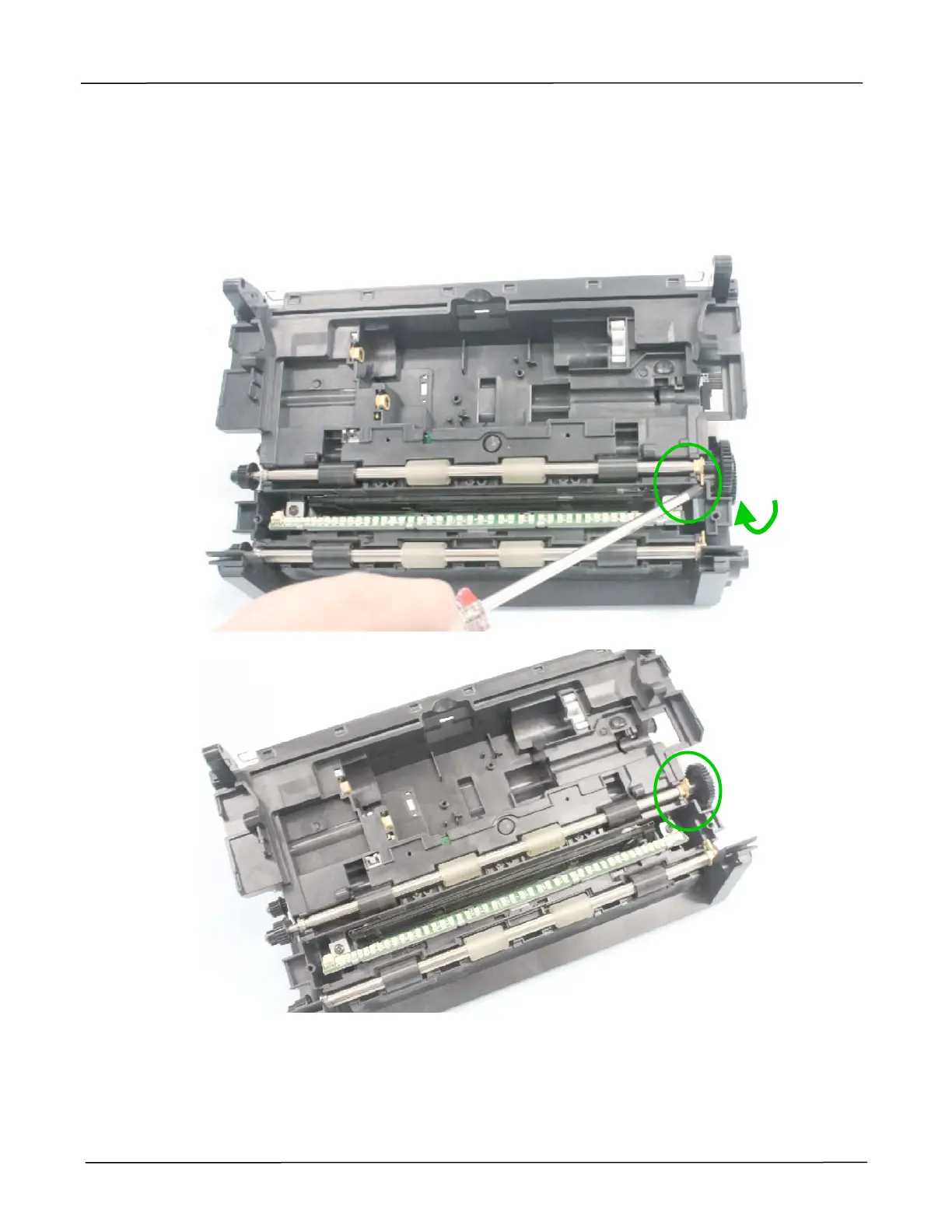

2. Rotate the right end of the feeding roller 90 degrees clockwise from the bottom base, as
indicated below:
