6.1.22 Removing the Latch Hook from the Upper Base
1. Remove the Upper base and Bottom Base as described in the preceding section 6.1.10.

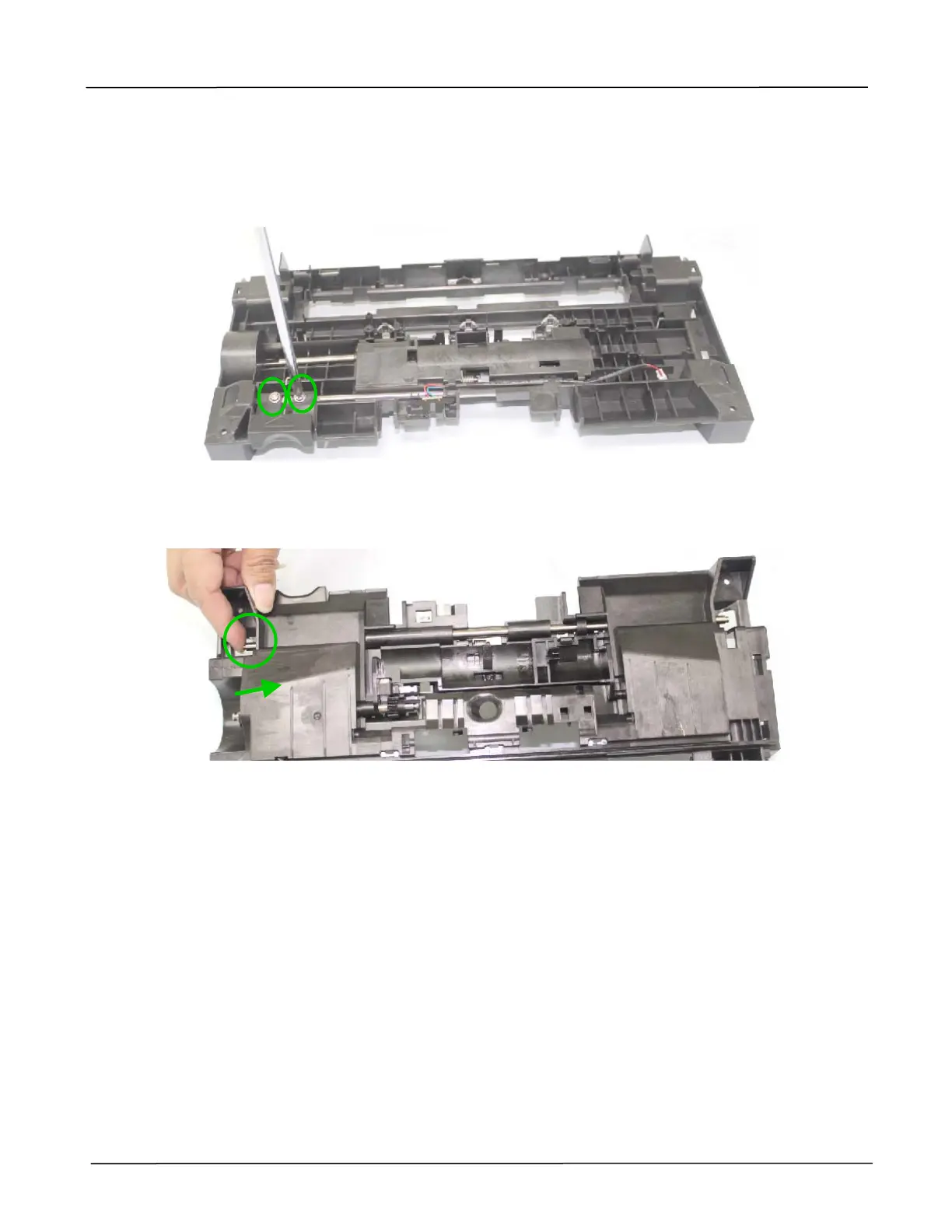

2. Remove the 2 fixing screws on the shaft from the upper base, as indicated below:
(Torque：6±0.5Kgf.cm / Screw Type: M3x6.5 / PN: 077-0636-0)
3. Push in the left end of the shaft a little bit, as shown below:
