6.1.8 Removing the Top Cover and Bottom Cover

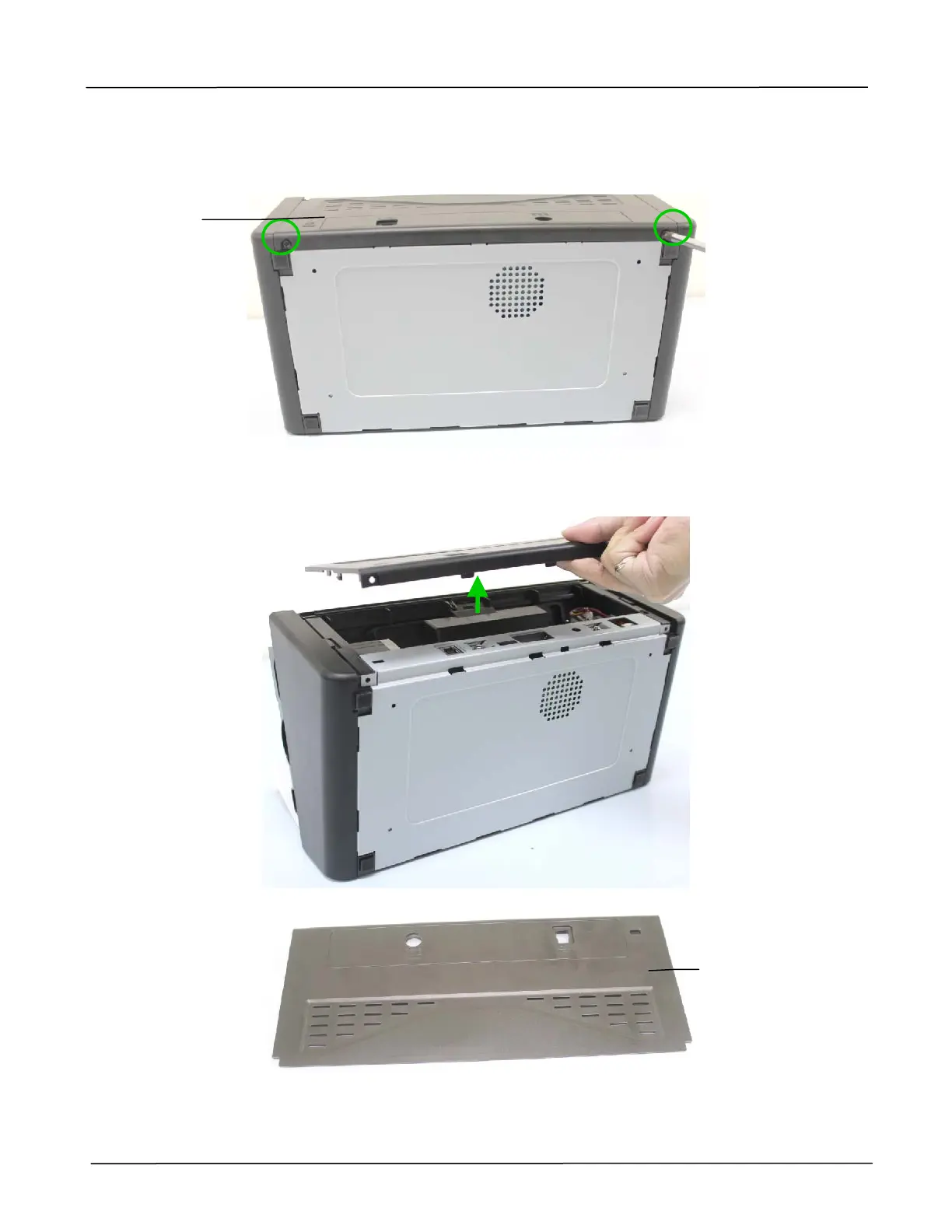

1. Remove 2 fixing screws on the top cover, as indicated below:
(Torque：8±0.5Kgf.cm / Screw Type: +B-H, TAP-2, 3x10 / PN: 077-1010-0)
2. Remove the top cover from the scanner unit.
Top Cover
Top Cover
