6-15

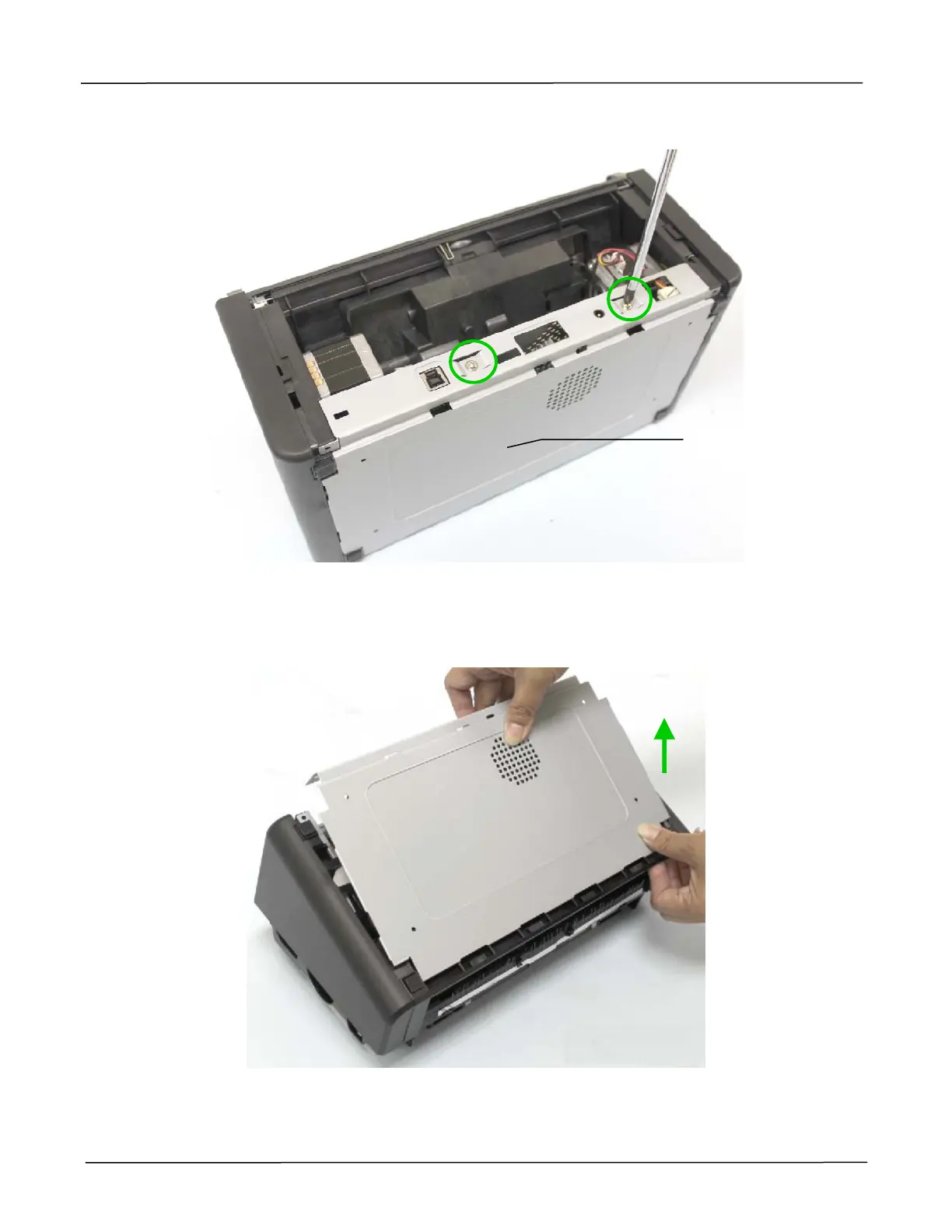

3. Remove 2 fixing screws on the bottom cover, as indicated below:
(Torque：6±0.5Kgf.cm / Screw Type: M3x6 / PN: 077-0603-0)
4. Lift the bottom cover to remove the bottom cover from the bottom base.
Bottom Cover
