6.1.39 Removing the Motor Assembly from the Bottom Base
1. Remove the Left/Right Covers as described in the preceding section 6.1.9.

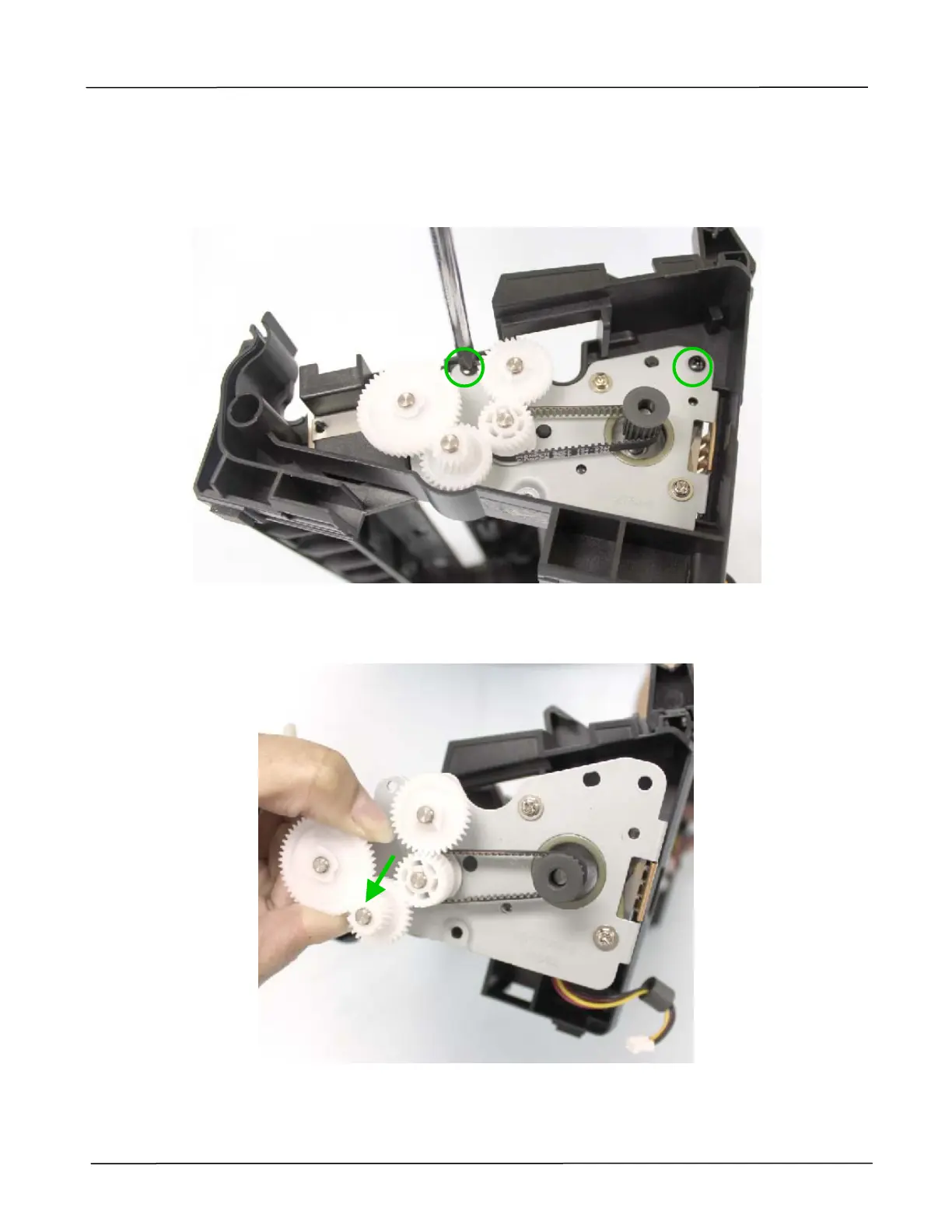

2. Remove 2 fixing screws on the plate, as indicated below:
(Torque：8±0.5Kgf.cm / Screw Type: +B-H, TAP-2, 3x10 / PN: 077-1010-0)
3. Remove the gear, and the motor assembly, as indicated below:
