6-62
6.1.32 Removing the Belt from the Bottom Base
1. Remove the Left/Right Covers as described in the preceding section 6.1.9.

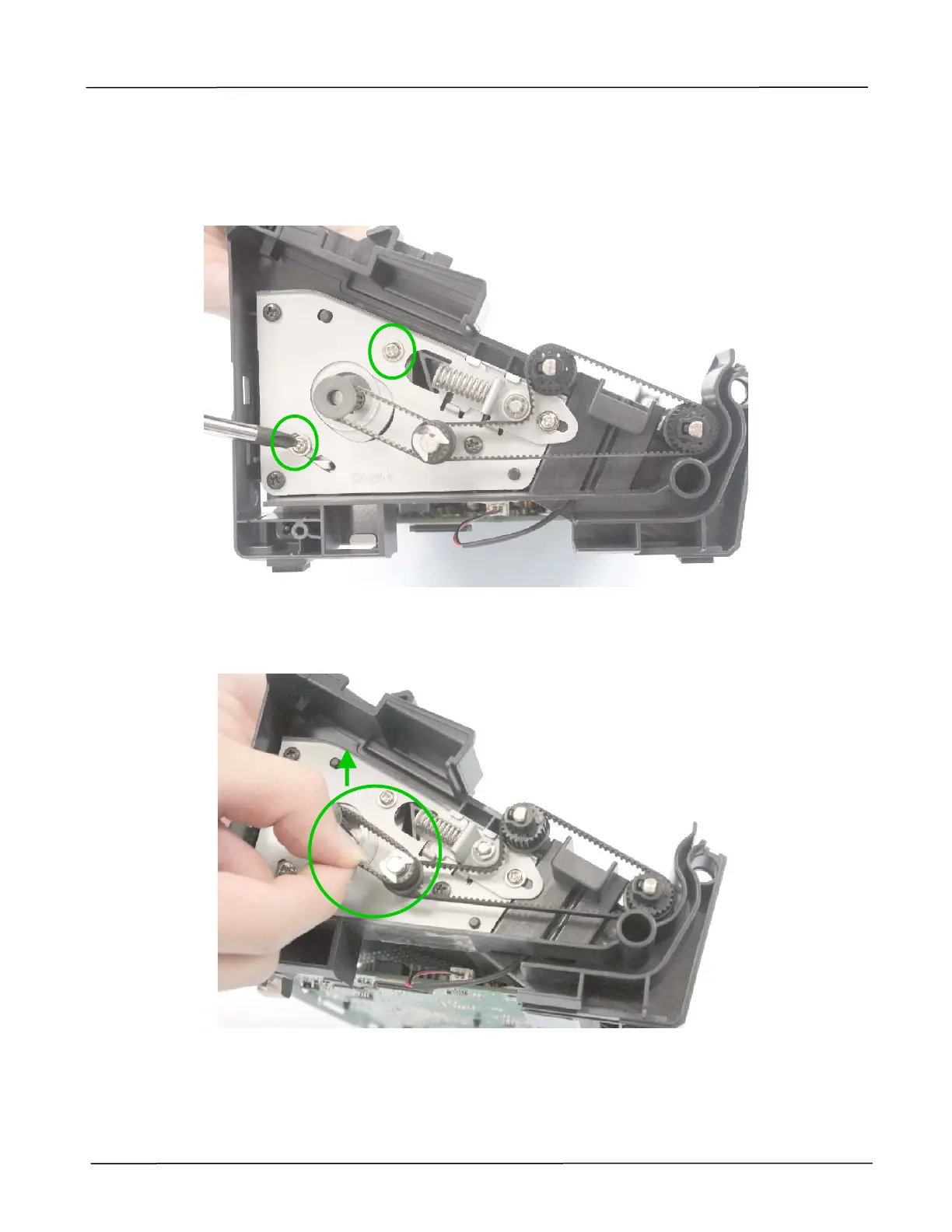

2. Loosen the 2 fixing screws on the plate from the bottom base, as indicated below:
(Torque：8±0.5Kgf.cm / Screw Type: +B-H, TAP-2, M3x8 / PN: 077-1010-0)
3. Remove the short belt from the 2 gears as indicated below:
To Next Page
