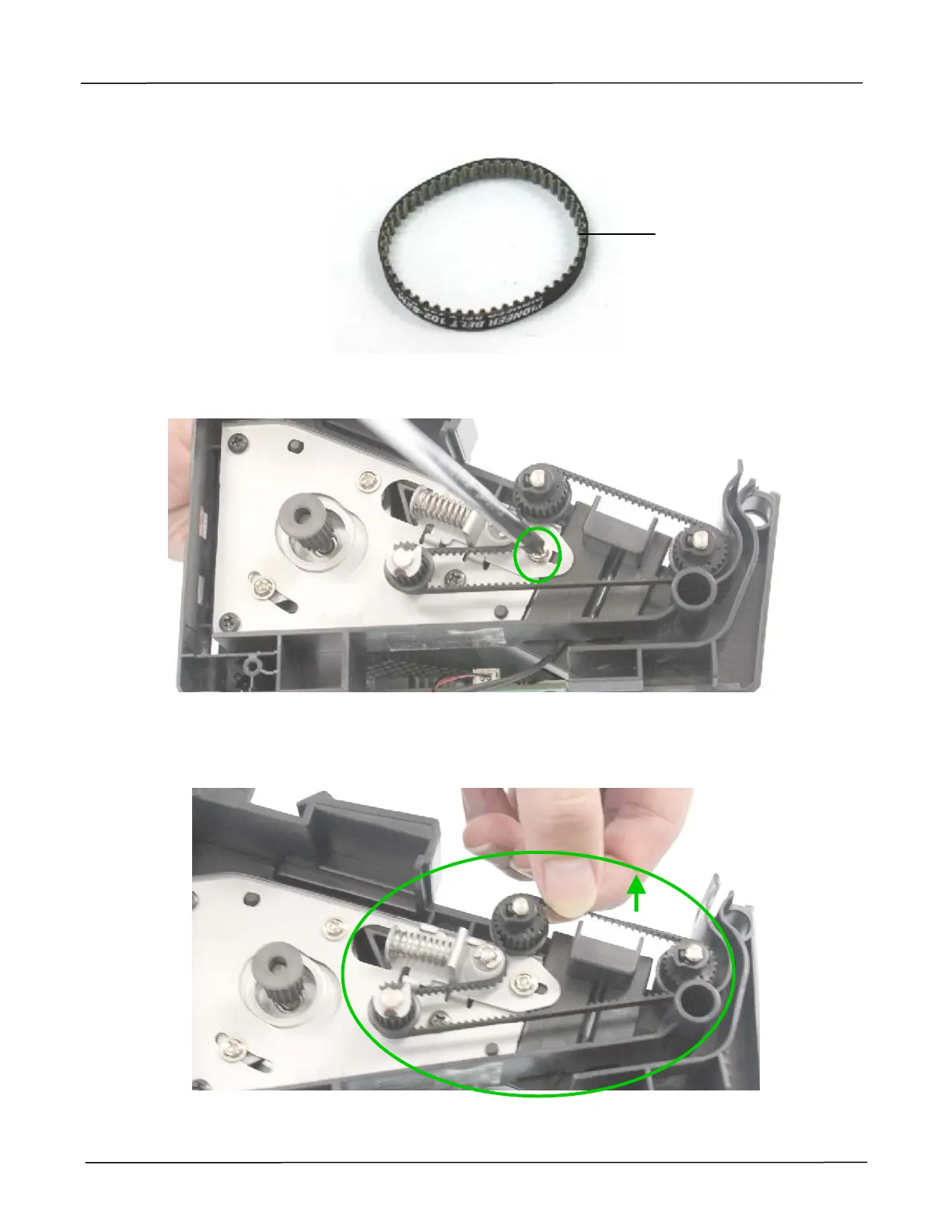

4. Loosen the fixing screw on the plate from the bottom base, as indicated below:
(Torque：8±0.5Kgf.cm / Screw Type: +B-H, TAP-2, M3x8 / PN: 077-1010-0)
5. Remove the long belt from the 3 gears as indicated below:
Short Belt
