Reassembling:
1. While connecting the flat cable back to the CCD board, tear off the back of the double-sided
tape, and then follow the following graphs to fold the flat cable.

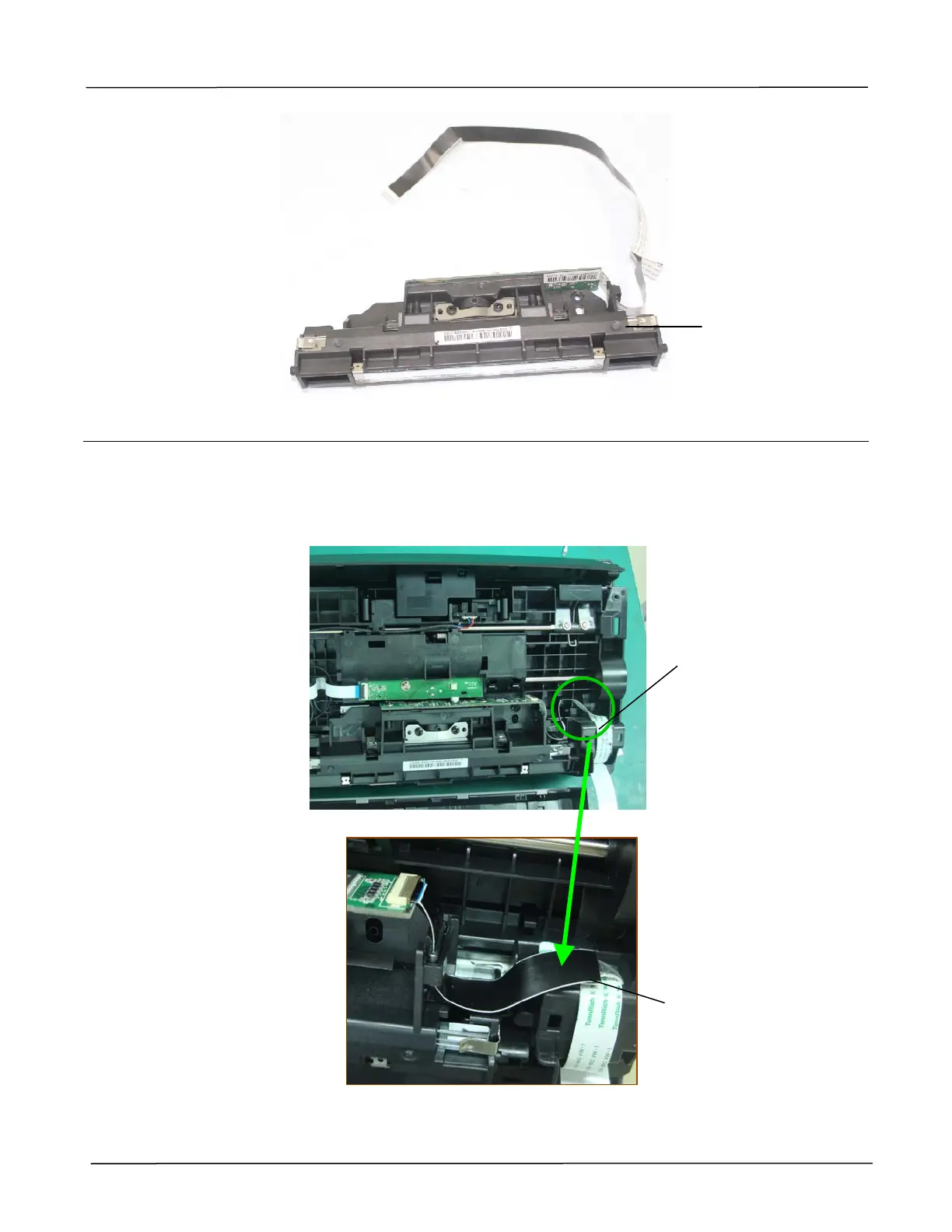

CCD Assembly
(Upper Base)
Fold the flat cable in
this way.
The back of the double-
sided tape is torn off.
