MASTER - SUB MODULE
ENG
Axel Technology srl www.axeltechnology.com MASTER - SUB MODULE

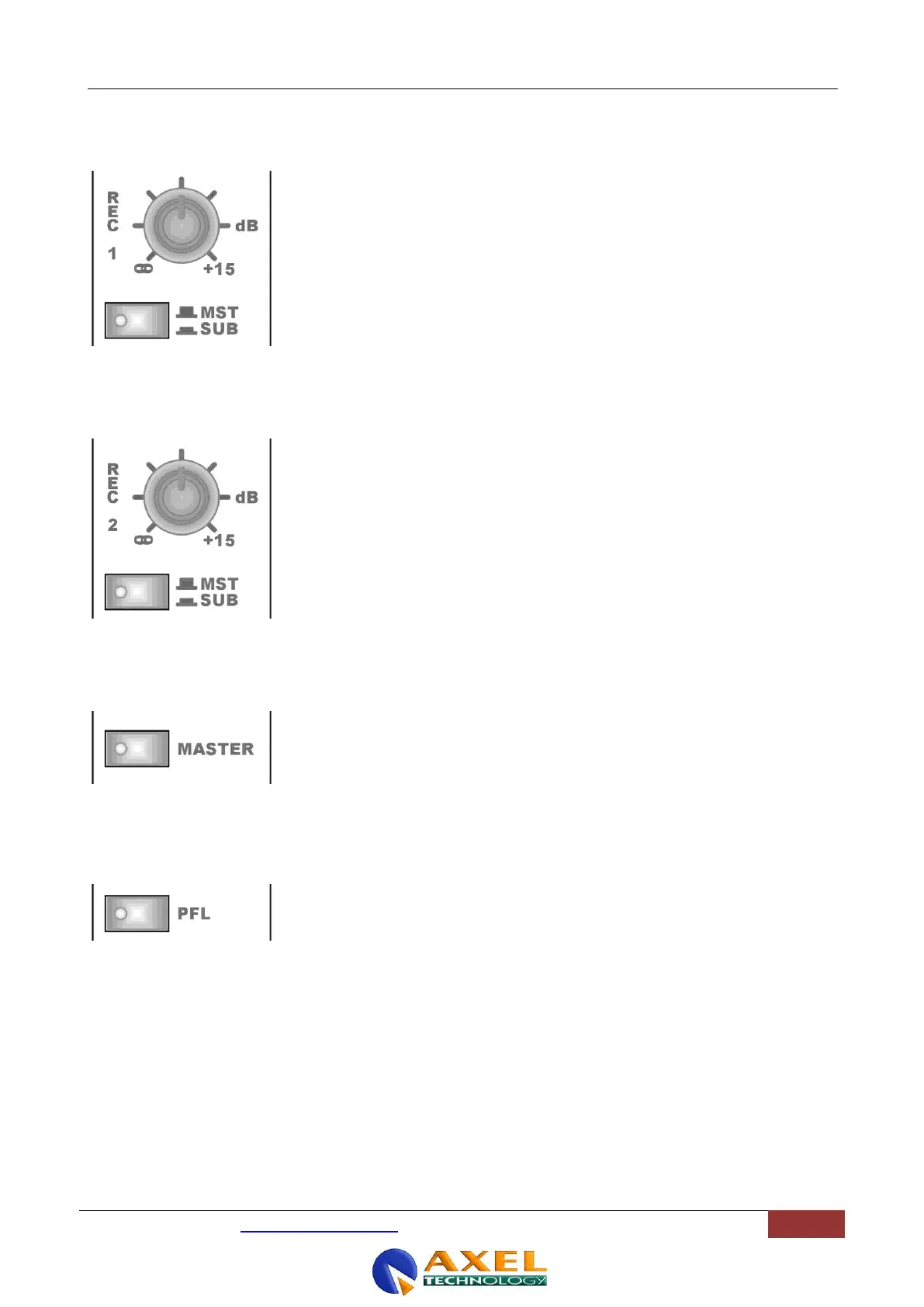

16.4 REC 1 CONTROL SECTION
The REC 1 stereo output is sourced from the main Master bus or Sub Bus
depending on the MST/SUB switch selection.
The REC 1 potentiometer controls the level of the MST / SUB signal sent to REC 1
L&R connectors situated on the module back panel.
16.5 REC 2 CONTROL SECTION
The REC 2 stereo output is sourced from the main Master bus or Sub Bus
depending on the MST/SUB switch selection.
The REC 2 potentiometer controls the level of the MST / SUB signal sent to REC 2
L&R connectors situated on the module back panel.
16.6 MASTER ROUTING SWITCH
MASTER routing switcher allows the Sub mix (post-fader) to be mixed into the
main output mixbus (Master). This is a convenient way to use the SUB assignment
switch as a subgroup system, creating new possibilities in the Oxygen 4 console.
The red LED inside the switch will illuminate accordingly.
16.7 PFL BUTTON
Stereo pre-fade listening. PFL button (operated only in latched) mode allows pre-
fade listening of the SUB channel with the fader closed.
When the PFL button is activated, the Sub signal will be connected to the PFL
output and to the MONITOR meters circuitry (see also MONITOR Chapter).
Even when the channel is active, the PFL system is active. It always operates in
the ADDITIVE Mode (i.e. You can listen to one or more PFLs at the same time by
pressing one or more PFL keys).
