Axel Technology srl www.axeltechnology.com STEREO MODULE

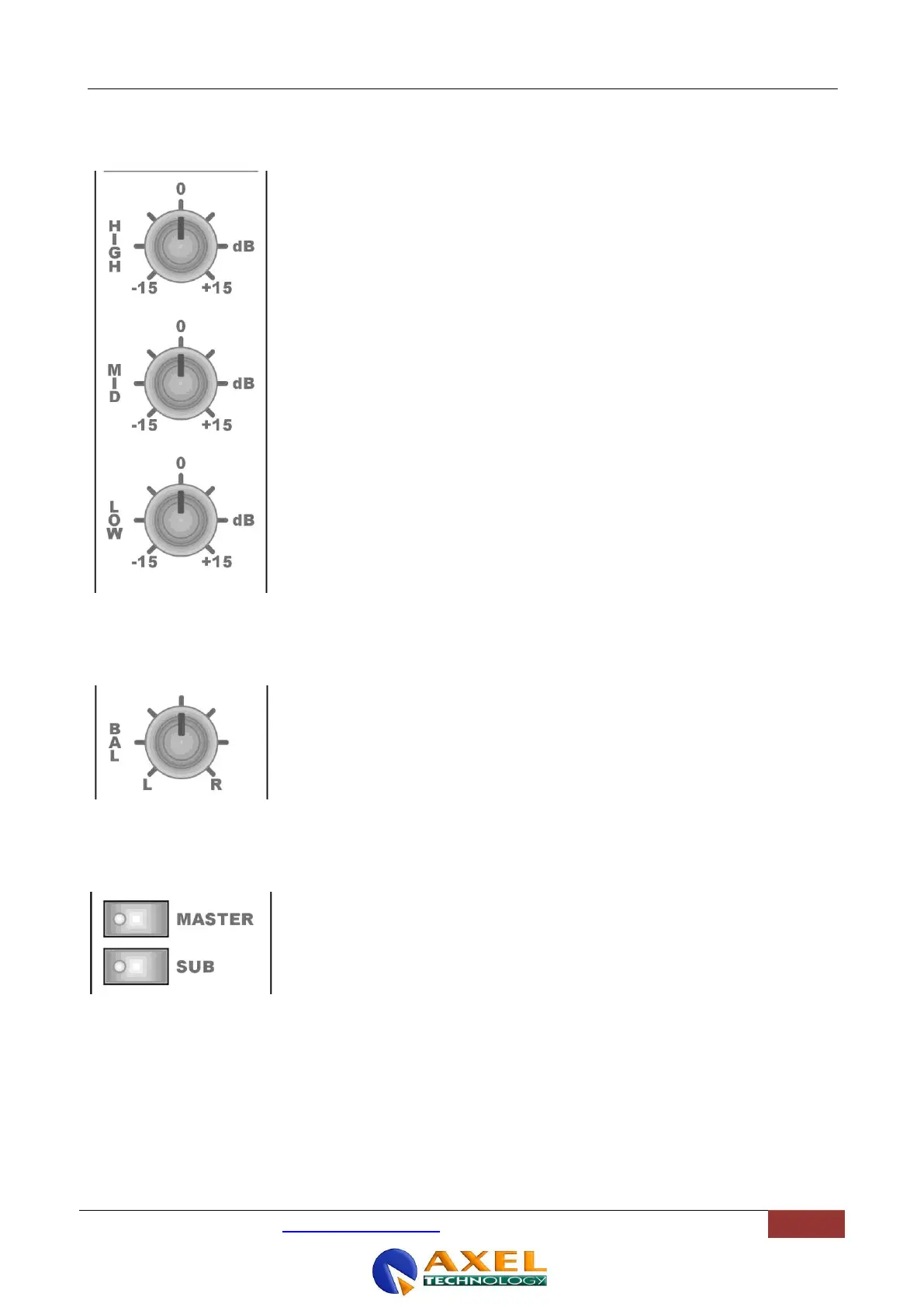

13.8 EQUALISER
The Equaliser (available as an option – Ref to Section Errore. L'origine
riferimento non è stata trovata.) comprises three sections. The upper control
provides H.F.(treble) boost and cut of +/-15dB at 13 kHz, and the lower control
provides L.F. (bass) boost and cut of +/-15dB at 60 Hz.
The centre knob is arranged as MID frequency section, with a cut/boost control of
+/- 15dB for frequencies at around 5 KHz.
Set the cut/boost control of each section to the centre-detented position when not
required.
13.9 BALANCE
It adjusts the stereo image of the signal on the stereo line input (i.e. the balance
between the L and R outputs). At the detented centre position the signal routes
equally to L and R.
13.10 MASTER-SUB ROUTING SWITCHES
The input channel signal may be routed to the main Stereo MIX (L-R) and/or to the
SUB bus by pressing the respective switches.
There is a red LED inside each switch which will illuminate accordingly.
The Sub mix can be mixed into the main output mixbus (Master) (see MASTER
routing switcher on the Sub module). This is a convenient way to use the SUB
assigment switch as a subgroup system, creating new possibilities in the Oxygen 4
console.
