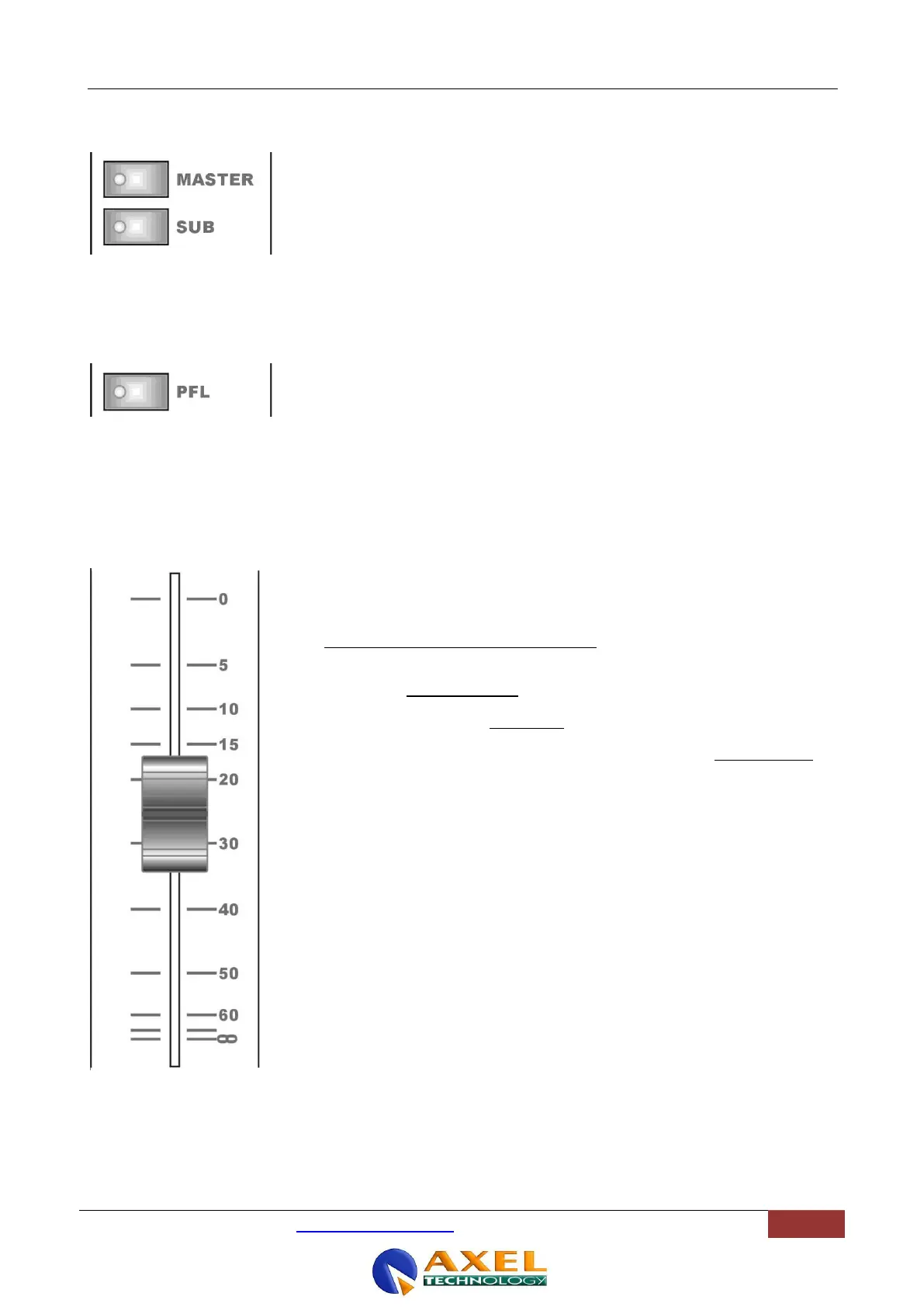

12.8 MASTER-SUB ROUTING SWITCHES
The input channel signal may be routed to the main Stereo MIX (MASTER) and/or
to the SUB bus by pressing the respective switches.
There is a red LED inside each switch which will illuminate accordingly. The Sub
mix can be mixed into the main mixbus (Master) (see MASTER switcher on the
Sub module). This is a convenient way to use the SUB assignment as a subgroup
system, creating new possibilities in the console.
12.9 PFL BUTTON
PFL button (operated only in latched) mode allows pre-fade listening (post pan-
pot) of the channel even with the fader closed.
When the PFL button is activated, the channel signal will be connected to the PFL
output and to the MONITOR meters circuitry (see also MONITOR Chapter).
The PFL system is always active and it operates in the ADDITIVE Mode (i.e. You
can listen to one or more PFLs at the same time by selecting one or more PFL
keys).
12.10 FADER
ALPS N-type 90° ultra smooth 100 mm sliders are provided on series.
The scale shows the attenuation. Normal operating position is at the top „0‟ mark,
providing overall 0 dB of gain.
Fader opening always activates the channel.
On request, to notify at order, ALPS K/VCA series sliders can be also fitted, the
last ones controlling an internal high quality VCA circuitry. There is no audio going
through the VCA faders. VCA faders do not therefore suffer from such severe
noise and signal loss problems that conventional faders may have when wear and
tear causes the resistive surface to deteriorate. The benefit is longer fader life, as
the crackles and dropouts typical of the traditional audio faders are smoothed out.
