Axel Oxygen 4 User Manual

STEREO MODULE ENG
Axel Technology srl www.axeltechnology.com STEREO MODULE
30
13.3 ‘SSIR’ OPTIONAL REMOTE INTERFACE
Availabe on request, OX4-ST-SSIR option adds momentary, relay-based Start/Stop control from slider for Stereo
module.
The outputs are insulated relay contact closures (one Relay for STOP and one for START).
A 15 VDC current-limited voltage is also provided for use with the remote control outputs.

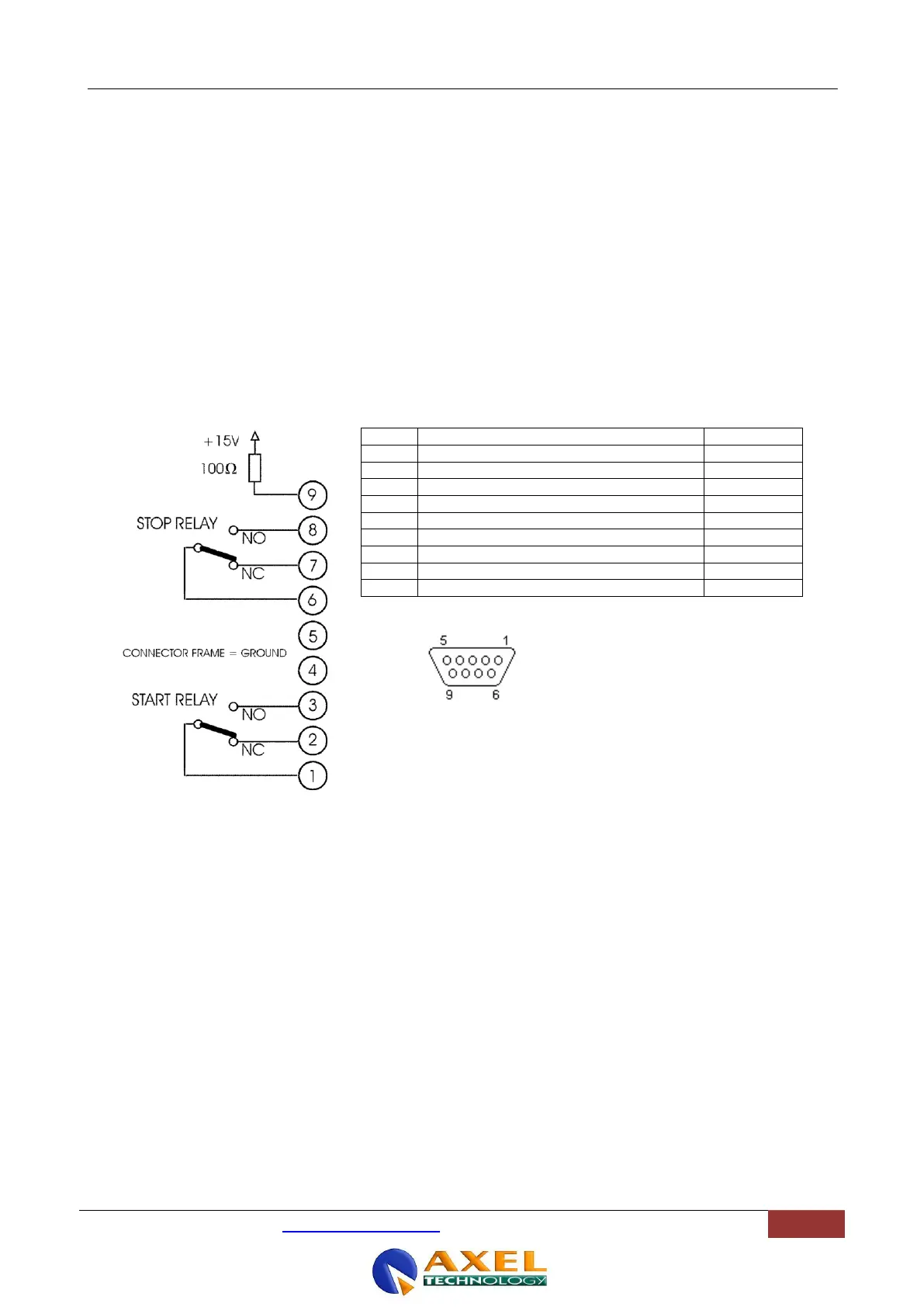

13.3.1 ‘SSIR’ INTERFACE PIN-OUT
SUB D 9P FEMALE
PIN
DESCRIPTION
DIRECTION
1
Common – Start Relay
OUT
2
NC – Start Relay
OUT
3
NO – Start Relay
OUT
4
Not Connected
/
5
Not Connected
/
6
Common – Stop Relay
OUT
7
NC – Stop Relay
OUT
8
NO – Stop Relay
OUT
9
+ 15 V DC
OUT
frame
Ground GND
/
