TECHNICAL APPENDIX
ENG
Axel Technology srl www.axeltechnology.com TECHNICAL APPENDIX
20 TECHNICAL APPENDIX
This section provides all the technical explanations, and the connection Pin Outs to and from the Oxygen 4 and Oxygen
4 VMH. Always refer to this technical appendix for connections and connection procedures. In case of differences
between the documentation below and the hardware device please contact Axel Technology at the numbers and e-mail
addresses shown at the end of this manual. Our technical and assistance department will be pleased to help you!
20.1 APPENDIX A – AUDIO CONNECTIONS
Matching the Console to Destination Equipment. The console produces a standard output level of 0dBu for a meter
reading of „0‟. It can produce a maximum of +20 dBm and is therefore well suited to driving equipment operating at
nominal 0dBm or +4dBm while providing plenty of headroom.

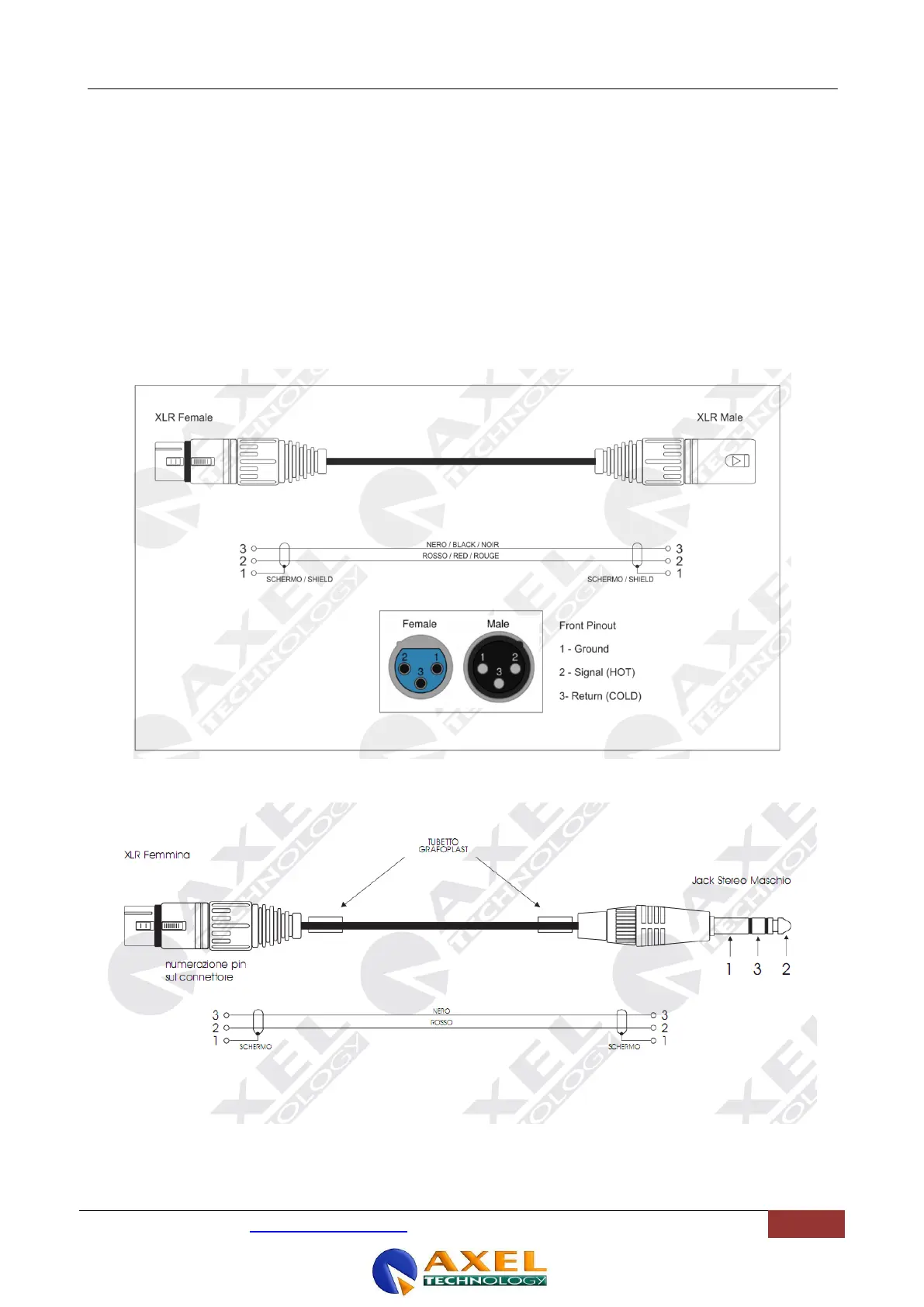

20.2 APPENDIX B – BALANCED AUDIO CONNECTION XLR I/O
Balanced Audio connection diagram with balanced XLR for Analogue audio input and output (Left+Right).
20.3 APPENDIX C – BALANCED AUDIO CONNECTION XLR F – JACK
To Next Page
