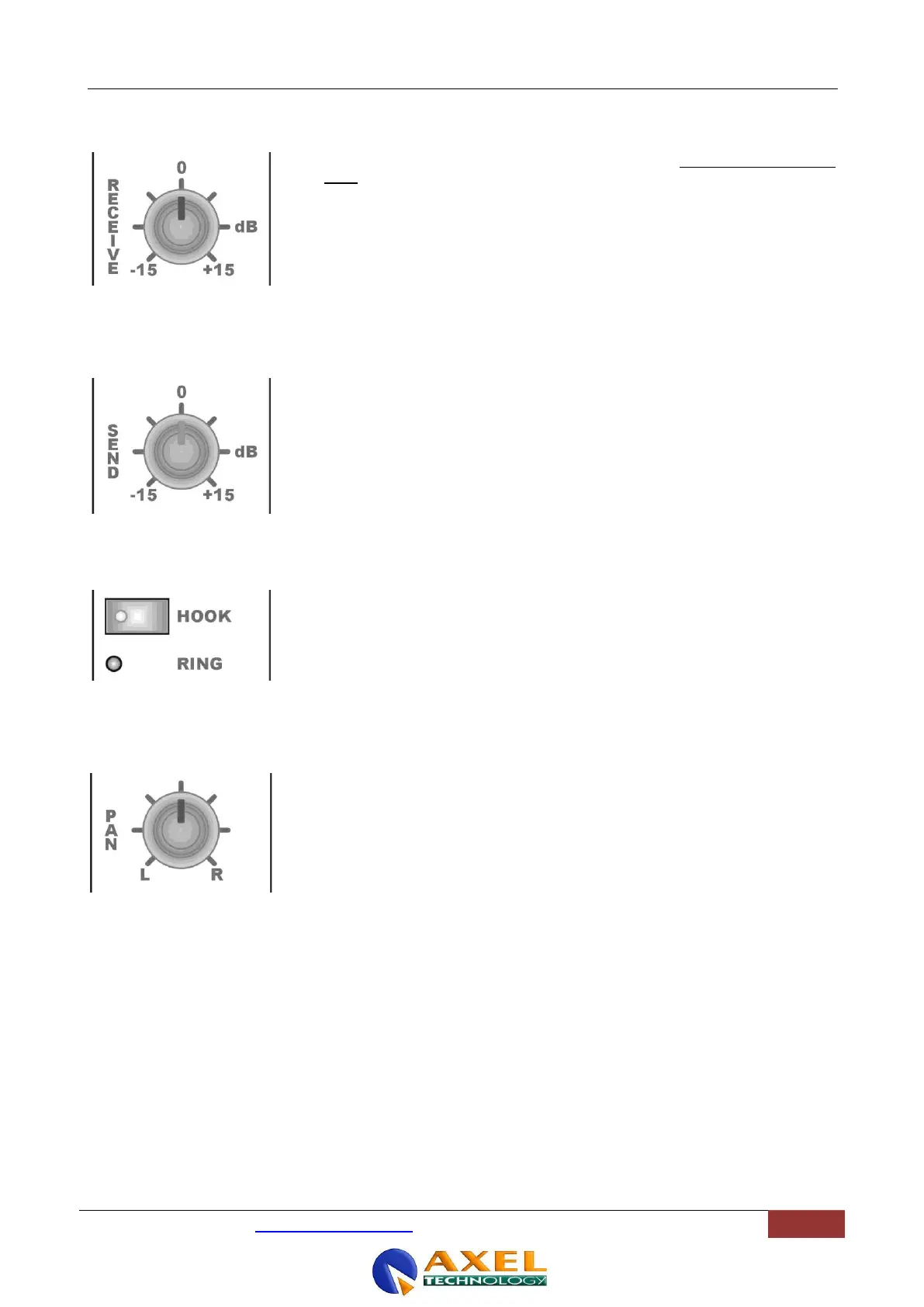

15.4 RECEIVE CONTROL
It adjusts in the +/- 15 dB range the level of the signal incoming from telephone
caller.
15.5 SEND CONTROL
It adjusts in the +/- 15 dB range the level of mix-minus signal which is sent to the
telephone caller.
15.6 HOOK SWITCH AND RING LED
The HOOK switch hooks / hangs up the hybrid from the telephone line. Hook LED
switches on accordingly.
RING LED blinks when a call (ring) is coming in. Please note: LED glows only if
phone line is connected.
15.7 PAN CONTROL
The PAN control determines the position of the signal within the stereo mix image.
Rotation fully anticlockwise feeds the signal solely to the Left mix bus (Master &
Sub outputs), while rotation clockwise sweeps the image to the Right mix bus
(Master & Sub outputs).
The centre applies 0 dB of gain to both L & R signals.
