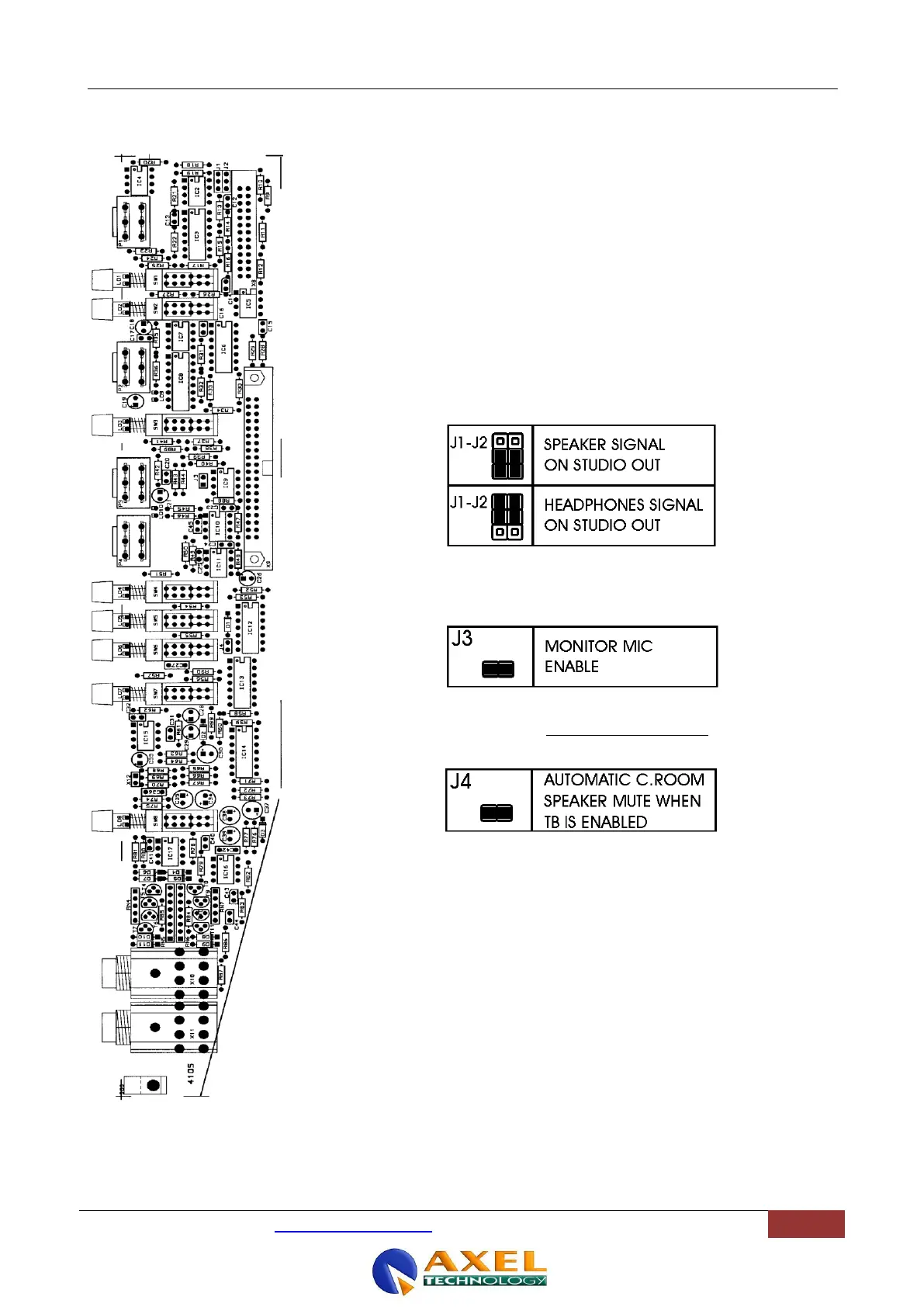

There are four Jumpers on the Monitor module PCB.
J1 and J2 are situated on the top of the module (near to the Tuner potentiometer)
J3 is situated near to the „flat cable‟ connector (behind the Ctrl Room speaker
potentiometer)
J4 is situated behind the Control Room SUB switch.
The jumper settings are given below:
The J1 and J2 jumper settings allow you to configure each of the left and right
outputs of the back-panel STUDIO outputs to either Line level (i.e. suitable for an
external amplifier) or to headphone level (ref par. 0).
When closed, the TB MIC jumper (J3) enables the console built-in microphone for
TalkBack to Studio communications.
When the jumper J4 is closed, the TalkBack to Studio button is associated to the
cut-off of the C.ROOM SPEAKER output on the MONITOR module.
