Axel Oxygen 4 User Manual

MONITOR MODULE ENG
Axel Technology srl www.axeltechnology.com MONITOR MODULE
58

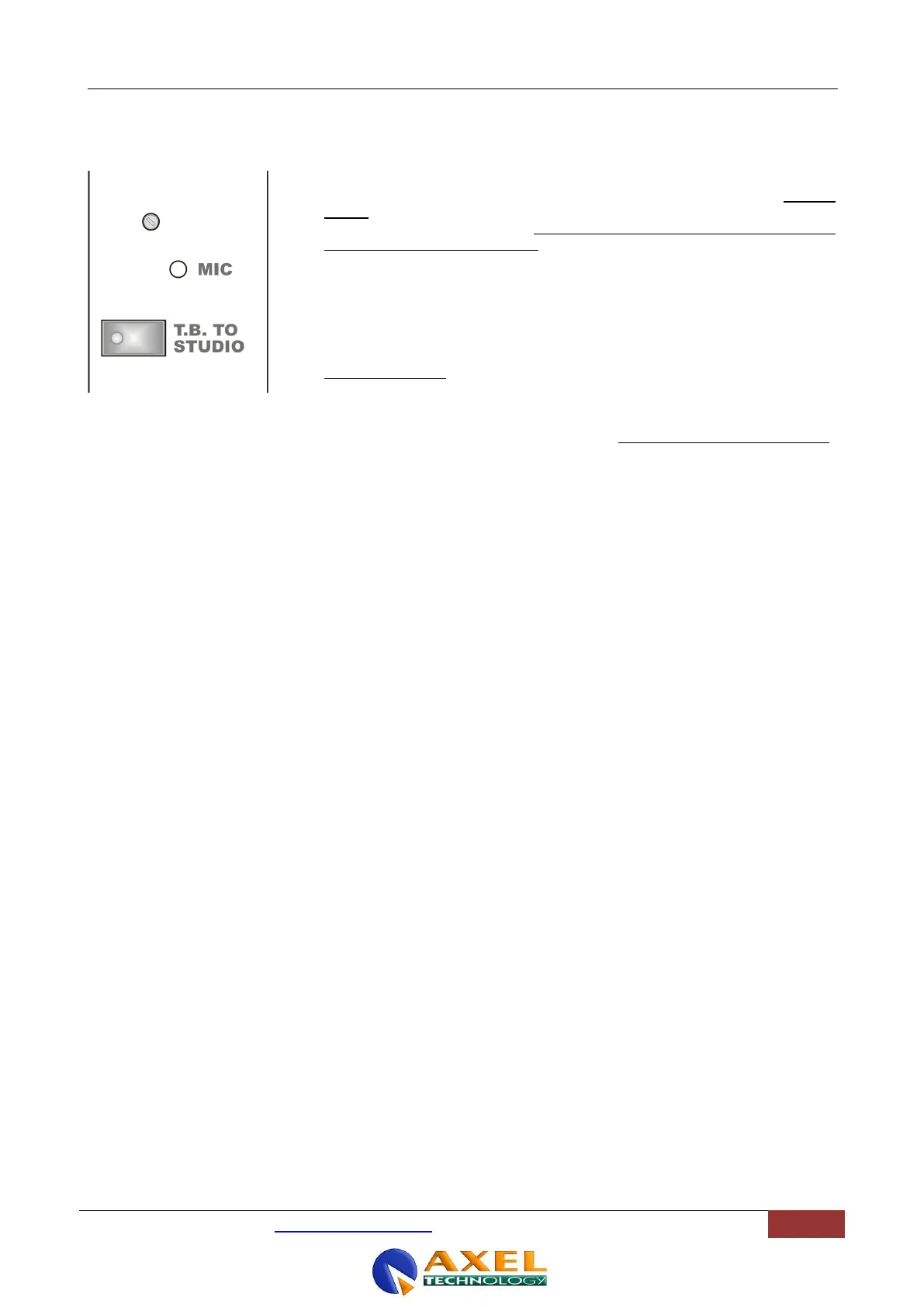

17.7 TB TO STUDIO BUTTON AND TB MICROPHONE
The TALK BACK button allows people in the Control Room to transmit talkback to
the Studio Speakers and Studio headphones when the button is pressed and vice
versa (i.e. TB button allows communications from Studio to Control Room
Headphones and Speakers, too). The small hole located close to the MIC contains
a trimmer for mic level adjustment.
When pressing Talk button:
- talkback signal toward CRoom speakers / headphones comes from all the
MONO modules with „TB to Croom‟ option enabled
- talkback signal toward Studio speakers / headphones comes from all the MONO
modules with „TB to Studio‟ option enabled as well as from the Monitor module
built-in microphone whether enabled (ref to Section 0 for internal Microphone
enabling).
C ROOM SPEAKERS
Talkback source will automatically replace their
existing sources. Speakers may be muted at all
(CUT LED glows) with TB button pressed (ref to
Section 0 - Jumper J 4).
C ROOM HEADPH.
Talkback source will automatically replace their
existing sources.
STUDIO SPEAKERS
Talkback source will automatically replace their
existing sources
STUDIO HEADPH.
Talkback source will automatically replace their
existing sources.
CRoom/Studio speakers & headphones outputs are driven pre - their volume
controls, so communication is possible only with volume raised..
Example 1
Communication from the audio engineer to the announcer‟s headphones (situated
in the Studio booth) will be enabled in the following way:
1) Close the Jumper „TB to Studio‟ on the MONO module connected to a Croom‟s
microphone. Alternatively, the audio engineer may use the microphone built-in in
the Monitor module (after enabling it via jumper).
2) Press and hold the T.B. to Studio button: it will connect the Engineer‟s voice
audio source to the Studio headphone output. The voice audio signal will replace
whatever signals are also existent on the HP output.
Example 2
Communication from the announcer (situated in the Studio booth) and the audio
engineer (via C Room speakers) will be enabled in the following way:
1) Close the Jumper „TB to Croom‟ on the MONO module connected to the Studio
announcer‟s microphone
2) Press and hold the T.B. to Studio button: it will connect the Announcer„s voice
audio source to the CRoom speakers. The voice audio signal will replace whatever
signals are also present on this output.
