Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION


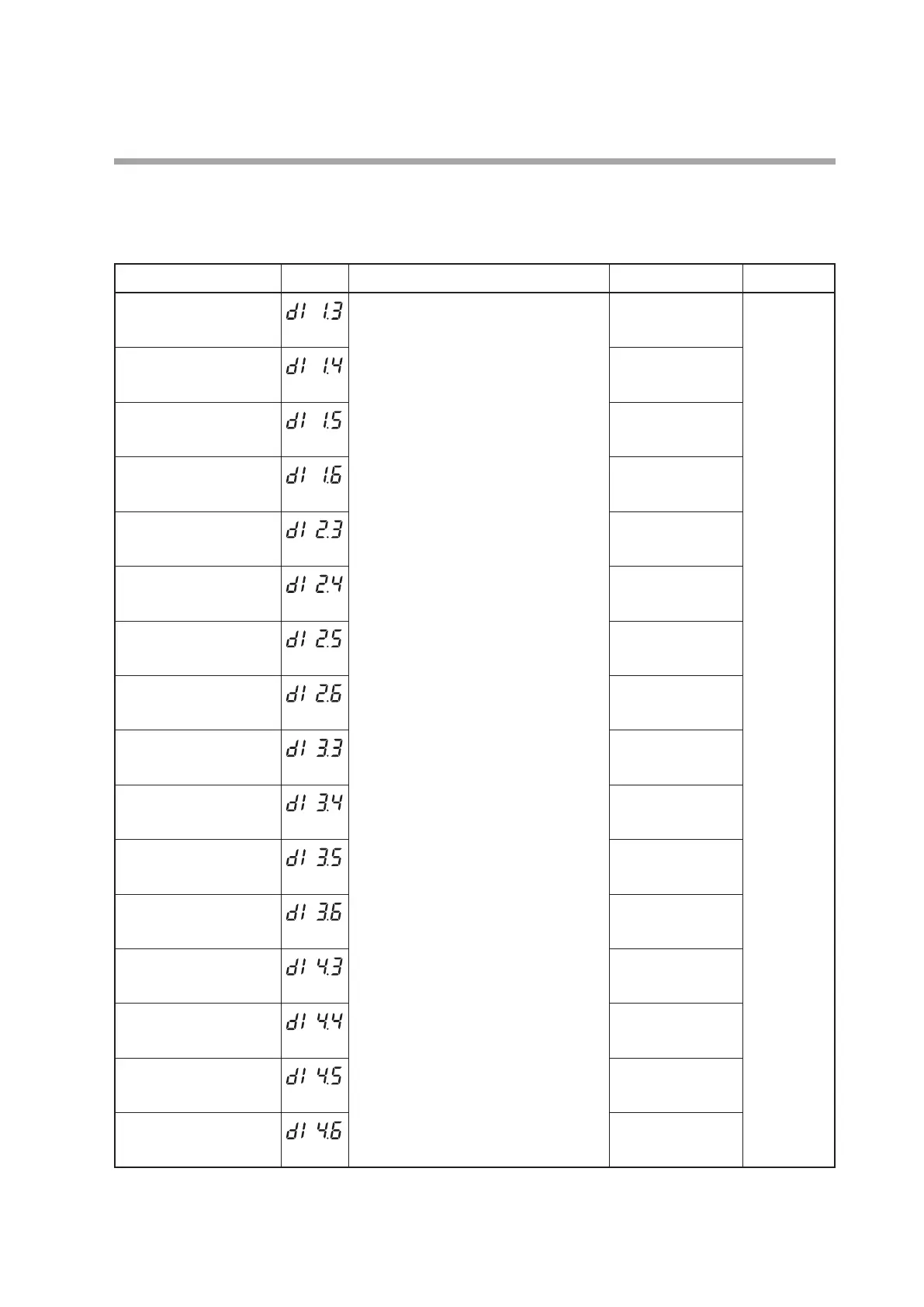

Input assignment
The assignment of four inputs (A, B, C, D) used for the input bit function can be
set.
Item (Bank) Display Contents Initial value User level
Internal Contact 1 Input
assignment A
(DI Assignment bank)
0: Normally opened. (OFF, 0)
1: Normally closed. (ON, 1)
2: DI1
3: DI2
4: DI3
5: DI4
6 to 9: Undefined.
10: Internal Event 1
11: Internal Event 2
12: Internal Event 3
13: Internal Event 4
14: Internal Event 5
15: Internal Event 6
16: Internal Event 7
17: Internal Event 8
18: Communication DI1
19: Communication DI2
20: Communication DI3
21: Communication DI4
22: MANUAL mode
23: READY mode
24: RSP mode
25: AT running
26: During SP ramp
27: Undefined.
28: Alarm occurs.
29: PV alarm occurs.
30: Undefined.
31: mode key pressing status
32: Event output 1 status
33: Control output 1 status
2 High function
Internal Contact 1 Input
assignment B
(DI Assignment bank)
0
Internal Contact 1 Input
assignment C
(DI Assignment bank)
0
Internal Contact 1 Input
assignment D
(DI Assignment bank)
0
Internal Contact 2 Input
assignment A
(DI Assignment bank)
3
Internal Contact 2 Input
assignment B
(DI Assignment bank)
0
Internal Contact 2 Input
assignment C
(DI Assignment bank)
0
Internal Contact 2 Input
assignment D
(DI Assignment bank)
0
Internal Contact 3 Input
assignment A
(DI Assignment bank)
4
Internal Contact 3 Input
assignment B
(DI Assignment bank)
0
Internal Contact 3 Input
assignment C
(DI Assignment bank)
0
Internal Contact 3 Input
assignment D
(DI Assignment bank)
0
Internal Contact 4 Input
assignment A
(DI Assignment bank)
5
Internal Contact 4 Input
assignment B
(DI Assignment bank)
0
Internal Contact 4 Input
assignment C
(DI Assignment bank)
0
Internal Contact 4 Input
assignment D
(DI Assignment bank)
0
(Continue on next page.)
