Chapter 2. OUTLINE OF FUNCTIONS
Operation display Bank selection display Bank setup display
mode
display
enter
para
man
rsp
ev1
ev2
ev3
ot1
ot2
sp
out
pv
SDC36
The mode indicators are lit sequentially form the
left during a period of 5 to 6 sec after the power
has been turned ON while both the upper display
and lower display are OFF.
When all mode indicators have been lit, the display
is changed to the operation display.
(example. mode bank)
OFF
OFF
Display when the power is turned ON.
The display and setup status shown above are examples for explanation.
Therefore, some displays or settings are not shown actually according to the
model and/or setup contents.
No key operation for 3 minutes
or more.
Press the [display] or [mode] key. Press the [display] or [mode] key.
No key operation for
3 minutes or more.
Press the
[enter] or
[<] key.
Keep the
[para] key
pressed
for 2 sec.
or longer.

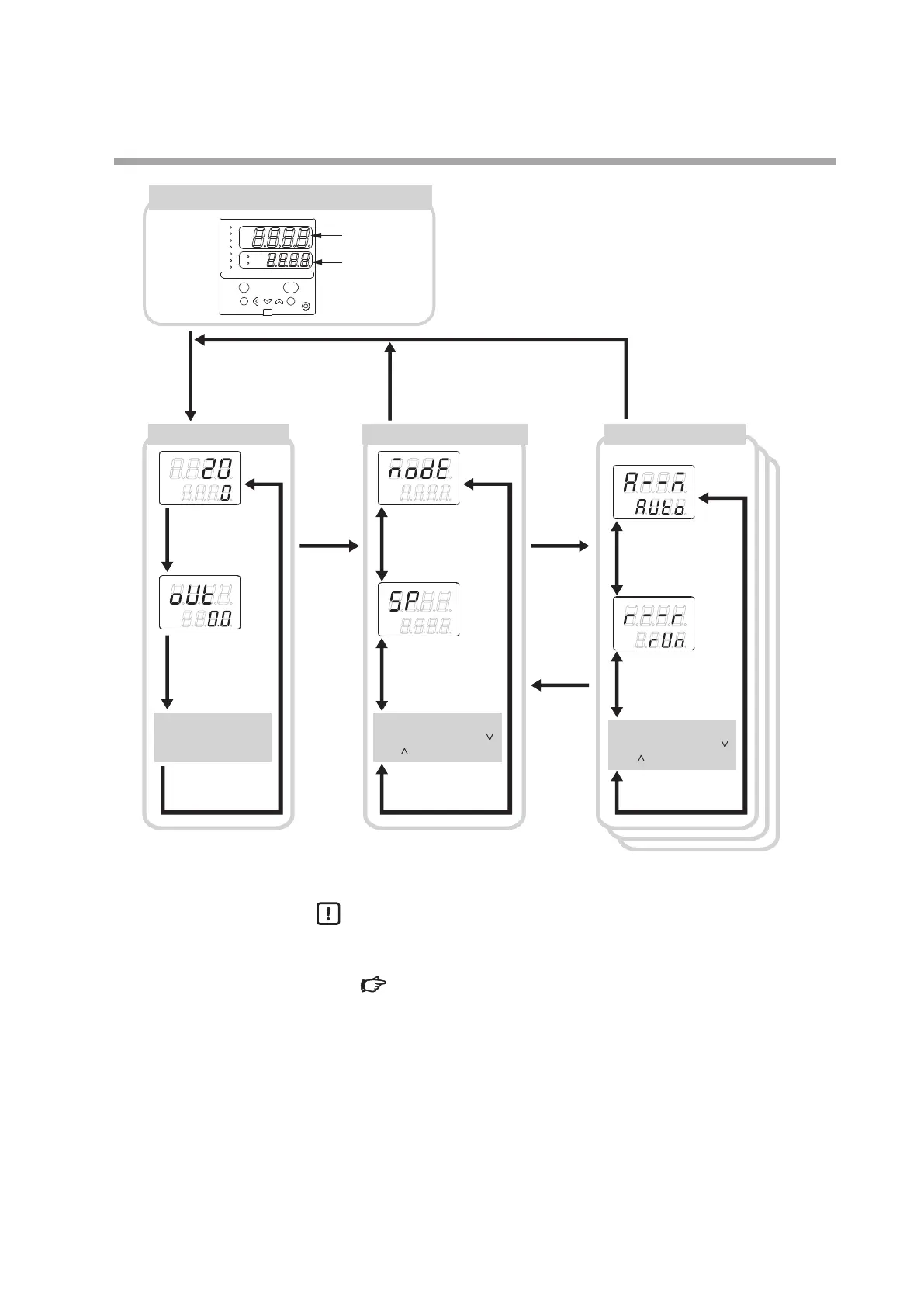

Mode bank selection
SP bank selection
Other display and setup
(Operate the [display]
key repeatedly.)
PV/SP display
Press the [display] key.
Press the [display] key.
Press the [display] key.
MV display
Press the [para] key.
Press the [ ] [ ] key.
Other banks
(Operate the [para], [ ]
and [ ] keys repeatedly.)
AUTO/MANUAL
change
RUN/READY change
Other setup
(Operate the [para], [ ]
and [ ] keys repeatedly.)
Keep the
[para] key
pressed
for 2 sec.
or longer.
<
<
Press the [para] key.
Press the [ ] [ ] key.
<
<
Press the [para] key.
Press the [ ] [ ] key.
<
<
Press the [para] key.
Press the [ ] [ ] key.
<
<
Press the [para] key.
Press the [ ] [ ] key.
<
<
Press the [para] key.
Press the [ ] [ ] key.
<
<
Handling Precautions
• For details about display and setup contents of the operation display,
Bank selection display, and Bank setup display,
6 - 1 List of Operation Displays (p.6-1),
6 - 2 List of Parameter Setting Displays (p.6-3) and
6 - 3 List of Setup Setting Displays (p.6-12).
In the lists shown above, the banks to which each setting item is
belonged are described.
• When pressing the [<] key with the [para] key kept pressed instead of
pressing of the [para] key on the setting display, various displays and
settings can be operated in the reverse order. However, the operation
that both the [para] key and [<] key are kept pressed for 2 s or longer, is
invalid.
• When pressing the [<] key with the [display] key kept pressed instead of
pressing the [display] key in the operation display mode, various displays
and setting displays can be operated in the reverse order.
