Azbil Corporation Introduction
MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector 1-9
1.3.5: Detector terminal box
The detector terminal box houses the connection terminals used for applying a
standard voltage. Houses the excitation and signal terminals.
WARNING
ELECTRIC SHOCK HAZARD! Turn o power to the converter side before
wiring.
CAUTION
The detector must be grounded (grounding resistance is <100 W) to avoid output
uctuation, zero point instability or output drift.
Grounding terminal
Signal terminals
Excitation terminals
Conduit wiring
connectors

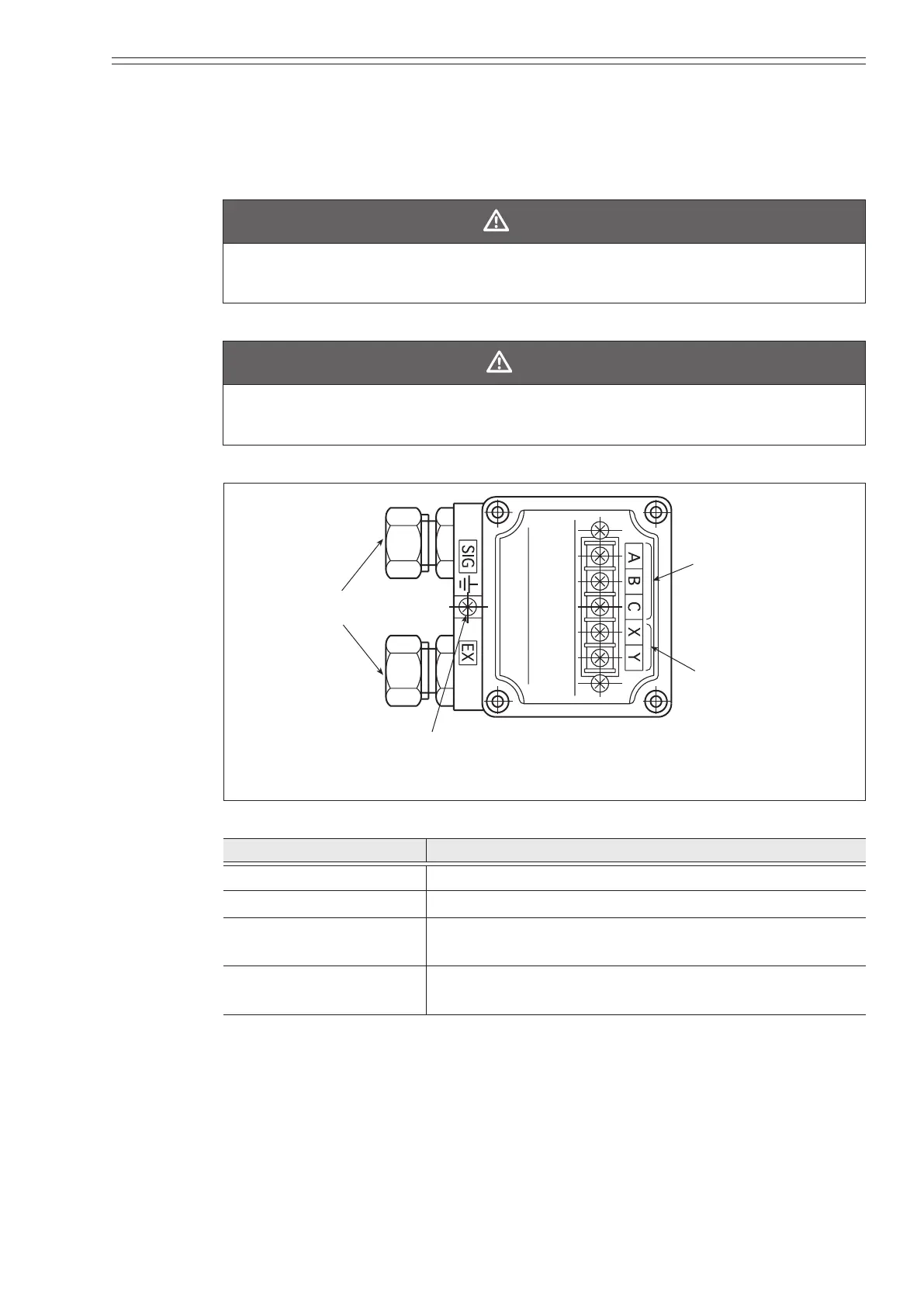

Figure 1-8 Detector terminal box main parts
Name Function
Signal terminals Marked A, B and C.
Excitation terminals Marked X and Y.
Conduit wiring
connectors
The excitation cable and the signal cable are wired
through these connectors.
Grounding terminal This terminal is used to ground the detector (grounding
resistance is <100 W).
