MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector 2-5
400 mm
400 mm
(15.75 inches)

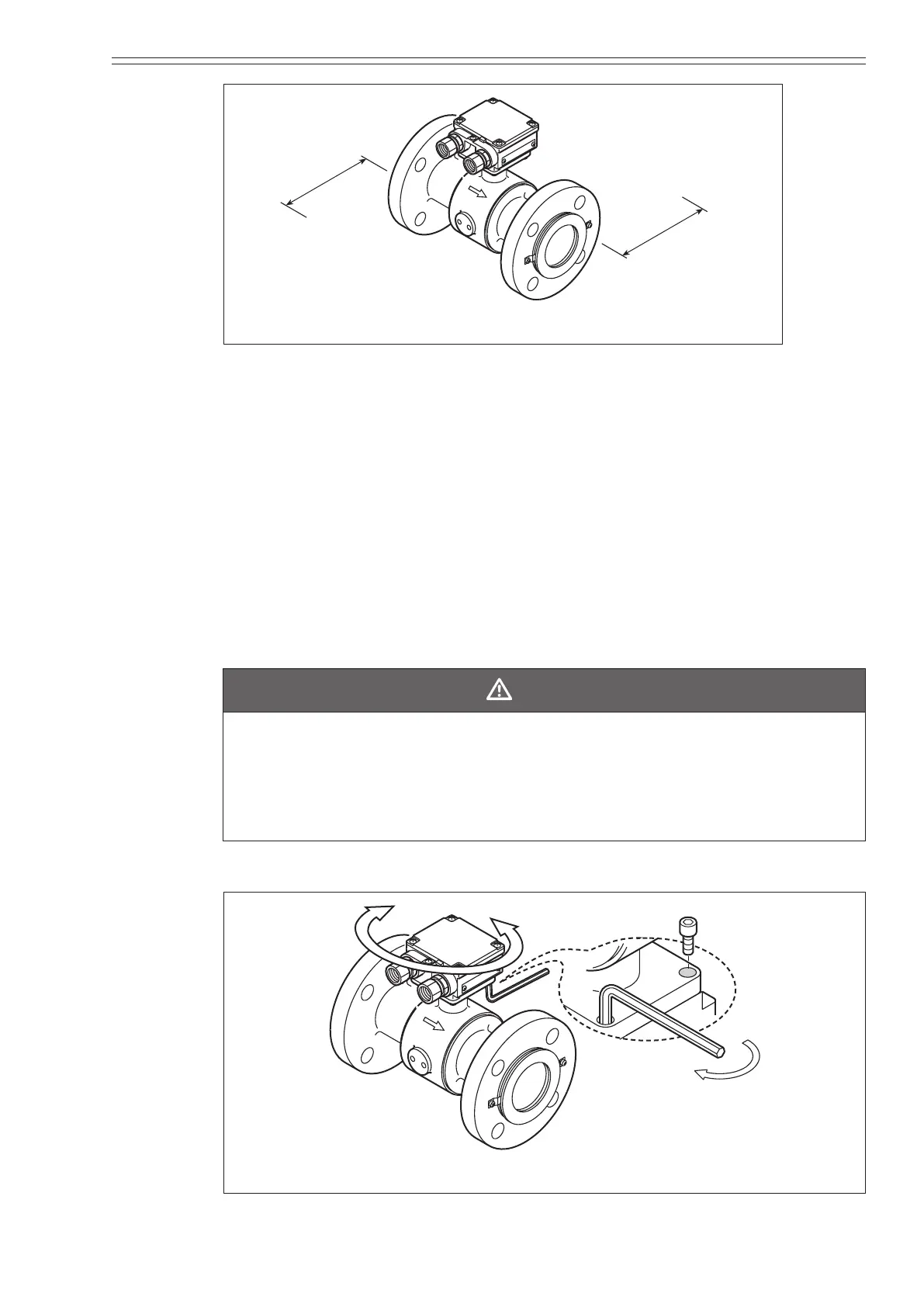

Figure 2-3 Space allowance required for maintenance
2.3.2: Changing the position of the terminal box
In some locations, the direction of the terminal box may be unsuitable if the detector
is installed as it is shipped. In this case, the terminal box can be repositioned before
installation.
After selecting an installation site, adjust the direction of the terminal box using the
method described below.
To change the position of the terminal box:
(1) Using an M5 wrench, remove the four screws securing the terminal box to the
detector.
(2) Holding the detector, rotate the terminal box horizontally to the required position.
CAUTION
Do not rotate the terminal box more than 180° (one half rotation). Any further
rotation can disconnect wiring.
After removing the screws, do not pull on the terminal box. The lead wire can be broken.
When you move the terminal box, make sure the O-ring remains in the groove to
insure an air-tight seal when the unit is reassembled.
(3) Using a hex wrench, retighten the four screws.
Hexagonal wrench
Bottom view
Figure 2-4 Repositioning the terminal box
