MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector 2-37
To install a anged detector on a PVC pipe using SUS grounding ring material
and a protective plate:
Use this method to install the detector using a protective plate to prevent the PVC
pipe from being deformed or damaged when the bolts are tightened with the specied
torque.
• Install the protective plate between the outer side of the PVC ange and the
detector, as shown in the gure below. The protective plate protects the PVC
pipe. The torque level for tightening the bolts is not related to the gasket material.
See Table 2-6 on page 2-26 for the appropriate torque.
See Table 2-7 on page 2-31 for the inner diameter of the gasket.
Protective plate
Lining
Grounding ring
Gasket

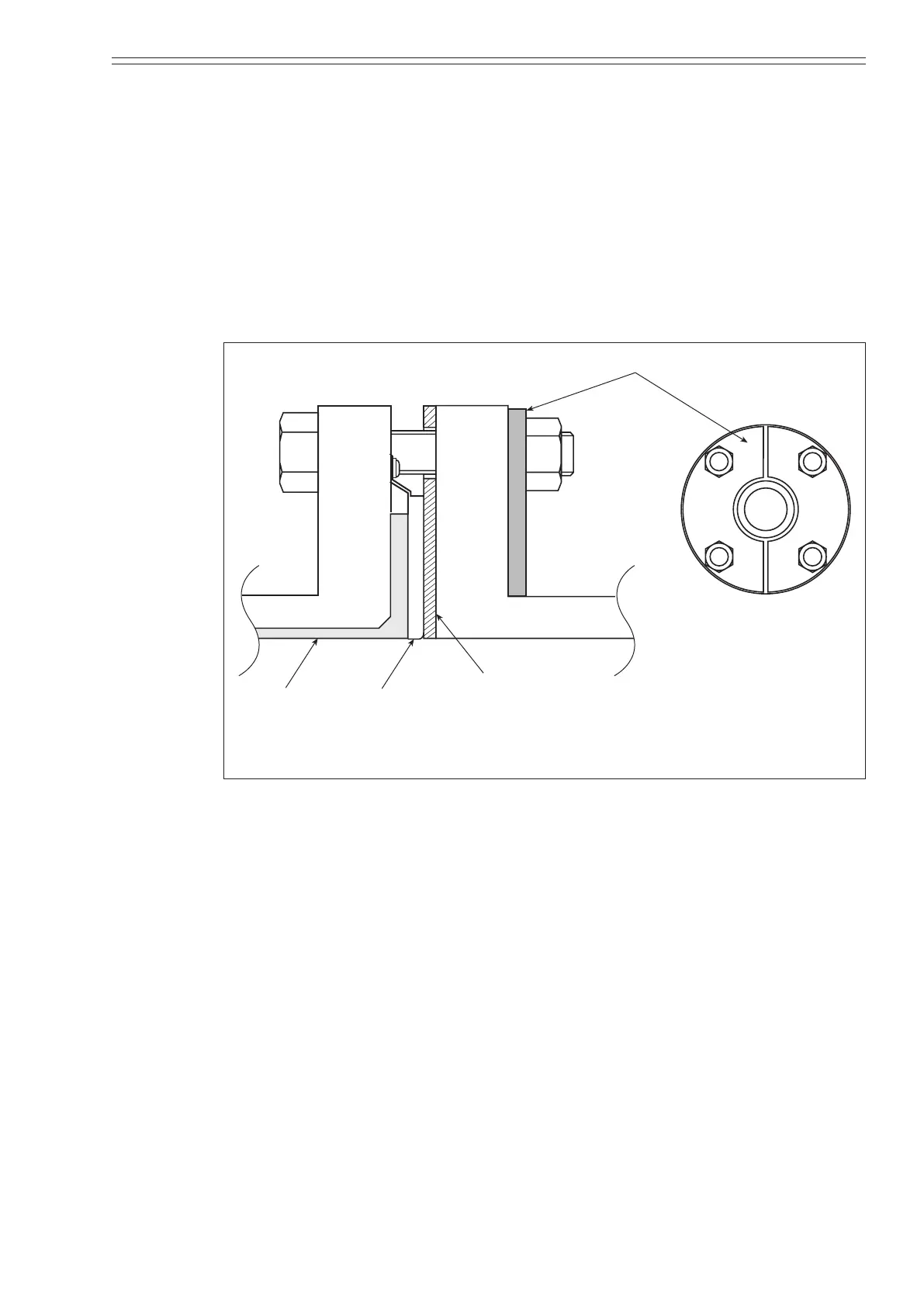

Figure 2-28 Installation on a PVC pipe using SUS grounding ring material and a
protective plate
