Installation Azbil Corporation
2-42 MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector
To install a anged detector on a PVC pipe using non-SUS grounding ring
material with rubber gaskets and a low fastening torque:
(1) Remove the grounding ring from the detector and insert a rubber gasket 0.5 to 1.0
mm (0.02 to 0.04 inch) thick.
(2) Reinsert the grounding ring on top of the rubber gasket.
(3) Remove the PTFE gasket and insert a rubber gasket 3.0 to 4.0 mm (0.12 to 0.16
inch) to replace it.
(4) With the rubber gaskets in the position shown in the following gure, attach the
detector to the pipe. Both rubber gaskets should be made of the same material.
See Table 2-3 on page 2-11 and Table 2-4 on page 2-11 for the appropriate
dimensions.
Lining
Rubber Gasket
3 to 4 mm
(0.12 to 0.16 inch)
Grounding ringRubber gasket
0.5 to 1 mm
(0.02 to 0.04 inch)

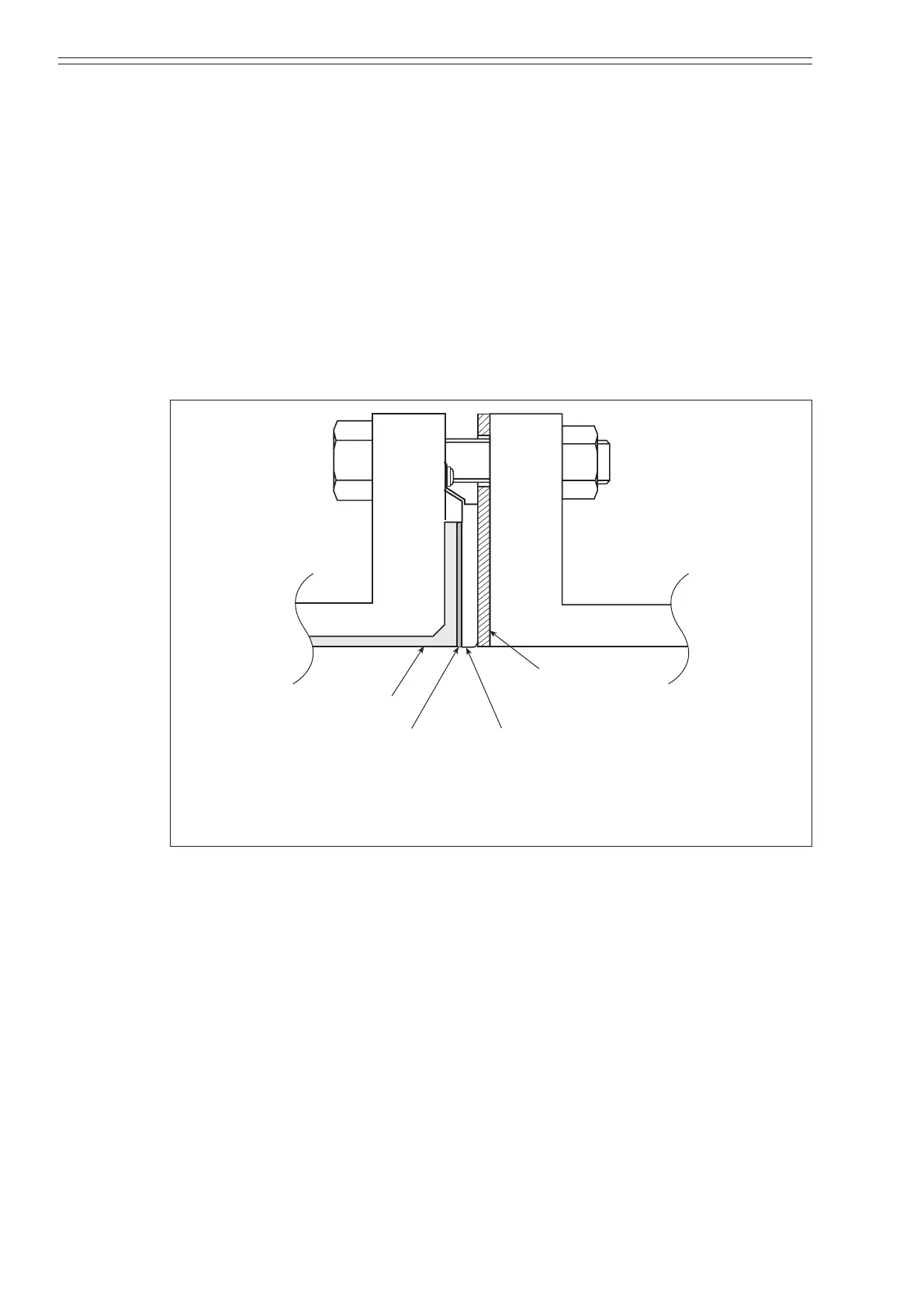

Figure 2-32 Installation on a PVC pipe using non-SUS grounding ring material
with rubber gaskets
(5) Fasten the bolts with a torque that provides a leakproof joint.
