Installation Azbil Corporation
2-44 MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector

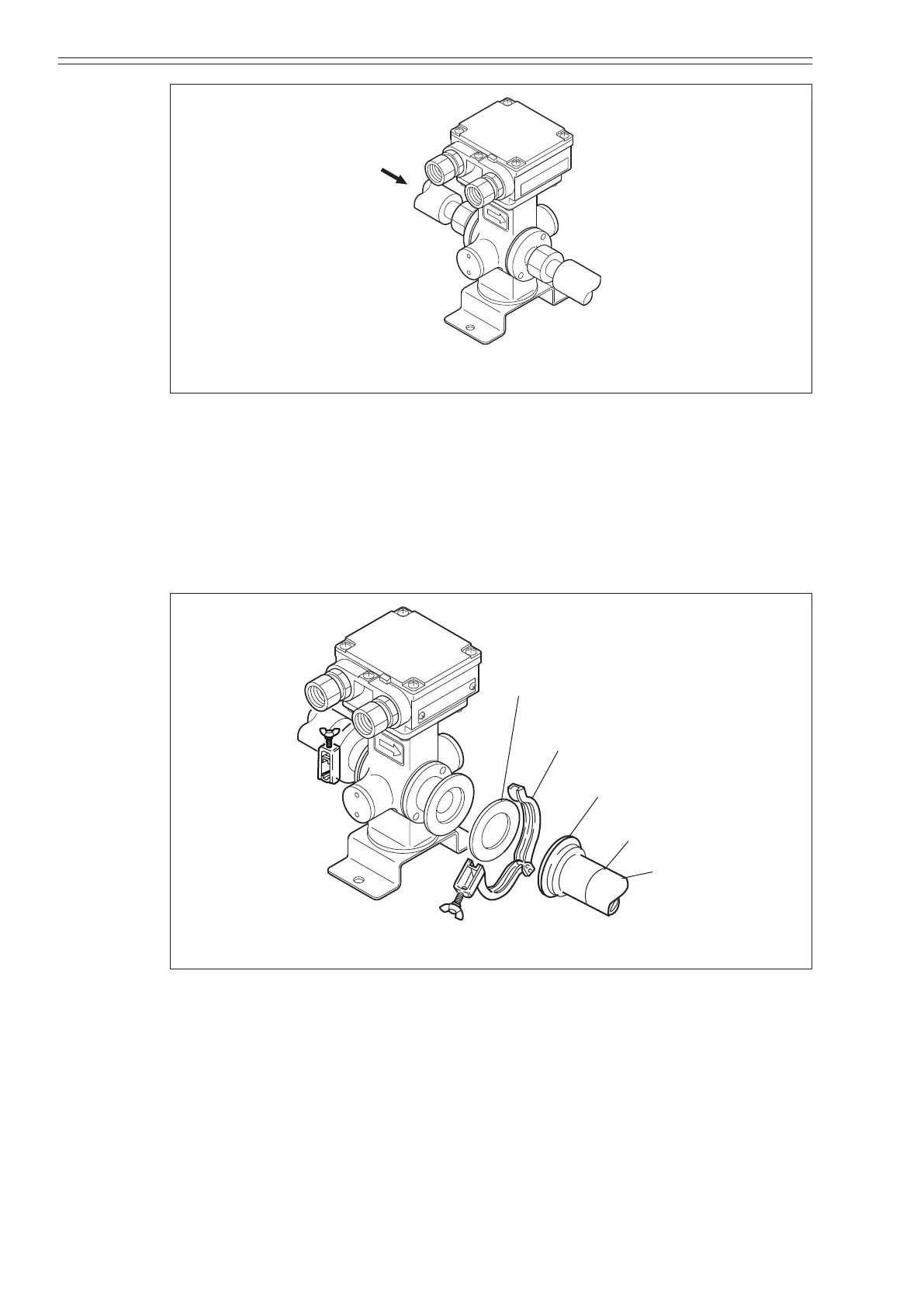

Figure 2-33 Example of installation (union assembly)
2.6.2: Installation of ISO-clamp/ Tri-clamp assembles basic
installation method
Example of clamp assembly
Welding
Pipe
Ferrule
Clamp
Gasket
Figure 2-34 Example of installation
Welding a ferrule to the pipe
Weld the supplied ferrule onto the pipe. In the welding process, pay special attention
to the taper processing, butting stages, welding current, etc. When welding ensure
that there is no residual uid in the meter and that the clamp section does not become
distorted.
