Azbil MagneW FLEX+ User Manual

Installation Azbil Corporation
2-40 MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector
To install a anged detector on a PVC pipe using non-SUS grounding ring
material with a specied fastening torque:
• Install the detector as shown in the following illustration. The torque level for
tightening the bolts is not related to the gasket material.
See Table 2-6 on page 2-26 for the appropriate torque.
See Table 2-7 on page 2-31 for the inner diameter of the gasket.
Lining
Rubber gasket
3 to 4 mm
(0.12 to 0.16 inch)
Grounding ringRubber gasket
0.5 to 1 mm
(0.02 to 0.04 inch)

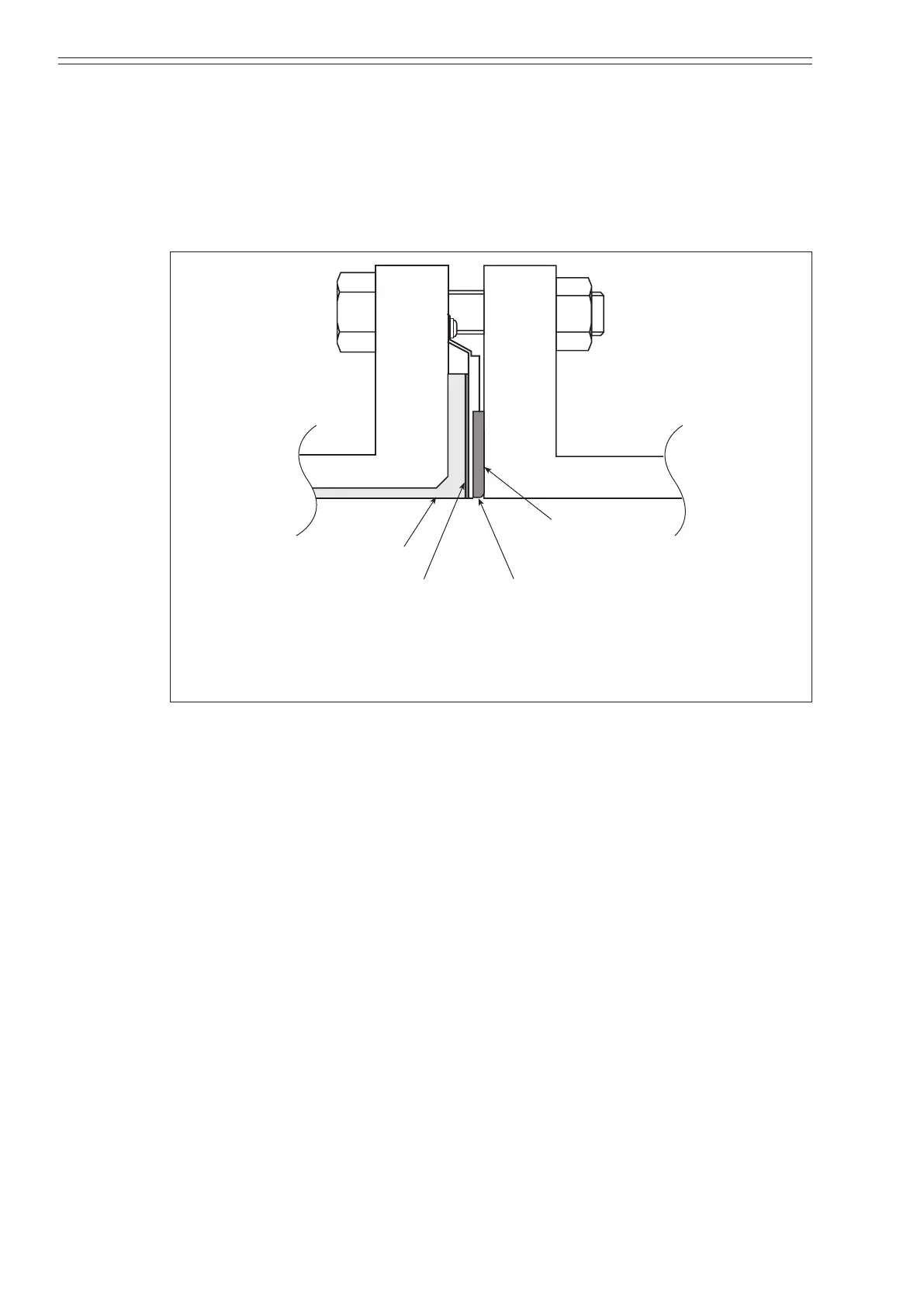

Figure 2-30 Installation on a PVC pipe using Non-SUS grounding ring material
and a specied torque
