MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector 2-13
2.4.5: Installation on a horizontal pipe
To install a wafer detector on a horizontal pipe:
Follow this procedure to install the detector on a horizontal pipe.

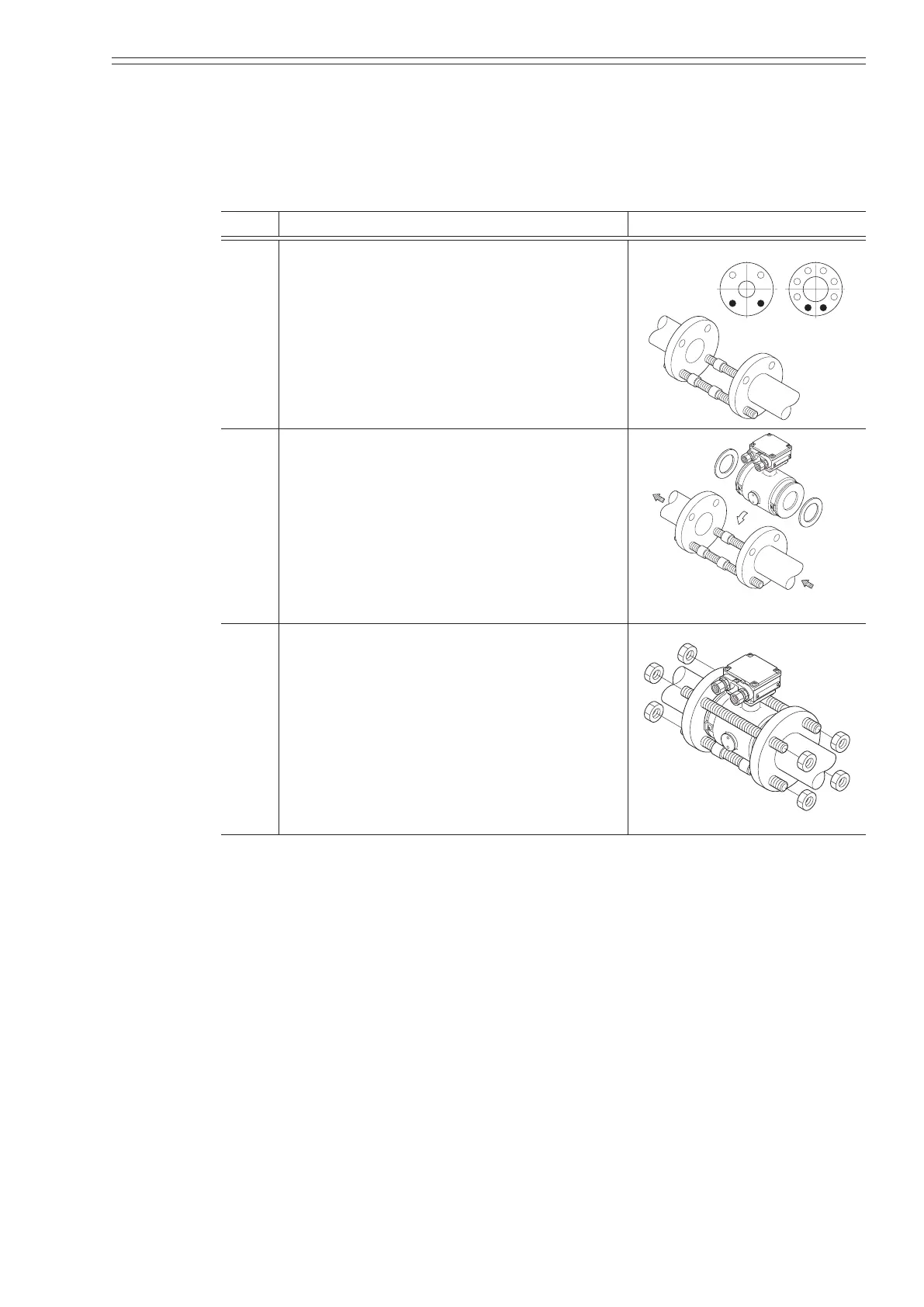

Step Action Drawing
1 • Insert through-bolts in the ange holes
shown by black dots in the drawing. Slip
two centering nuts onto each through-bolt
before inserting the bolts.
Flange
2 • Turn the detector so that the direction mark
on the detector matches the direction of
uid ow.
• Insert the detector and gaskets between the
pipe anges.
• Position the detector so that it sits on top of
the centering.
Gasket
Direction o
f
fluid flow
3 • Make sure that the detector remains
properly centered.
• Make sure that the gaskets do not protrude
beyond the edges of the pipe anges.
• When you have checked these items, insert
the remaining through-bolts into the ange
holes and tighten the bolts evenly using the
appropriate fastening torque given on page
2-7.
