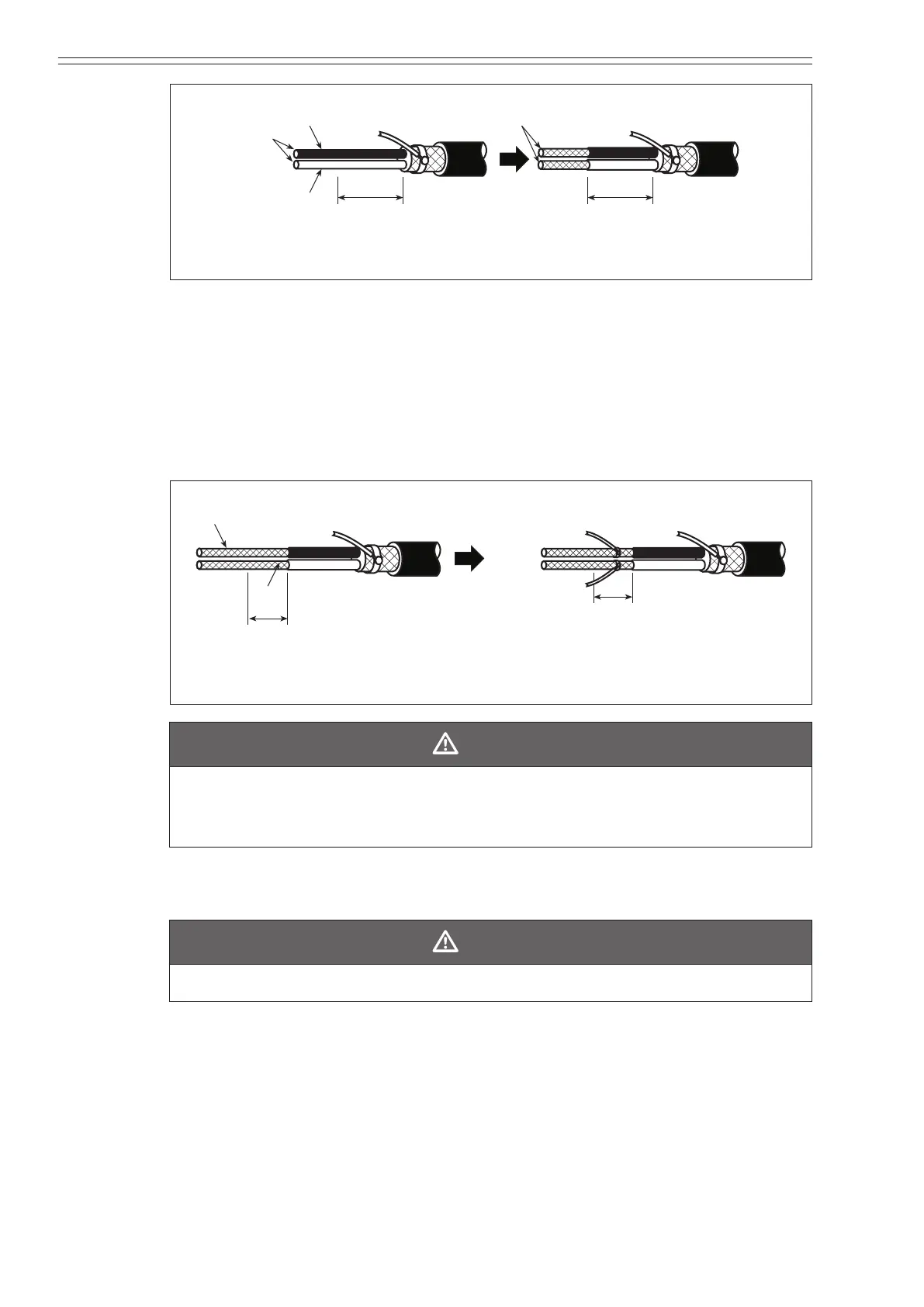

Azbil MagneW FLEX+ - Figure 2-42 Trimming the Inside Sheath; Figure 2-43 Attaching the Lead Wires (SA and SB)

Installation Azbil Corporation
2-50 MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector
15 mm
(0.59 inch)
C-wire
Inside
shield
White
C-wire
Black
15 mm
(0.59 inch)
Inside
sheath
Figure 2-42 Trimming the inside sheath
(6) Wind each lead wire (SA and SB) around the inside shield once.
(7) Solder the lead wired (SA and SB) to the middle of this 5 mm (0.2 inch) length.
Be sure to keep the two inside shields separate from each other to prevent them
from being bonded together by mistake during soldering. The length of the lead
wires should be measured from this point. Make the length of the lead wires
slightly longer than necessary (see the operating manuals for the products) and
trim to the specied length in Step 10.
5 mm
(0.2 inch)
C-wire
Inside
shield
Inside
shield
5 mm
(0.2 inch)
C-wire
SA-wire
SB-wire
A-wire
B-wire
Attach the wire to the
middle of this 5 mm
(0.2 inch) length.
Figure 2-43 Attaching the lead wires (SA and SB)
CAUTION
Be sure to use adequate solder so that contact failure will not occur between the
C -wire and the outside shield. If the soldering connection is insecure, noise is
generated due to contact resistance.
(8) Cut the inside shield o at a point 5 mm (0.2 inch) from the inside sheath.
CAUTION
Do not cut into the conductive tube.
