Installation Azbil Corporation
2-34 MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector
2.5.5: Installation on a metal pipe using non-SUS
grounding ring material
The installation method described in this section is for installation on a metal pipe
using non-SUS grounding ring material. For the installation method corresponding to
any other combination of materials, refer to Table 2-8 on page 2-32.
PTFE gaskets are provided for this type of installation. If you supply the gaskets,
Azbil Corporation recommends non-rubber gaskets such as joint sheet or PTFE.
To install a anged detector on a metal pipe using non-SUS grounding ring
material and a specied torque:
• Install the detector as shown in the following illustration. The torque level for
tightening the bolts is not related to the gasket material.
See Table 2-6 on page 2-26 for the appropriate torque.
See Table 2-7 on page 2-31 for the inner diameter of the gasket.

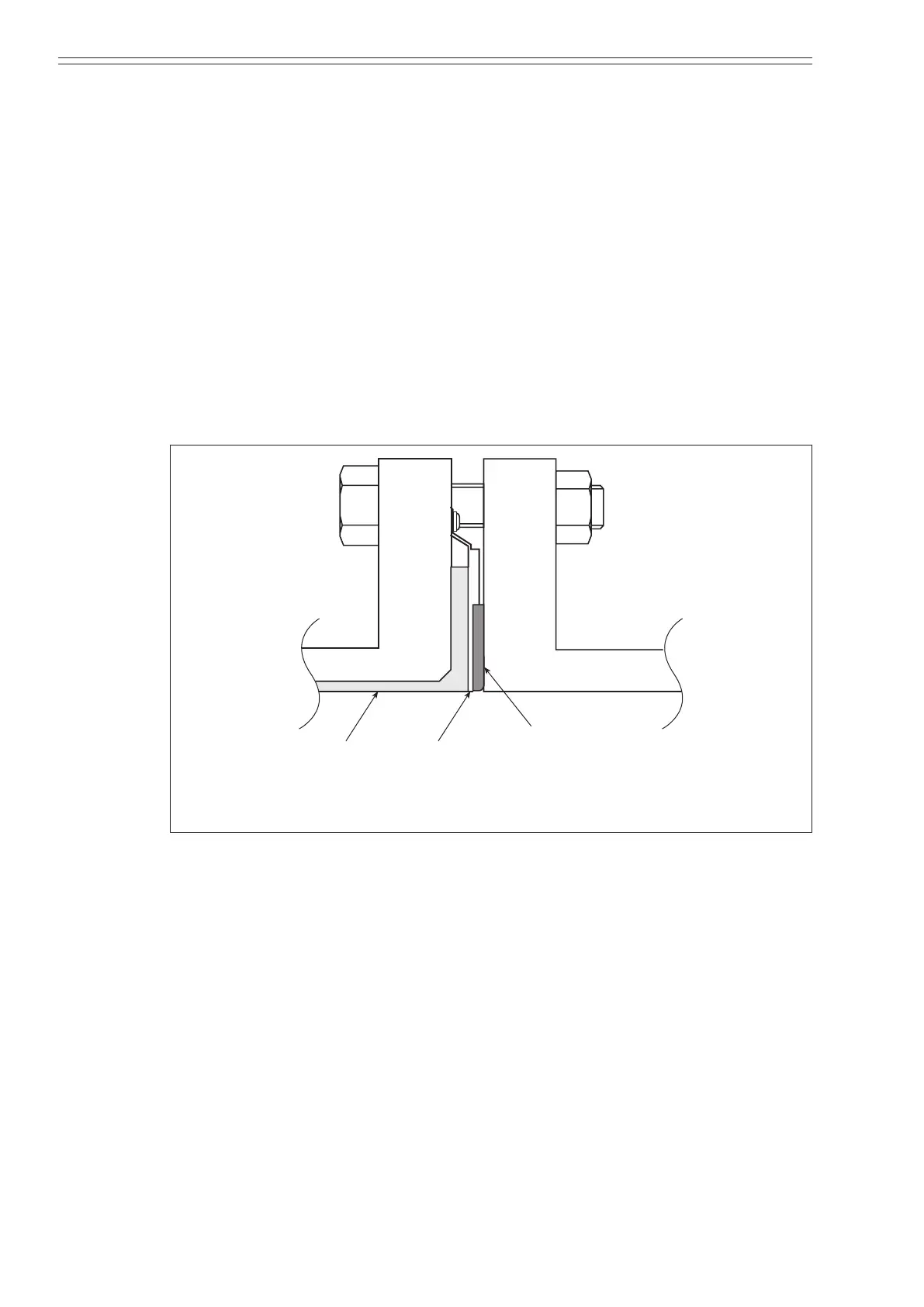

Lining
Grounding ring
PTFE gasket
(supplied)
Figure 2-25 Installation on a metal pipe using non-SUS grounding ring material
and a specied torque
