MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector 2-53
Dressing the dedicated cable : Detector side
To dress the dedicated cable:
(1) Scribe (cut) a line in the outside sheath (black) as shown in the following gure
and remove the sheathing. The length is 75mm (2.95 inch).
CAUTION
Do not cut into the outside shield.
75 mm (2.95inch) 75 mm (2.95inch)
Outside shieldOutside sheath (black)

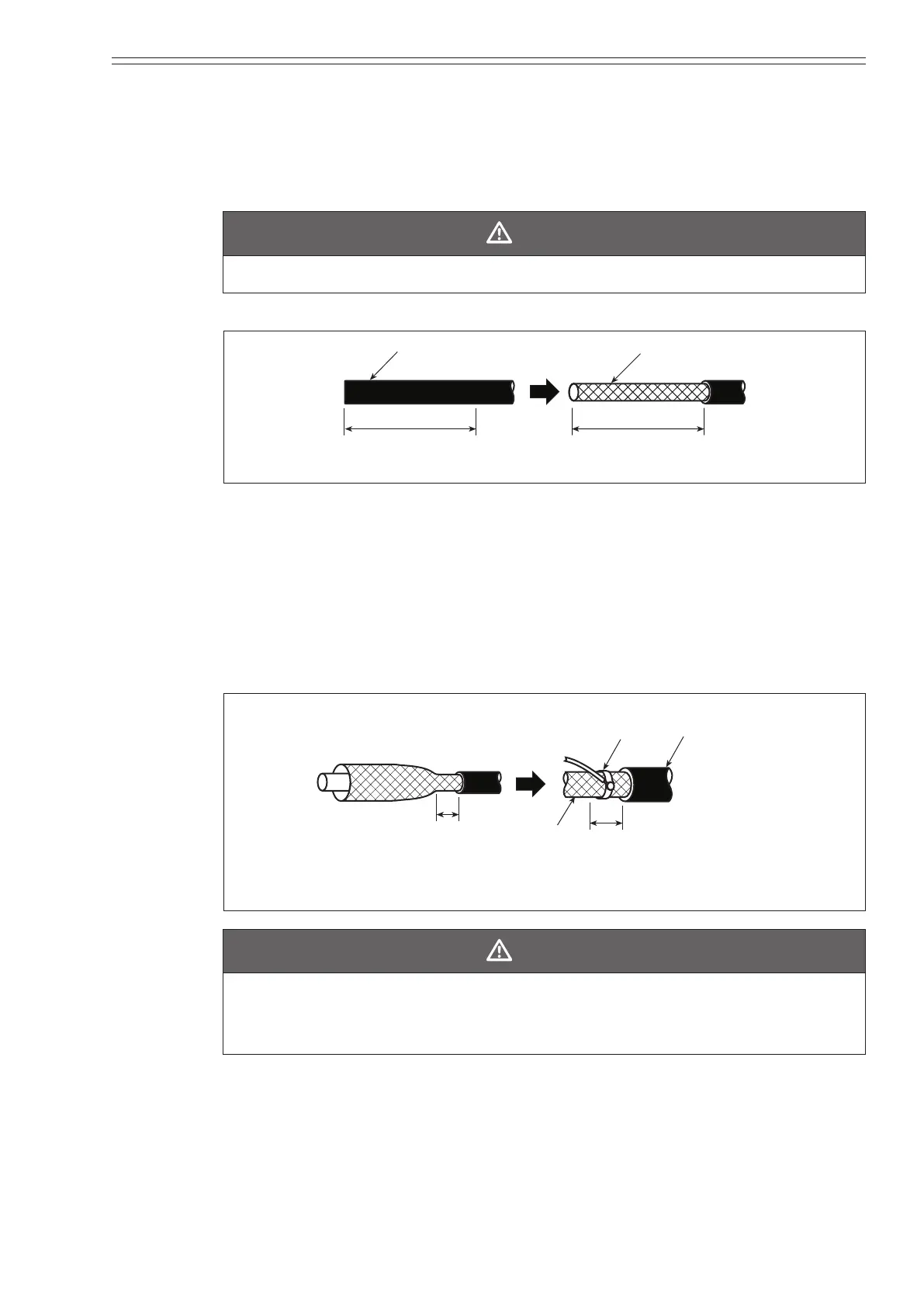

Figure 2-48 Trimming the outside sheath
~Note
If the terminal of the converter is designed not to use a shield drive,
remove the outside shield and skip to Step 4.
(2) Wind the lead wire once around the outside shield.
(3) Solder the lead wire (C-wire) to the middle of the 5 mm (0.2 inch) length. Make
the length of the lead wire slightly longer than necessary and trim it to the
specied length in Step 10.
5 mm
(0.2 inch)
Attach the lead wire
to the middle of this
5 mm (0.2 inch) length.
Outside
shield
C-wire
Lead wire
Outside
sheath
5 mm
(0.2 inch)
Figure 2-49 Attaching the C-wire
CAUTION
Be sure to use adequate solder so that contact failure will not occur between the
C-wire and the outside shield. If the soldering connection is insecure, noise is
generated due to contact resistance.
~Note
If the outside shield is not allowed to bend during soldering, in some
cases, the conductive tube cannot be peeled o due to the heat of the
solder.
