Azbil Corporation Installation
MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector 2-9
2.4.3: Necessary parts
You will need the following parts to install a wafer detector:
• Centering nuts (four supplied)
• Connecting bolts and nuts (available separately)
• Gaskets: Required when using grounding rings made of SUS material. Not
required when using grounding rings made of hastelloy, titanium, tantalum, or
platinum.
• Protective Plate: Required when connecting the detector to polyvinyl chloride
(PVC) piping.
Centering nuts
The centering nuts create the exact alignment of the pipe and detector. These nuts
are positioned on through-bolts and the detector is set on top of the nuts to properly
position it against the anges.
The position of the centering nuts depends on the direction in which the detector is
installed. For horizontal centering of the detector, position two centering nuts against
each ange. For vertical centering of the detector, position the four centering nuts on
the bottom ange. The following gures show horizontal and vertical centering nut
positions.
Flange
Centering nut
position

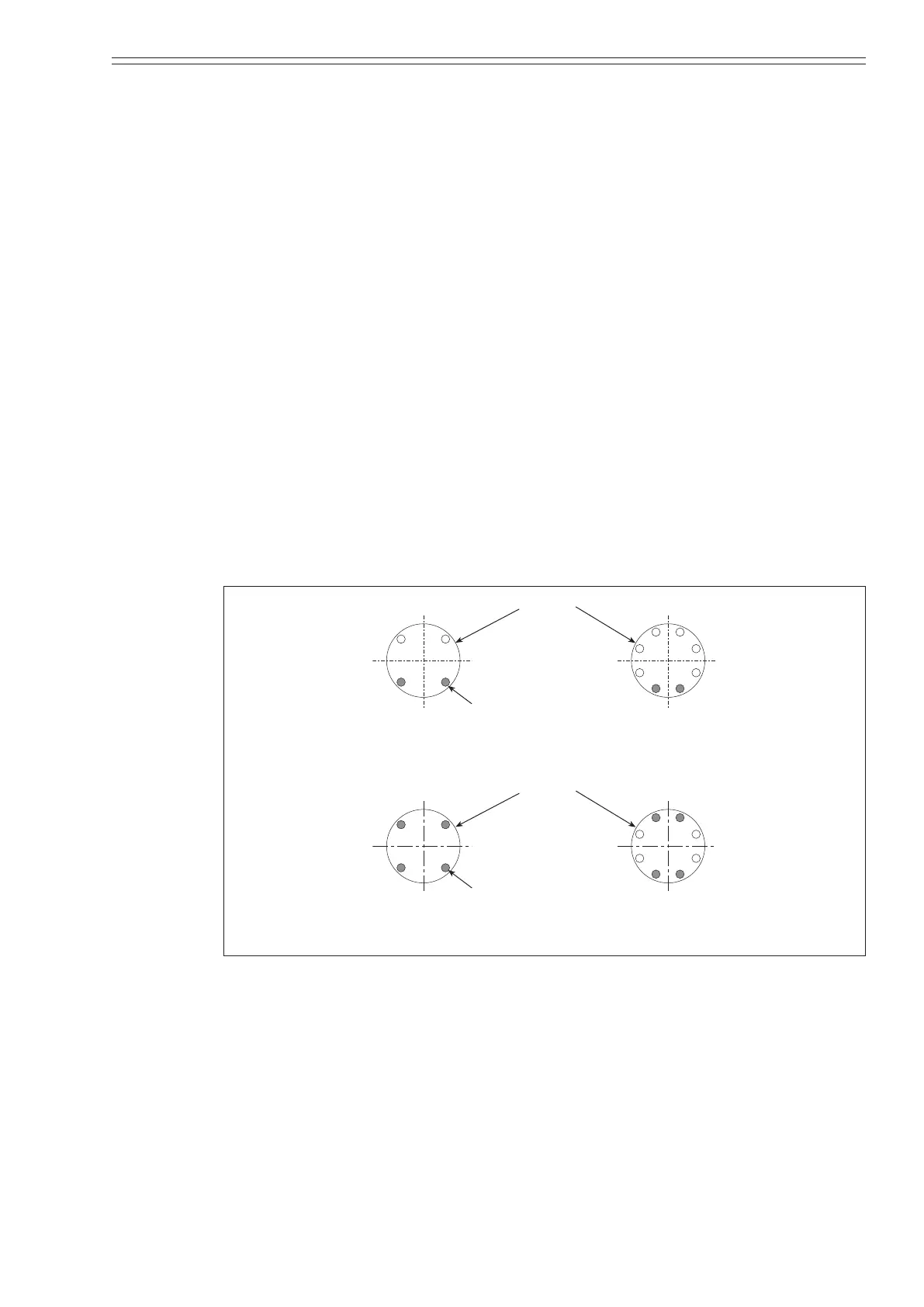

Figure 2-9 Centering nut positioning for horizontal centering
Flange
Centering Nut
Position
Figure 2-10 Centering nut positioning for vertical centering
