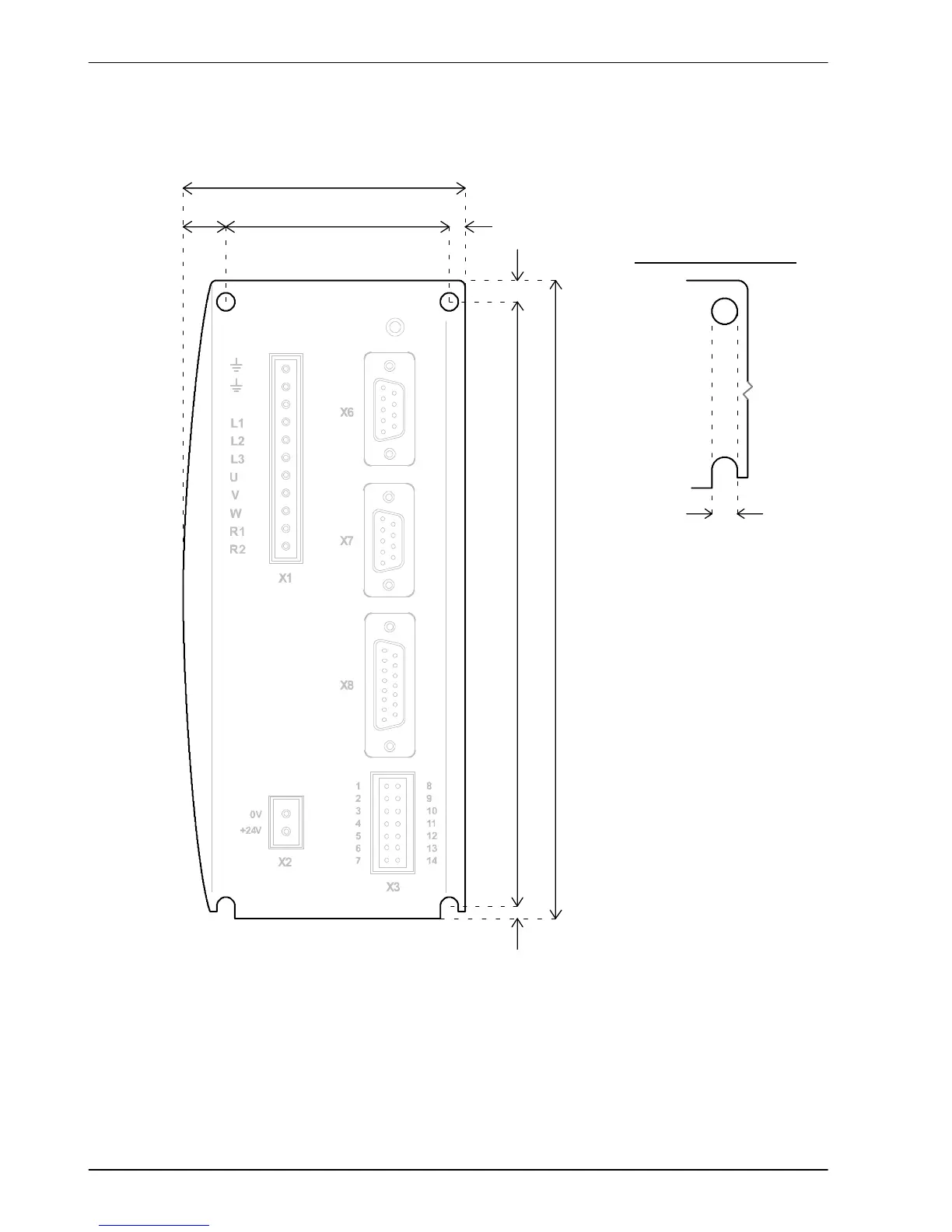

3.2.1 Dimensions
80
(3.2 )
63.5
(2.5 )
11
(0.4 )
167.7
(6.6 )
180
(7.1 )
6
(0.24)
6
(0.24)
5
(0.2 )
FRONT
PANEL
Mounting hole and slot detail
5.5 mm
Dimensions shown as: mm (inc hes).
Depth: 157 mm (6.2 in)
Weight: 1A: 1.45kg (3.2lb)
3A: 1.45kg (3.2lb)
6A: 1.50kg (3.3lb)
9A: 1.55kg (3.4lb)
Figure 1 - Package dimensions
