A-4 Accessories MN1919
A.1.3 EMC filters
AC filters remove high frequency noise from the AC power supply, protecting the MicroFlex.
These filters also prevent high frequency signals from being transmitted back onto the power
lines and help meet EMC requirements. To select the correct filter, see sections 3.4.7 and 3.4.8.
A.1.3.1 Catalog numbers
Baldor
catalog number
Rated volts
Rated amps
@ 40°C
Leakage current
(mA)
Weight
kg (lbs)
FI0014A00 250 3 0.4 0.27 (0.6)
FI0015A00 250 6 0.4 0.45 (0.99)
FI0015A01 250 10 0.4 0.73 (1.61)
FI0015A02 250 12 0.4 0.73 (1.61)
FI0018A00 480 7 33 0.5 (1.1)
FI0018A03 480 16 33 0.8 (1.76)
FI0029A00 250 22 33 3.0 (6.6)
B
M5
A
F
C
E
D
G

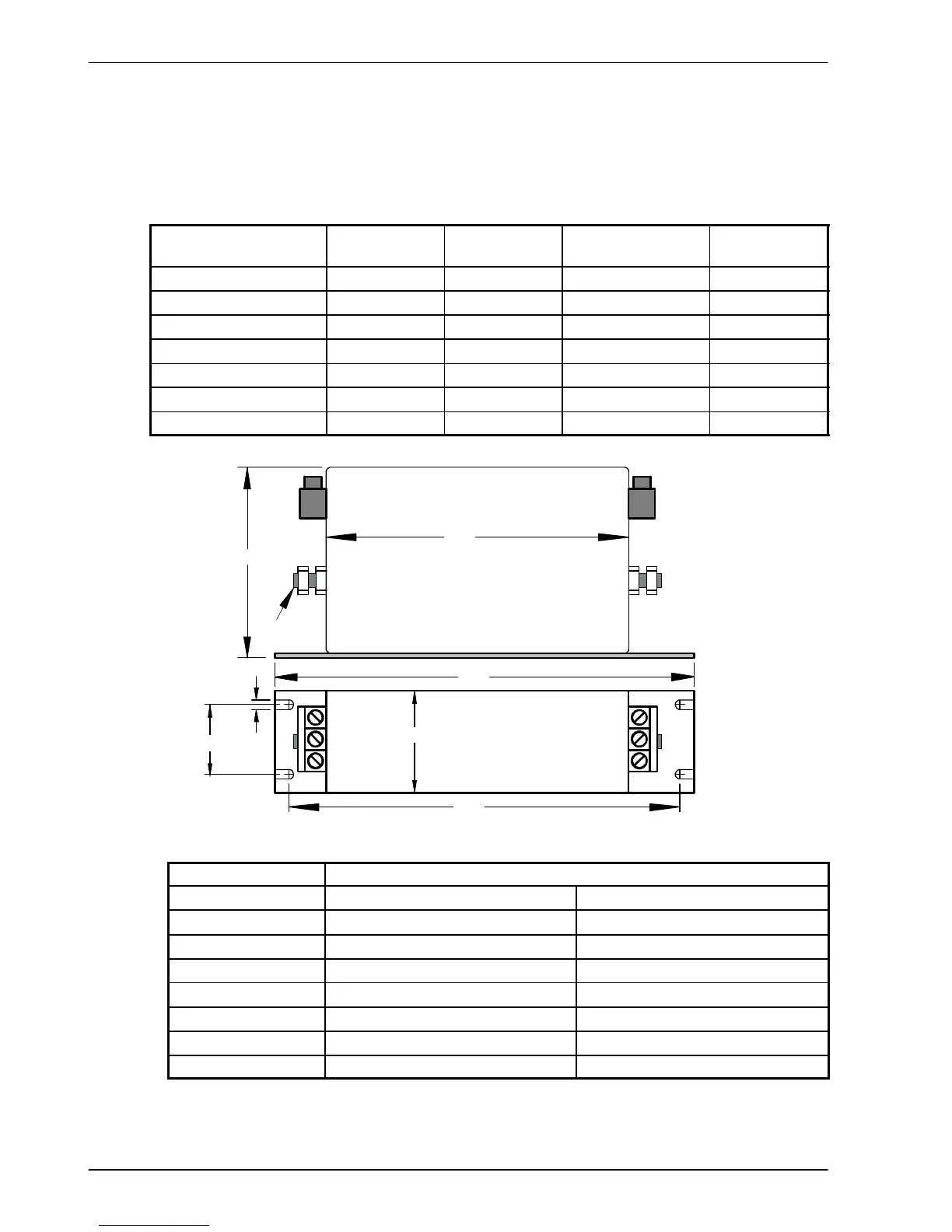

Dimensions mm (inches)
Dimension FI0018A00 FI0018A03
A 190 (7.48) 250 (9.84)
B 160 (6.30) 220 (8.66)
C 180 (7.09) 235 (9.25)
D 20 (0.79) 25 (0.98)
E 4.5 (0.18) 5.4 (0.21)
F 71 (2.80) 70 (2.76)
G 40 (1.57) 45 (1.77)
Figure 47 - Filter dimensions, types FI0018A00 and FI0018A03
