Banner AG4 Series Safety Laser Scanner
NOTE: A dialog box may appear that says that there is a problem in identifying a serial port. If so, see Section 4.3.1
Establishing Communications Between the PC and the Scanner.
A dialog box should appear and ask if you would like to edit the configuration with the wizard; if so, click OK. If not
prompted, the wizard can also be accessed by clicking on the ―Configuration‖ operating mode tab and then selecting in
the menu bar path ―Configuration > Wizard‖.
Since no configuration is loaded in the AG4Soft program, an error message will be displayed. Click YES to load a
configuration file.

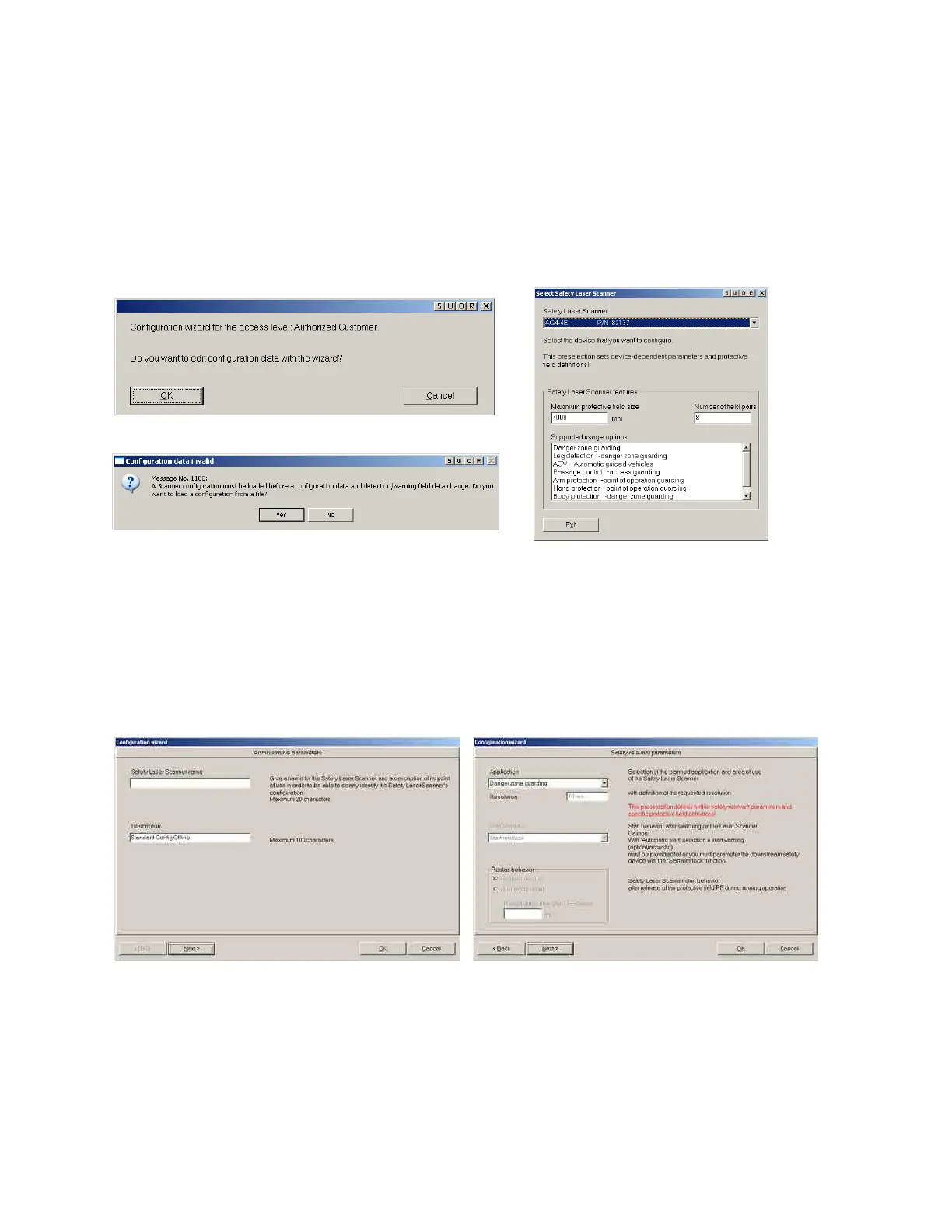

A dialog box asks you to select the appropriate Safety Laser Scanner. Choose AG4-4E or AG4-6E and click EXIT.
For the purpose of this walk-through, select ―standard.rs‖ file (double-click) from the list of configuration files provided in
the ―Select a file to open‖ box. After the file is successfully loaded, click OK.
The Configuration Wizard opens with a dialog box that allows naming of the Scanner and a note or description of the
location of the Scanner that the configuration will eventually be loaded into. No entry is required for the purposes of the
walk-through. Click on NEXT.
Note: Navigation can move forward or backward through the wizard using the NEXT or BACK buttons. Clicking on OK
will end the wizard and open the AG4Soft Configuration window with the changes that had been made. Clicking on
CANCEL will end the wizard without retaining the changes. To re-enter the wizard, click on ―Configuration‖ operating
mode tab and select in the menu bar path, ―Configuration > Wizard‖.
The next few dialog boxes affect safety-relevant parameters. The first allows the choice of application options and
start/restart or reset behavior (dependent on the application, see Section 3 Basic Installation Guidelines).
