Banner iVu Series User Manual

The sensor triggers from high to low, and Remote Teach behaves electrically like trigger.
NOTE: If the device used to trigger or remote teach the iVu TG is a sinking device (that is, NPN), then there
are two options regarding the use of a pull-up resistor:

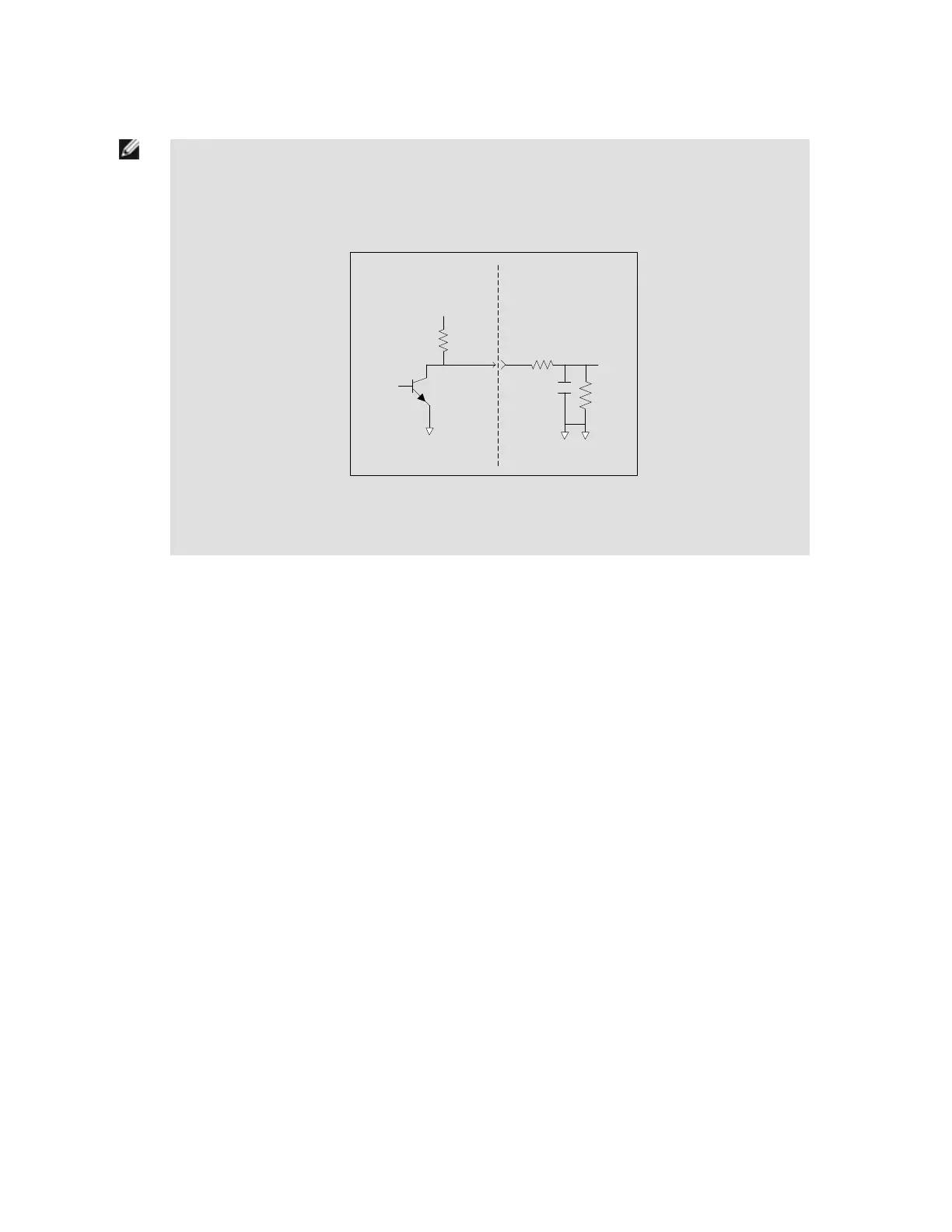

Option 1: Put a pull-up resistor, rated approximately 1k ohm, between the sensor's positive (+) voltage and
the sensor's input as shown below.
Trigger Input
Remote Teach Input
iVu
Pullup Resistor
1k ohm
NPN
VCC
Sinking
Option 2: Enable the Input Pullup in the iVu TG software ( Main Menu > System > Discrete I/O > Input
Pullup ).
iVu Series Image Sensor
Rev. E www.bannerengineering.com - tel: 763-544-3164 13

Banner iVu Series Specifications

General

Accessory Type	Vision Sensor
Sensor Type	CMOS
Resolution	640 x 480 pixels
Light Source	Integrated LED
Communication Interface	RS-232
Ingress Protection	IP67
Operating Temperature	0°C to 50°C (32°F to 122°F)
