Banner iVu Series User Manual

WARNING: Not To Be Used for Personnel Protection
Never use this product as a sensing device for personnel protection. Doing so could lead to seri-
ous injury or death. This product does NOT include the self-checking redundant circuitry necessary to
allow its use in personnel safety applications. A sensor failure or malfunction can cause either an ener-
gized or de-energized sensor output condition.
8.2 Dimensions

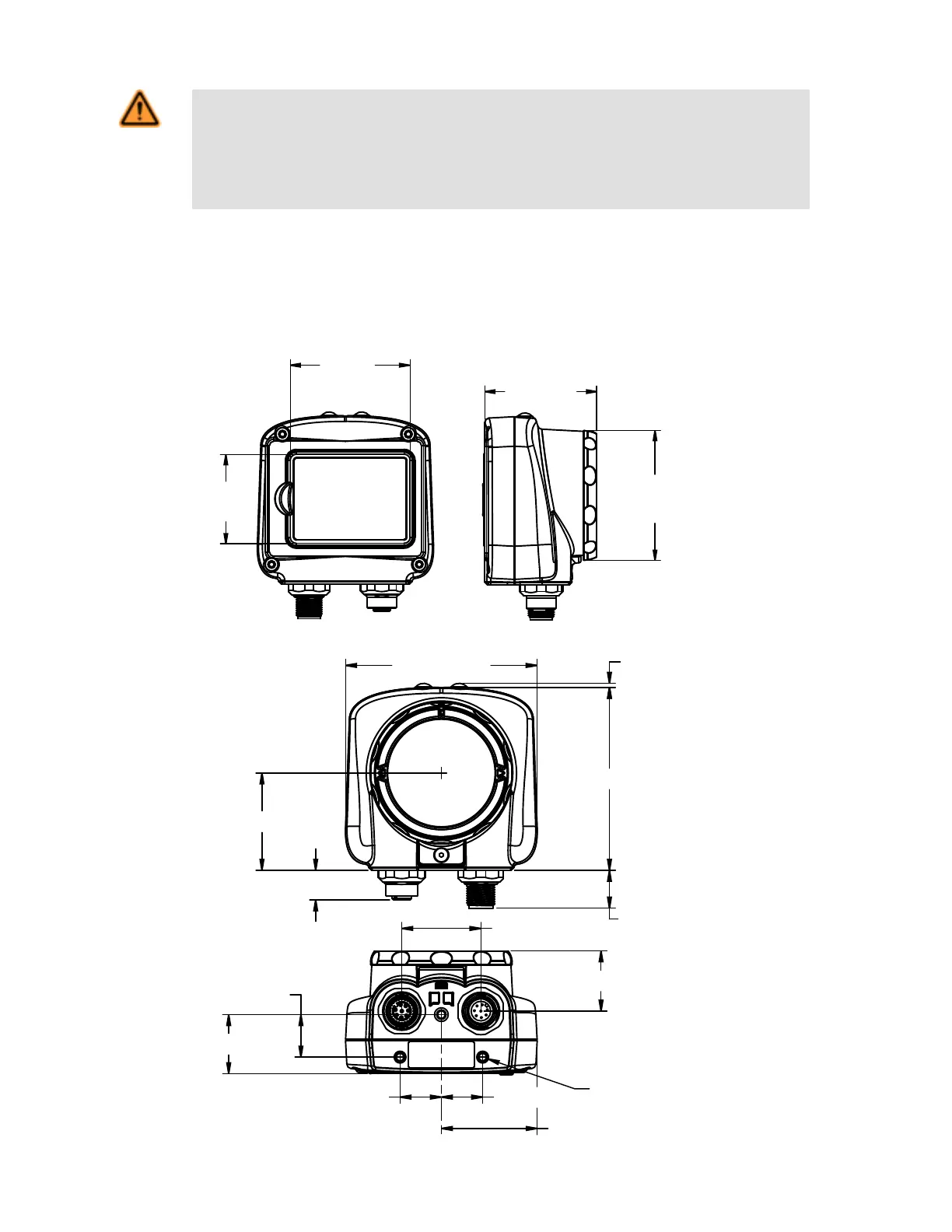

Micro Lens Dimensions
56
[2.2"]
59.7
[ 2.35"]
42
[2.35"]
59.7
[ 2.35"]
12.5 [0.49"]
40.6 [1.60"]
17.5 [0.69"]
17.5 [0.69"]
25.0 [0.99"]
18.0 [0.71"]
41.2 [1.62"]
81.2 [3.20"]
77.5 [3.05"]
1.8 [0.07"]
16.0 [0.63"]
33.5 [1.32"]
25.5 [1.00"]
3x M4
iVu Series Image Sensor
62 www.bannerengineering.com - tel: 763-544-3164 Rev. E

Banner iVu Series Specifications

General

Accessory Type	Vision Sensor
Sensor Type	CMOS
Resolution	640 x 480 pixels
Light Source	Integrated LED
Communication Interface	RS-232
Ingress Protection	IP67
Operating Temperature	0°C to 50°C (32°F to 122°F)
