Banner iVu Series User Manual

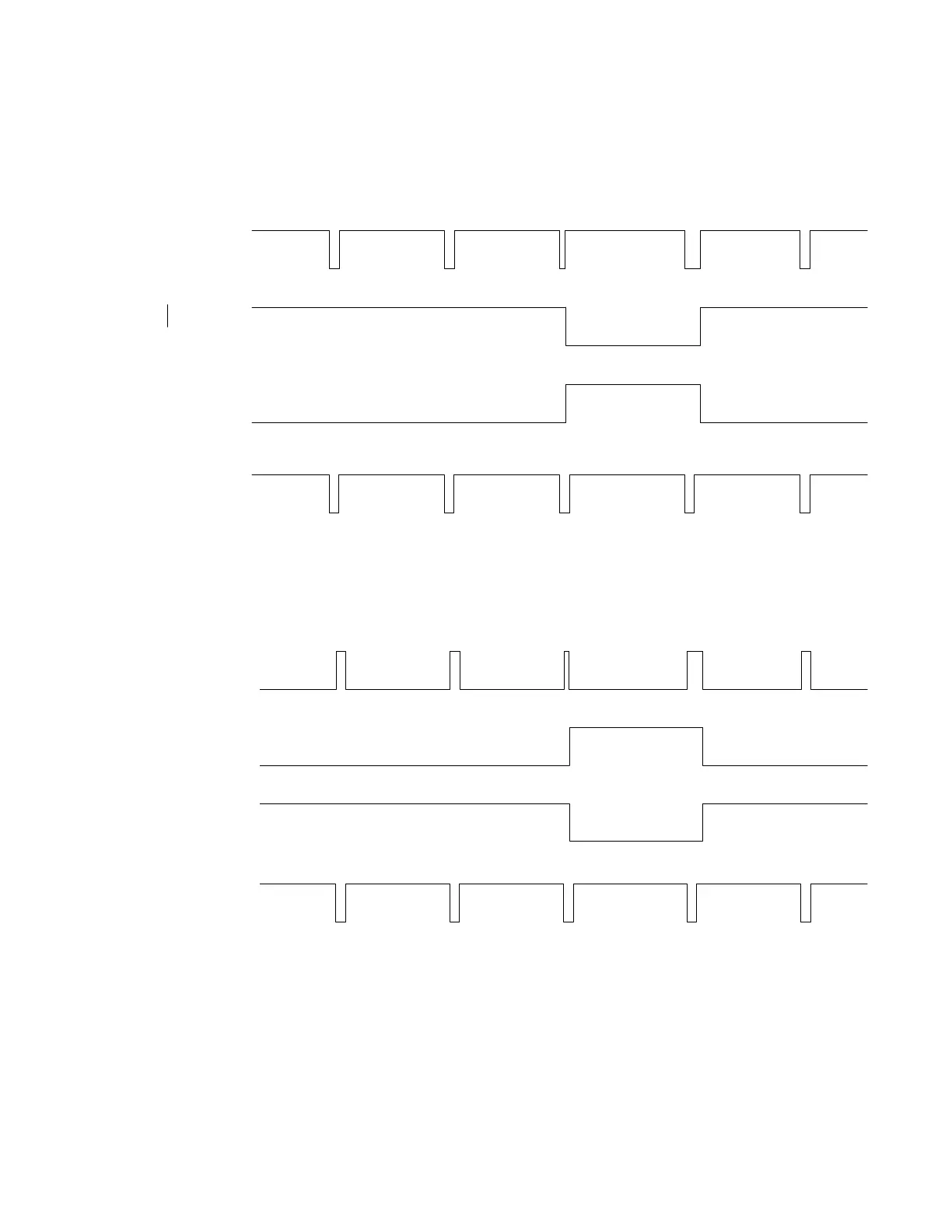

iVu Output Waveforms
PNP Outputs
Ready
(Pass)
(Fail)
(Pass)
(Pass) (Fail) (Pass)
Function
Strobe Out
(Configure as External
& Expose Based)
Outputs 1,2, and 3
(Set as Active Pass)
Outputs 1, 2, and 3
(Set as Active Fail)
NPN Outputs
Ready
(Pass) (Fail) (Pass)
(Pass)
(Fail)
(Pass)
Strobe Out
(Configure as External
& Expose Based)
Outputs 1, 2, and 3
(Set as Active Pass)
Outputs 1, 2, and 3
(Set as Active Fail)
Function
2.3 Major Features
2.3.1 Demo Mode
The first time you power up the iVu TG sensor, it starts in Demo Mode. Demo Mode uses stored images and inspection parameters that
demonstrate how the sensor is set up without having to worry about focus, lighting, or triggers. In this mode, you can learn how to make
adjustments working with the three sensor types while observing how the adjustments affect the sensor results. When you exit Demo
Mode, the sensor reboots into its normal operating mode with default settings.
iVu Series Image Sensor
14 www.bannerengineering.com - tel: 763-544-3164 Rev. E

Banner iVu Series Specifications

General

Accessory Type	Vision Sensor
Sensor Type	CMOS
Resolution	640 x 480 pixels
Light Source	Integrated LED
Communication Interface	RS-232
Ingress Protection	IP67
Operating Temperature	0°C to 50°C (32°F to 122°F)
