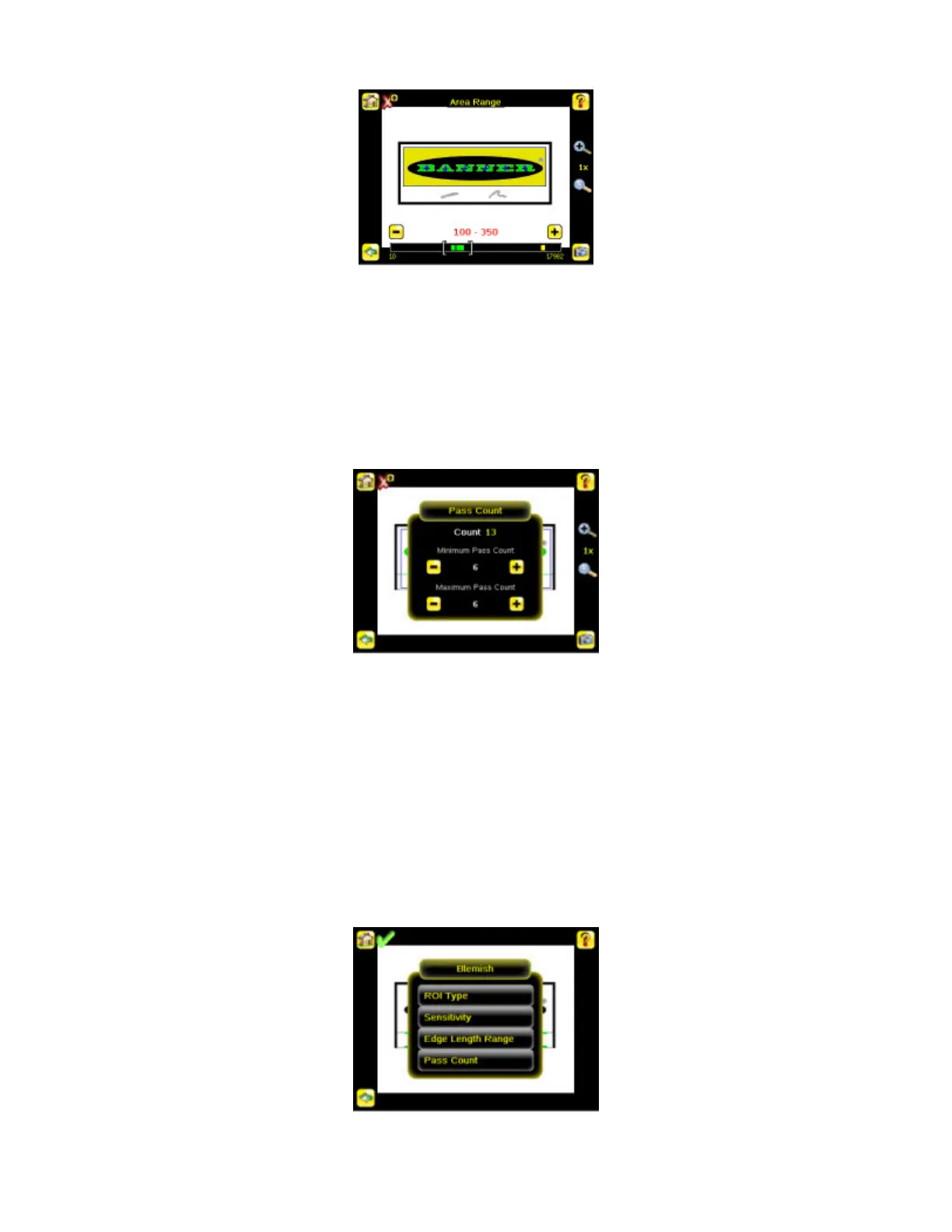

Pass Count (Area)
The Minimum Pass Count is the minimum number of parts, labels, or features expected to fall within the specified criteria; the Maximum
Pass Count is the maximum number expected to fall within the specified criteria. These settings are used to determine the pass or fail
result of the inspection.
Main Menu > Inspection > Area > Pass Count
3.4.3 Blemish
When configured as a Blemish sensor, it can be used to find flaws on a part (for example, scratches on a disc), or it can be used to make
sure the a feature exists on a part. Although verifying a feature is present on a part is more commonly an application for a sensor config-
ured as an Area sensor, a Blemish sensor may be a better option when dealing with variable materials or uneven lighting. Some sample
applications include:
• Inspections that check for scratches on a part, and reject parts where the scratches are too numerous or larger than acceptable
• Inspections that check for the presence of some label or marking on a part that may vary in color
Main Menu > Inspection > Blemish
iVu Series Image Sensor
34 www.bannerengineering.com - tel: 763-544-3164 Rev. E
