2 Overview of the Sensor
The iVu TG Image Sensor is used to monitor parts for type, size, orientation, shape, and location. No external PC is required to configure
the sensor. Instead, the sensor has a color touch screen display (either integrated with the sensor or available as a remote display) that
you can use to set up and monitor inspections. The following are features of the iVu sensor:
• Totally self-contained image sensor; no PC required
• No PC required to configure, change or monitor
• Easy configuration: install/connect iVu, select sensor type, acquire image, set inspection parameters
• Advanced capabilities: menu-driven tools guide you as you set up your inspection
• Intuitive interface and sophisticated features make powerful inspection capabilities simple
• On-board language-selectable, intuitive GUI (English, French, German, Italian, Spanish, Japanese, Traditional and Simplified Chi-
nese)
• Easy configuration: install/connect iVu, acquire image, set inspection parameters
• 68,5 mm touch-screen LCD display (320 x240 pixels)
• Robust IP67 housing with integrated lighting (red, blue, green or infrared)
• M12 connector with 10 to 30 VDC for power supply and PNP or NPN output
• External trigger input, remote TEACH input and external strobe output available
• USB port for upload and download of inspections and log files
• Software emulator for PC available to evaluate inspections offline based on bitmap images
• Compact, rugged housing available with or without a variety of integrated ring lights- red, blue, green, and infrared
2.1 Typical iVu Applications
2.1.1 Label Inspection

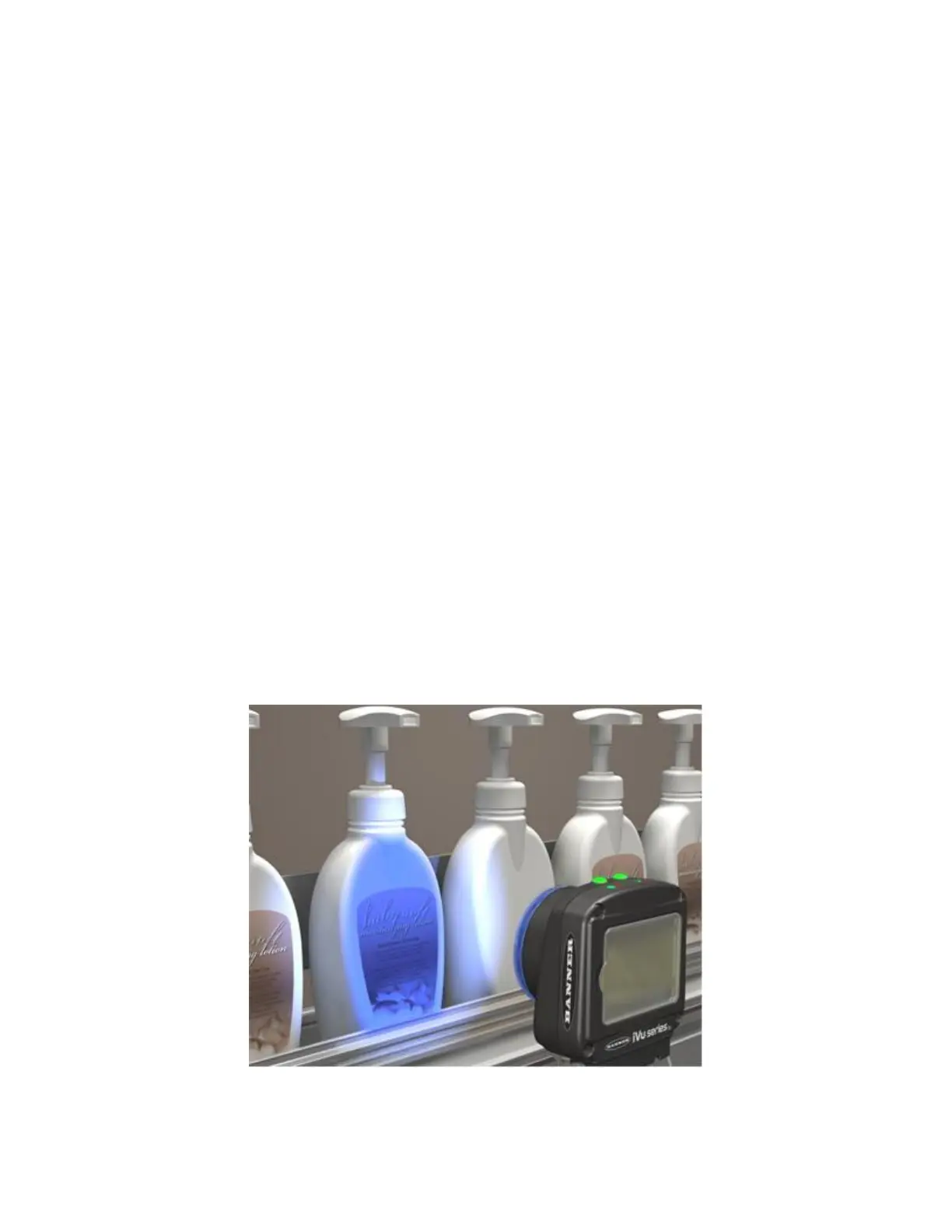

A manufacturer packages a number of products in similar packaging and needs a cost-effective way to ensure that only like products are
packaged together. Additionally, they want to verify that all the products have labels.
iVu Series Image Sensor
