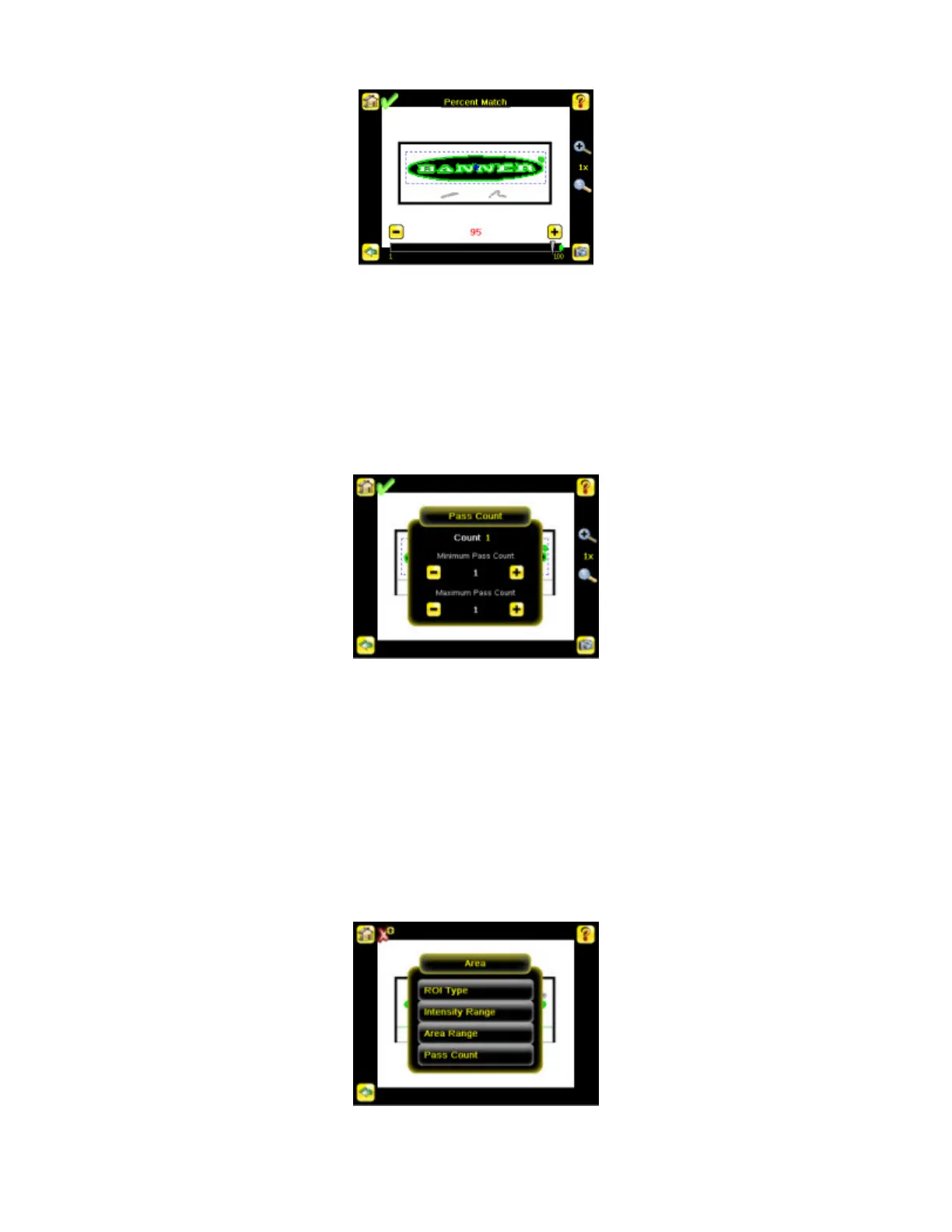

Pass Count (Match)
The Minimum Pass Count is the minimum number of parts, labels, or features expected to fall within the specified criteria; the Maximum
Pass Count is the maximum number expected to fall within the specified criteria. These settings are used to determine the pass or fail
result of the inspection.
Main Menu > Inspection > Match > Pass Count
3.4.2 Area
When configured as an Area sensor, the sensor is used to ensure that one or more features of interest are present on a part. To config-
ure as an Area sensor, set three parameters:
• Intensity Range (range of gray scale values) of a feature of interest
• Area Range, or size, of a feature of interest
• Pass Count
Main Menu > Inspection > Area
iVu Series Image Sensor
32 www.bannerengineering.com - tel: 763-544-3164 Rev. E
